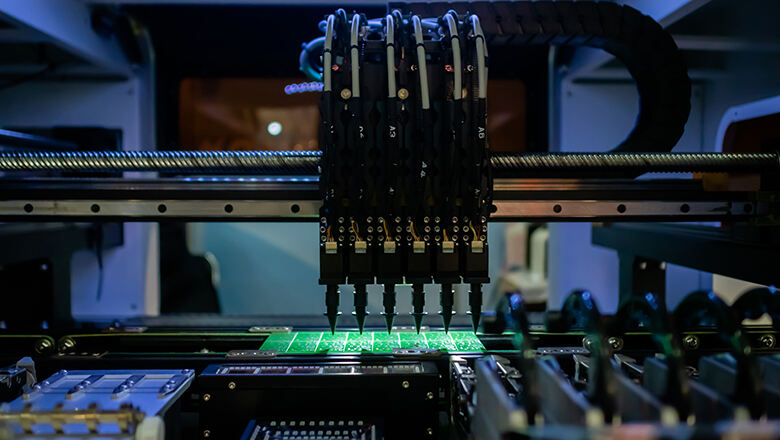

What is the difference between SMT and SMD?

Introduction

The electronics industry is continuously evolving towards miniaturization, automation, and high performance. In the field of modern electronics manufacturing, there are two core topics in production processes: SMT (Surface Mount Technology) and SMD (Surface Mount Device). Whether you are designing new consumer electronics, developing cutting-edge medical equipment, or delving into electronics manufacturing technology, accurately understanding the difference between SMT and SMD is absolutely crucial. This article will provide an in-depth analysis of these two key technical terms, helping you understand how their synergistic role has made them indispensable processes in modern electronics manufacturing.

Why the Difference Between SMT and SMD Matters

A clear grasp of the differences between SMT and SMD makes the entire production process more efficient, cost-effective, and reliable. Confusing these terms can result in costly procurement mistakes, design errors, or poor communication between engineers, management, and manufacturers.

We’ll explore how SMT is the process used in electronics manufacturing, while SMD refers to the electronic components that are mounted using that process, and go much deeper—providing tips, real-world examples, and practical tables along the way.

The World of Electronics: Evolution from THT to SMT and SMD

To grasp the core differences between SMT and SMD, we must first understand the evolution of the electronics manufacturing landscape over recent decades.

Through-Hole Technology (THT): The Starting Point

Through-Hole Technology (THT) was once the standard process in the electronics manufacturing industry. This technique involves inserting component leads into pre-drilled holes on a printed circuit board (PCB) and then soldering them to pads on the opposite side of the board. Its key characteristics include:

• Component Size: THT components are generally larger in volume.
• Mechanical Strength: Provides robust connections, making it suitable for large or high-power components.
• Ease of Manual Assembly: Ideal for prototyping or very small-batch production.
• Technical Limitations: Hinders the development of miniaturization, automation, and high-density design.

The Rise of SMT and SMD Technology

As calculators and consumer electronics evolved toward miniaturization, the industry required an assembly process that could mount electronic components directly onto the surface of PCBs. This led to the widespread adoption of Surface Mount Technology (SMT) and the development of Surface Mount Devices (SMDs).

SMT has transformed the electronics industry through the following advancements:

• Enabling direct mounting of electronic components onto PCB surfaces
• Supporting smaller component sizes
• Facilitating automated production via high-speed placement machines
• Achieving cost-effective, high-volume PCB assembly

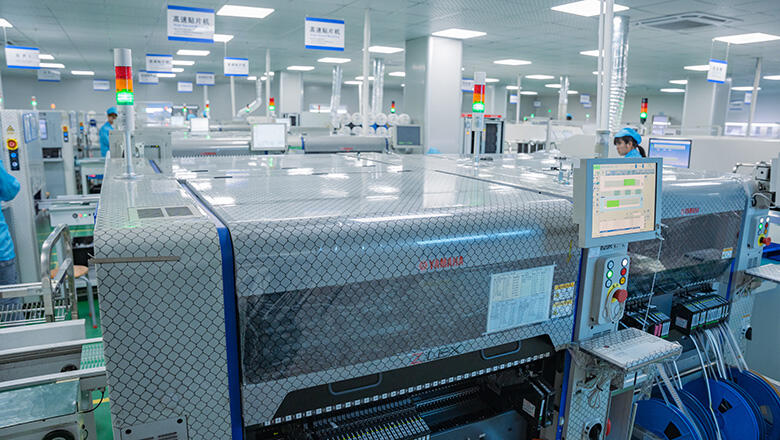

What Is SMT? Understanding Surface Mount Technology

SMT Refers to the Manufacturing Process

Surface Mount Technology (SMT) is a manufacturing process that enables rapid and direct mounting of electronic components onto printed circuit boards, replacing traditional through-hole technology. This technology achieves higher component density, creates more compact and lightweight products, and significantly improves production speed.

SMT Technology Overview:

• SMT Process Characteristics: Enables direct component mounting onto PCB surfaces
• SMT Equipment Composition: Includes high-speed solder paste printers, pick-and-place machines, reflow soldering ovens, and automated inspection systems
• SMT Technical Advantages: Offers higher board density, fully automated production, and excellent scalability compared to through-hole technology

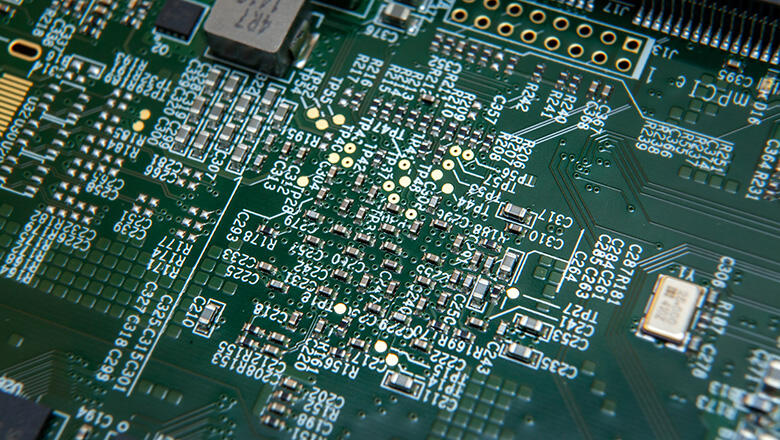

SMT Allows for a Higher Density of Components

By reducing reliance on drilling, SMT production can use both sides of the PCB, enabling designers to fit more functionality into a smaller space.

SMT Process Flow

Surface Mount Technology (SMT) process flow: specialized, rapid, and highly automated steps.

• Solder Paste Printing: Solder paste is applied to the PCB pads using a customized stencil.
• Component Placement: High-speed smt machines (pick-and-place) precisely place SMDs on the solder-pasted pads.
• Reflow Soldering: Boards travel through a controlled oven where the solder paste melts, creating strong, reliable joints.
• Automated Optical Inspection (AOI): An SMT instrument scans for defects such as tombstoning, missing components, or poor alignments.
• Functional & In-circuit Testing: Ensures every circuit performs to specification.

When SMT is the Best Choice

• Consumer electronics (phones, tablets, wearables).
• Industrial control and power management (where high-density, high-reliability circuitry is critical).
• Automotive, aerospace, and medical devices (where lightweight, reliable boards using smt are essential).

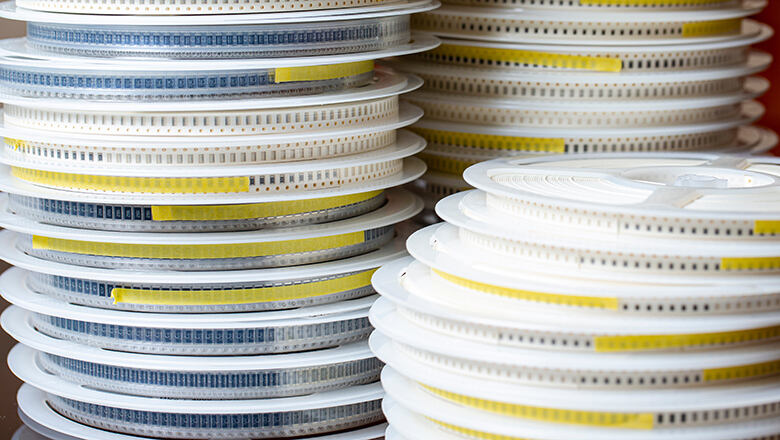

What Is SMD? Exploring Surface Mount Devices

SMD Refers to the Electronic Components

Surface Mount Devices (SMD) are electronic components specifically designed for surface mounting onto printed circuit boards. Unlike through-hole components with long wire leads, SMDs feature a compact design with significantly smaller dimensions. This innovative design makes them crucial elements in driving the trends of miniaturization and enhanced efficiency in the electronics industry.

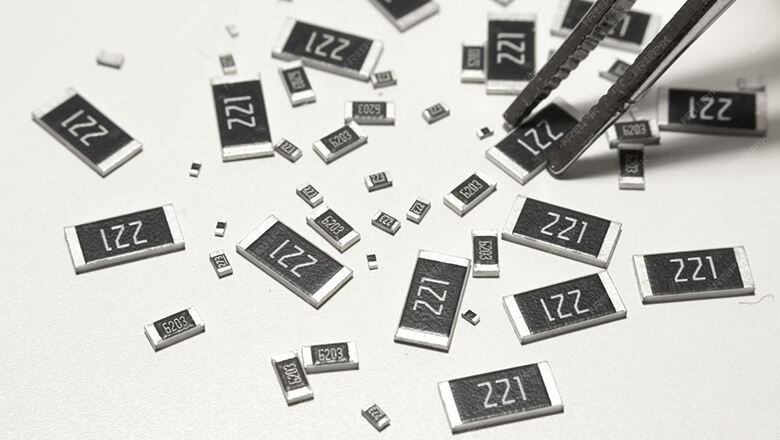

Size of SMD Components

The size of SMD components allows for much higher circuit density. Typical designations include 0402, 0603, and 0805 (these refer to the dimensions in inches or millimeters).

SMD: The Standard Component Used in SMT

SMDs come in almost every type of electronic component:

• SMD Resistors and Capacitors (including smd ceramic capacitors).
• Inductors, Diodes, Transistors.
• LEDs, Oscillators, Crystals.
• Integrated Circuits (ICs): SOP, QFP, QFN, BGA.

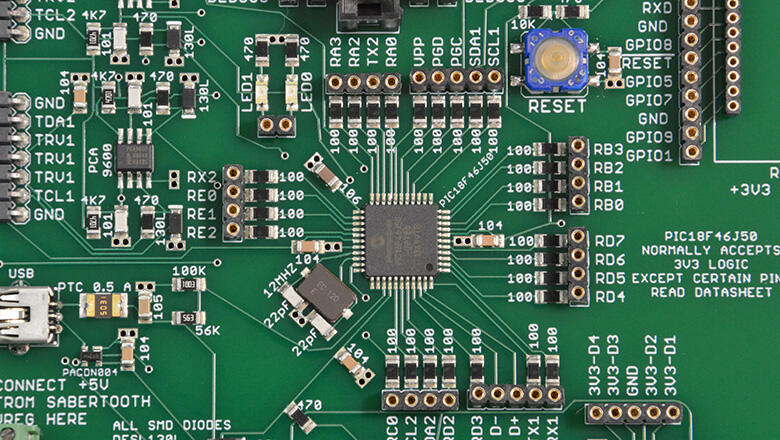

Key Differences Between SMT and SMD

To understand the difference between SMT and SMD, clear and professional definitions and analysis are required from the perspective of design and manufacturing.

SMT vs SMD: Definitions and Usage

• SMT (Surface Mount Technology)： refers to the process or technique of mounting electronic components directly onto the surface of a printed circuit board.
• SMD (Surface Mount Device)： SMD represents the type of components used, while SMT constitutes the implemented process or technology.
• SMD on an SMT line are placed and soldered through automated, high-speed machinery.

SMD vs SMT: The Clear Distinction

Key Differences Between SMT

SMT (Surface Mount Technology) refers to the manufacturing process and rapid, efficient assembly method; SMD (Surface Mount Device) denotes the components mounted using this process.

SMT technology enables direct mounting of electronic components onto PCBs, while SMDs are the electronic components that can be directly mounted onto PCB surfaces.

SMT technology facilitates the widespread application of SMD electronic components across consumer electronics, military, medical, automotive, and industrial equipment sectors.

SMD technology primarily involves component types and packaging specifications, whereas SMT technology encompasses assembly processes, production equipment, and its technical advantages.

Why Does This Matter?

• When finalizing a PCB assembly project plan, failure to understand the concepts of SMT and SMD may lead to errors in the Bill of Materials (BOM), miscommunication with SMT manufacturers, or procurement of incorrect components.
• A precise and professional understanding of the distinction between SMT and SMD ensures effective communication in the electronics manufacturing process and guarantees project quality assurance.

SMT Process Flow and SMT Equipment

Mounting Electronic Components Directly Onto the PCB

The Surface Mount Technology (SMT) process flow is a precisely designed standardized production procedure that requires specialized SMT equipment and highly engineered materials to be implemented collaboratively.

Step-by-Step SMT Process

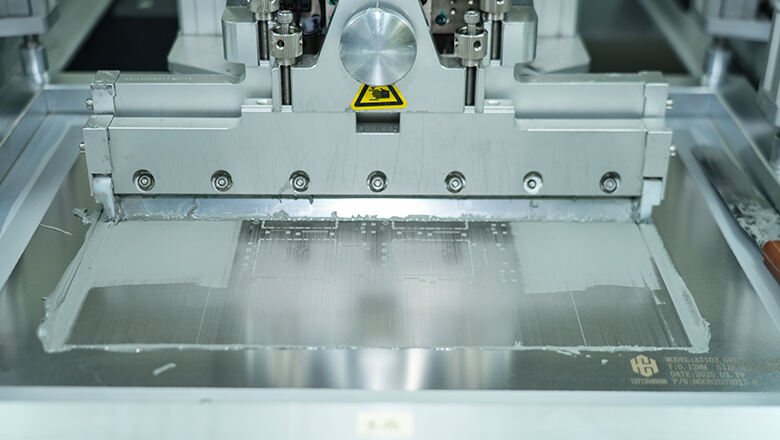

1.Solder Paste Application:

• Solder paste is applied to PCB pads through a metal stencil precisely aligned with the circuit board using specialized equipment.
• Technical Tip: The stencil thickness and aperture design must be manufactured according to specification documents and match the dimensions of SMD components to ensure complete solder paste coverage over the entire pad.

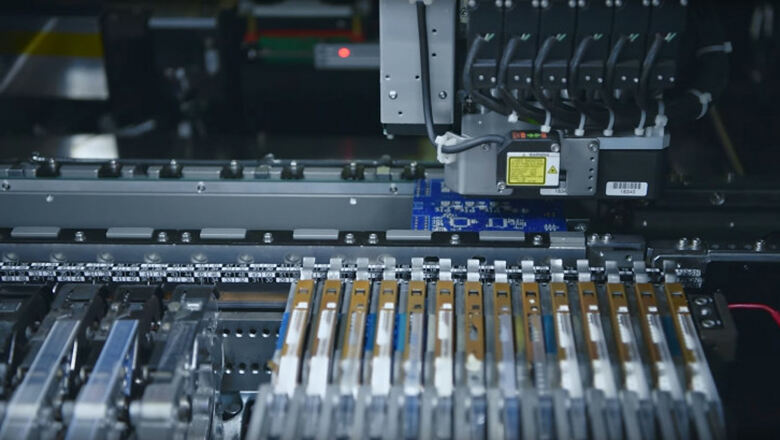

2.Component Placement:

• Pick-and-place machines rapidly and precisely mount SMD components onto the solder-pasted pads of the PCB. The components are supplied from reels or trays specifically optimized for automated processes.
• SMT equipment is equipped with high-precision cameras that accurately align each SMD component prior to placement.

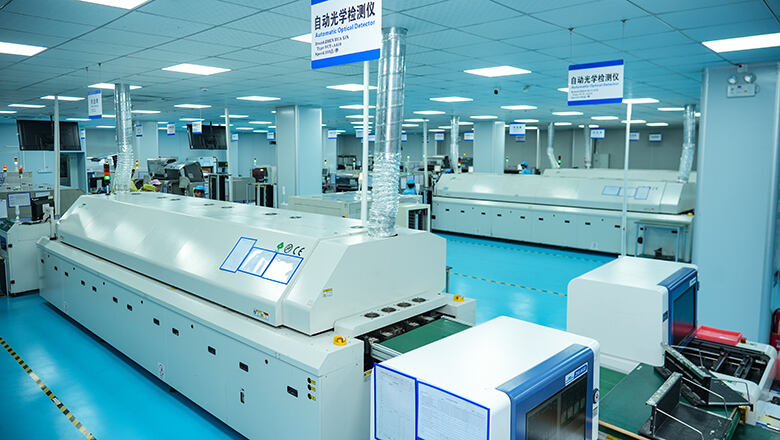

3.Reflow Soldering:

• The assembled PCB passes through a temperature-controlled reflow oven, where the solder paste melts upon heating and solidifies during cooling, creating permanent connections between components and pads.

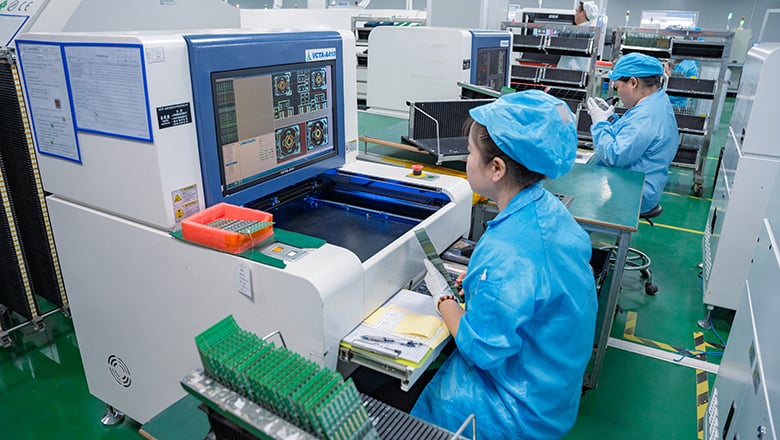

4.Inspection and Testing:

• Automated Optical Inspection (AOI) systems examine component placement accuracy, short circuits, or missing components for defects.
• X-ray inspection can be utilized for specialized package components (particularly leadless packages such as BGA).
• In-circuit testing and functional testing are employed to validate product performance.

SMT Equipment Overview

• Stencil Printer: Enables rapid and precise solder paste application.
• Pick-and-Place Machine: Achieves high-speed, accurate component placement.
• Reflow Oven: Precisely controls thermal profiles to ensure soldering reliability.
• AOI/SPI: Guarantees process control and product defect prevention.

SMT Instrument and Monitoring

Professional production lines utilize advanced SMT inspection equipment and Manufacturing Execution System software for real-time monitoring, tracking progress across each production department while maintaining quality control and yield rates, ensuring circuit boards manufactured with SMT technology comply with the industry's highest standards.

Applications of SMT in the Electronics Industry

SMT technology has become the foundation for the electronics manufacturing sector, with widespread adoption in nearly all product categories. SMD and SMT are central to:

Key Applications of SMT

• Consumer Electronics:
  • Smartphones, tablets, cameras, wearables, and IoT devices. The smaller component size of SMDs enables thinner, lighter gadgets with more features.
• Automotive Controls:
  • Engine control modules, safety systems (airbags), infotainment units—using HDI PCB and robust, vibration-resistant SMT components.
• Medical Devices:
  • Pacemakers, diagnostic sensors, portable monitors—all demand small, highly reliable surface mount devices and state-of-the-art SMT process control.
• Industrial Automation:
  • PLCs, motor controllers, relays, and RF modules for wireless setups.
• Aerospace/Military:
  • Lightweight, high-reliability SMT PCBs in navigation, controls, and satellite systems.

SMT Offers Several Advantages in Applications

• Better use of PCB real estate.
• Enhanced reliability from automated process control.
• Design flexibility (smaller, thinner, double-sided boards).
• Improved thermo-mechanical properties (for products exposed to vibration or temperature cycling).

SMD and SMT: The Synergy in Modern PCB Assembly

In modern electronics manufacturing, SMD and SMT work hand-in-hand—one doesn’t reach its full potential without the other.

Why SMDs and SMT Are Used Together

• SMDs can be placed with precision using SMT equipment.
• SMT allows for a higher density of components than ever before.
• The use of SMT means component leads are shorter, signal paths are direct, and the risk of EMI is reduced.

SMT vs THT: A Comparative Analysis

“SMT vs THT” is a classic comparison in the realm of electronics manufacturing.

Surface Mount Technology (SMT)

• Components are mounted directly onto the PCB surface.
• Automated, fast, cost-effective for medium to high-volume runs.
• Enables double-sided population and increased design density.

Through-Hole Technology (THT)

• Components have leads passed through holes in the PCB and soldered on the opposite side.
• More robust mechanical connection—valuable for connectors, power, or high-stress parts.
• Manual or semi-automatic assembly, slower, less suited for high-density circuits.

Comparison Table: SMT vs THT

Design, Sourcing, and Handling Tips for SMD and SMT Components

Design Tips for Boards Using SMT

• Opt for standard SMD package sizes for procurement and assembly ease.
• Allow for thermal management—large ground pads or thermal vias for QFN/BGA packages.
• Keep critical signal paths short to benefit from the low-parasitic nature of surface mount components.

Sourcing Advice

• Always check the availability and lifecycle status of SMD part numbers; consider second sources for key SMDs.
• Pay attention to tape-and-reel packaging for automated SMT lines.

Handling and Storage

• Store SMD components in moisture-controlled environments (per MSL guidelines) to prevent reflow defects like popcorning.
• Use ESD-safe trays and grounding protocols when handling sensitive SMD technology.

Common Mistakes to Avoid

• Using SMD sizes (01005, 0201) that are too small for your assembler’s capability.
• Inconsistent pad design for different SMD values (can cause tombstoning during reflow).
• Overlooking lead finish compatibility between SMD terminations and solder paste.

Common Mistakes and Best Practices with SMT and SMD

Common Mistakes in SMT and SMD Use

1.Mixing Through-Hole and Surface Mount Without Clear Planning Combining through-hole components with SMD and SMT on the same printed circuit board can increase assembly complexity, slow down production (since two assembly lines or manual intervention are needed), and raise costs. If through-hole parts are required (for example, connectors or large power inductors), group these on one side or in a dedicated board area to streamline the smt process flow.

2.Incorrect or Inconsistent Pad Design Matching the pad size to the actual size of SMD components is critical. Poor pad design can cause soldering defects such as tombstoning or cold joints. Use IPC-7351 standards as a guideline and always confirm your land pattern with smt equipment capabilities.

3.Over-Reliance on Uncommon SMD Package Types Some designers specify exotic or rare surface mount devices, which can restrict sourcing, delay production, and cause problems if the smd technology becomes obsolete. Stick with commonly available components unless there’s a compelling reason otherwise.

4.Neglecting Solder Paste Selection Compatibility between solder alloy, paste, and SMD lead finish is crucial. Different SMD smt chip technology may require silver or gold-finished pads; always check recommendations from the SMD and solder paste manufacturers.

5.Lack of Moisture and ESD Controls Small and sensitive SMD electronics, especially BGAs and tiny SMD capacitors, must be stored and handled per their moisture sensitivity level (MSL) and ESD ratings. Inadequate precautions can damage components during the smt production process.

Best Practices for SMD and SMT in the Electronics Industry

• Early DFM Consultation Engage with your chosen electronics manufacturing or pcb assembly partner during the schematic/layout phase, not after the board is finalized.
• Clear Markings and Orientation Ensure SMD polarity marks (for diodes, ICs) are visible and correctly oriented; this speeds up both placement and automated optical inspection.
• Fiducials and Panelization Always include global/local fiducial marks and proper panelization for efficient smt machine operation.
• DFT (Design for Test) Add test points and isolation features so that the assembled pcb can be electrically tested after SMD/SMD placement.
• Thorough Documentation Provide your pcb assembly house with full BOMs, assembly drawings, package references, and process guidelines.

Advanced Applications and Recent Trends in SMT and SMD Technology

The Push Toward Even Smaller SMDs

• Manufacturers are pushing the boundaries with ultra-small SMDs (01005, 008004). These tiny SMD parts allow for unprecedented miniaturization in consumer electronics, medical implants, and wearable devices—though they require highly specialized smt machines and inspection tools.
• SMD ceramic capacitors continue to shrink while offering higher capacitance and voltage ratings, supporting applications previously left to larger through-hole or hybrid packages.

Innovations in SMT Process Flow

• 3D AOI and X-ray Inspection: New SMT equipment uses 3D imaging and AXI (Automated X-ray Inspection), vital for verifying BGA and LGA solder joints invisible to traditional AOI.
• Inline Functional Testing: Integrated test steps now allow real-time performance validation while the PCB moves through SMT lines, catching functional errors before boards ever reach final test benches.

SMD SMT Chip Technology in High-Reliability Sectors

• Automotive, aerospace, and defense PCBs now rely on high-reliability surface mount devices that pass rigorous thermal cycling, vibration, and radiation testing—enabled only by the precision and repeatability of modern smt process technology.

Hybrid and Exotic PCBs

• Some advanced designs combine SMDs using SMT on ceramic substrates or flex-rigid PCBs for extreme environments or creative new consumer electronics designs.
• Innovations in solder alloys and solder paste chemistry have improved connection quality, even as SMD and SMT pitch decreases.

SMT Offers Several Advantages for Mass Customization

• SMT process allows for quick changeovers, enabling custom variations with minimal downtime—essential for IoT and consumer electronics companies offering personalized products.

Frequently Asked Questions About SMT and SMD

Q: What is the difference between SMT and SMD for a PCB designer?

A: SMT refers to the surface mount technology—the process and the required equipment—used to mount components. SMD refers to the component used itself; you select SMDs for your BOM, which will be mounted using SMT.

Q: What are some key differences between SMT components and traditional through-hole components?

A: SMT components are smaller, lack long leads, and are mounted directly onto the PCB surface. Through-hole parts need drilled holes and have leads that go through the board—making them easier for hand-assembly but limiting automation and board density.

Q: Can you hand-solder SMDs, or must they be assembled with SMT machines?

A: Larger SMDs can be hand-soldered for prototyping or repair. However, for small, fine-pitch, or high-density assemblies, SMT machines and reflow soldering are required.

Q: What are typical applications of smt and smd?

A: Virtually all modern devices: smartphones, laptops, routers, automotive ECUs, industrial PLCs, implantable medical devices, RF and sensor modules—the possibilities are limited only by design creativity.

Q: What is an “SMT equivalent”?

A: Many manufacturers offer both through-hole and SMD versions of classic electronic components. The "SMT equivalent" is the version optimized for automated, surface-mount assembly.

Q: Why do some high-reliability products still include through-hole technology?

A: For mechanical strength in connectors, transformers, or high-current connections, THT parts remain unmatched. However, active and passive chips increasingly move to SMD smt chip technology for efficiency.

Conclusion

In today’s electronics industry, the difference between SMT and SMD is more than semantics—it’s the foundation for cost-effective, high-density, and reliable electronics manufacturing.

• SMT is the manufacturing process—an essential technology in the electronics industry for mounting electronic components directly onto the surface of a PCB using highly automated equipment.
• SMD is the component—the physical electronic parts (resistors, capacitors, ICs, etc.) engineered for mounting via SMT.

Key differences between SMT and SMD can make or break a project’s timeline, cost, and reliability. SMT technology and its related smt process flow have revolutionized the realm of electronics by offering a higher density, faster production, and superior reliability over traditional THT/through-hole technology.

Without SMT, today’s advanced devices—wearables, phones, cars, satellites—simply wouldn’t exist in their current form. Understanding SMT vs SMD, and how to leverage both, is fundamental for any successful venture in electronics, PCB assembly, or electronic component design.
