PCB vs PCBA: Key Differences in Electronics Circuit Board Assembly

Introduction: Why Understanding PCB vs PCBA is Essential in Electronics

In the dynamic world of the electronics industry, the difference between PCB and PCBA is both fundamental and often misunderstood. Although these terms are sometimes used interchangeably in the field of electronics, there is a key difference between PCB and PCBA that affects every stage of the electronic manufacturing process

PCB or printed circuit board is a blank circuit board that is almost the backbone of all modern electronic devices.

PCBA or printed circuit board component refers to a complete circuit board filled with semiconductors, resistors, capacitors, and connectors, making it a fully functional unit.

Understanding PCBs: The Foundation of Circuit Boards

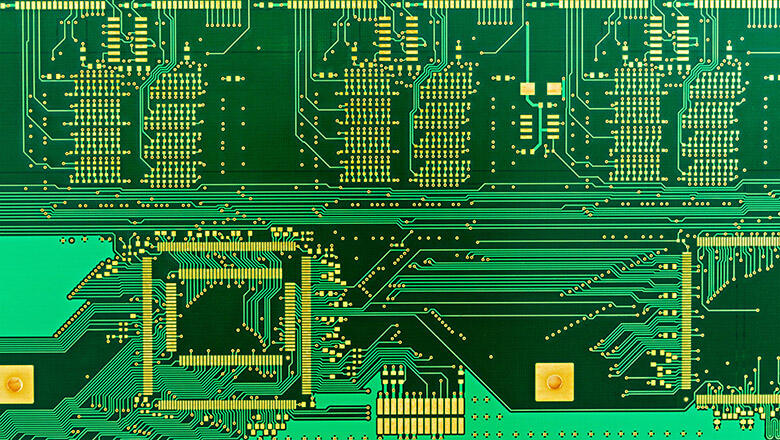

What Is a PCB?

A PCB (Printed Circuit Board) is a flat board made of insulating material, usually fiberglass-reinforced epoxy (FR-4), sometimes with advanced ceramic or flexible polymers. The PCB is designed with a pattern of copper traces that connect various points, allowing for complex circuit routing on a compact footprint. This enables the dense integration found in smartphones, computers, automotive ECUs, and thousands of other electronic products.

A PCB is a blank circuit board—the “bare PCB” or “blank PCB”—with no electronic components attached.

PCB Pads, Vias, and Traces

• PCB pads are small areas of exposed copper designed to receive solder and connect each component lead.
• Vias are plated holes that create electrical connections between layers, enabling complex 3D signal routing on a multi-layer PCB.
• Traces are the copper “roads” that carry electricity—a key part of any quality PCB.

Types of PCB: From Single-Layer to Multi-Layer

The functionality and complexity of your circuit boards depend on the type of PCB you choose. Here’s a quick overview:

Common PCB Materials and Structure

The typical PCB board is a flat board made of insulating material (FR-4), with copper foil laminated to one or both sides of the board. Key layers include:

• Substrate: The board made of insulating material; defines rigidity.
• Copper Layer: Forms the circuit patterns.
• Solder Mask: Colored protective layer (usually green) that prevents shorts and bridges during assembly.
• Silkscreen: Markings for component identification and orientation.

Other advanced PCB materials include ceramic (for high-frequency RF), aluminum (for power/LED), and polytetrafluoroethylene (PTFE) for microwave circuits.

The PCB Manufacturing Process

The pcb manufacturing process is a precise sequence involving:

• Design & Gerber File Generation: Engineers create the circuit layout using EDA tools, exporting Gerber files for production.
• Panelization: Multiple boards laid out on a sheet for efficient throughput (especially for small, low-cost PCB runs).
• Copper Cladding & Etching: Laminate is coated with copper, with unwanted copper chemically etched away.
• Drilling and Via Plating: Holes and vias are drilled for interconnects; holes are plated to ensure reliable circuit continuity.
• Solder Mask & Silkscreen: Solder mask protects traces, and silkscreen provides clear labeling.
• Surface Finish: (ENIG, HASL, OSP, etc.) enhances solderability.
• Electrical Testing: Every circuit is tested for opens/shorts.
• Blank PCB Inspection: Visual and optical checks for quality.

PCBA Explained: Turning a Blank PCB Into a Fully Assembled Circuit Board

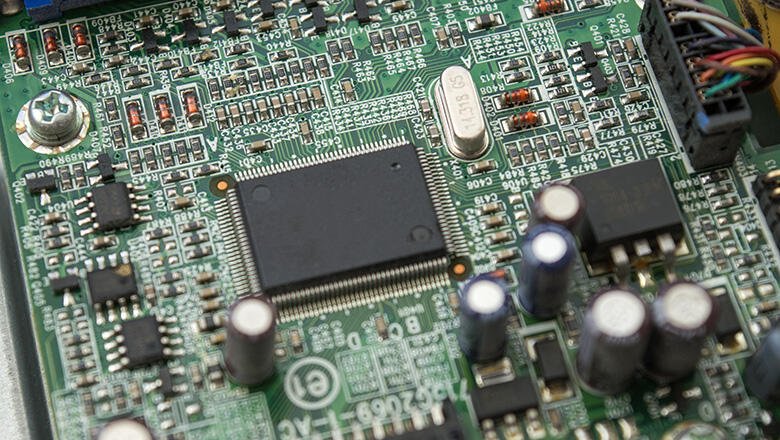

What is PCBA?

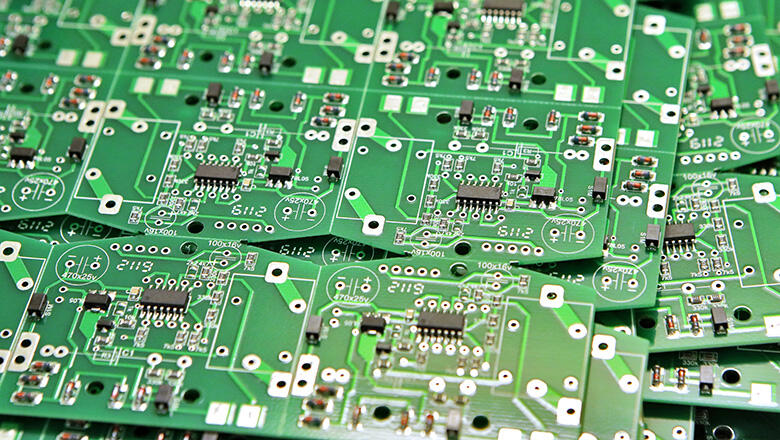

PCBA (Printed Circuit Board Assembly) is the result of installing and soldering all required components onto a PCB. When electronic components such as resistors, capacitors, chips, ICs, connectors, etc. are placed on a circuit board according to design and firmly connected using specialized soldering methods, the blank circuit board becomes a complete PCB component.

Actually, PCBA refers to a fully assembled PCB that can be integrated into equipment or products. PCB is a bare circuit, while PCBA is a complete, tested, and fully functional circuit board. PCBA is a complete electronic solution, ensuring that PCBA is manufactured according to strict standards is crucial for every electronic manufacturing process.

Understanding the Difference: PCB vs PCBA

• The relationship between PCB and PCBA is fundamental: the bare PCB is prepared first, and only after assembly does it become a fully assembled PCBA.
• PCB and PCBA is essential knowledge for minimizing cost, choosing the right service, and ensuring a successful final product.
• PCBA may include any number of components on the board, attached to one or both sides of the PCB depending on the design.

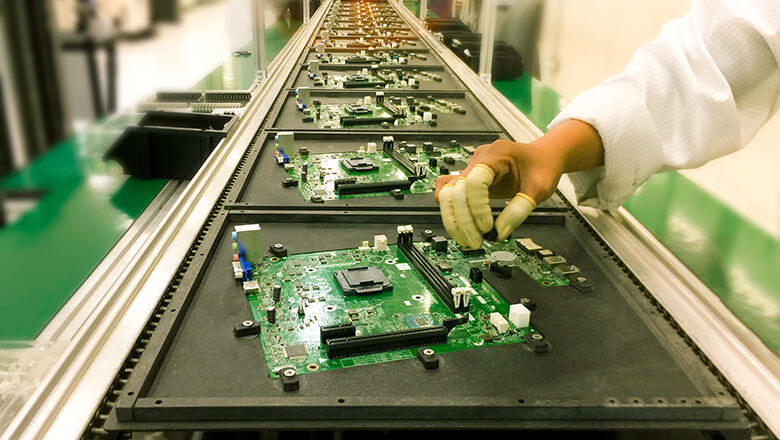

PCBA Manufacturing Process: From Bare PCB to Circuit Card Assembly

The PCBA manufacturing process involves multiple steps of strict control, designed to ensure the highest reliability in the final product. This process is at the core of electronic manufacturing is key to transforming bare PCBs into fully functional, ready-to-use components.

Steps in the PCBA Manufacturing Process:

Solder Paste Printing: Solder paste (a mixture of fine solder powder and flux) is applied to PCB pads where components will be mounted. This enables reliable connections during reflow soldering.

Component Placement: Advanced pick-and-place machines populate components onto the PCB—placing ICs, SMD resistors, capacitors, and other electronics onto the bare circuit board with high-speed, high-accuracy.

Reflow Soldering: After placement, the assembly is heated in a controlled oven. The solder paste melts, forming permanent electrical connections between the components and PCB pads.

Through-Hole Component Insertion (when required): For DIP packages or larger parts, components are inserted into pre-drilled holes at the bottom or top of the board and soldered using wave soldering.

Inspection & Quality Control: Automated Optical Inspection (AOI), X-ray (for BGAs), and manual inspections catch misplaced, misoriented, or unsoldered parts.

In-Circuit Test (ICT) & Functional Test: Advanced PCBA manufacturing includes in-circuit or functional testing to confirm that the complete PCB assembly performs as designed.

Final QA & Packaging: Each fully assembled PCBA is cleaned, visually inspected, and packed in protective, anti-static packaging to prevent ESD (electrostatic discharge) damage before shipping.

Assembly Methods: SMT, THT, and Mixed Technology

PCBA manufacturing utilizes several assembly technologies:

SMT (Surface Mount Technology): Components are mounted directly onto the sides of the PCB using solder paste and reflow soldering. This method dominates modern electronics, enabling high-density, low-cost PCB production.

THT (Through-Hole Technology): Parts with wire leads are inserted through holes in the circuit board and soldered, typically for connectors, relays, or components needing mechanical strength.

Mixed Assembly: Many multi-layer PCB and complex electronics use both methods, leveraging the flexibility of SMT and the robustness of THT.

Testing, Inspection, and Quality in PCBA Manufacturing

• After assembly, each PCBA must pass multiple tests: AOI (detects placement/solder issues), ICT, flying probe test, and environmental stress screening.
• Aging Test: The PCBA may be powered up for hours or days, sometimes under heat or cold, to catch early failures.
• Final PCB assemblies are only shipped if they pass these stringent checks.

PCB vs PCBA: Key Differences and the Relationship Between PCB and PCBA

The difference between PCB and PCBA, especially the key difference between PCB and PCBA, understanding the related matters, this behavior is very beneficial to every who is related to the electronic industry.

Detailed Table: Key Differences Between PCB and PCBA

PCB and PCBA Are Sometimes Used Interchangeably—Why It Matters

In this industry, the two industry terms PCB and PCBA are often confused, especially among newcomers, so understanding the difference between PCB and PCBA is high-yielding and necessary thing.

• Ordering the wrong item (bare PCB when you wanted a complete PCBA) stalls development.
• Miscommunication leads to cost overruns or delays.
• Quality PCB and complete circuit board providers will always clarify your intent—are you requesting a blank circuit board or a complete assembly?

How PCBs and PCBA Are Used in the Electronics Industry

Consumer Electronics

PCBs and PCBAs are at the heart of smartphones, laptops, TVs, wearables, and smart home devices. A phone PCB holds the CPU, RAM, storage, and antennas; the PCBA—once fully assembled—powers on and connects you to the digital world.

Automotive, Medical, and Industrial Applications

• Automotive Electronics: PCBA solutions power everything from engine controllers to in-cabin infotainment.
• Medical Equipment: Multi-layer PCBA, built to rigorous standards, ensure reliability in ECG monitors and imaging.
• Industrial Controls: Complete PCB assembly featuring robust connectors and advanced PCB fabrication for harsh environments.

Emerging Trends: IoT, EV, and Advanced PCB Design

• IoT: Compact, multi-layer PCB boards with double-sided assembly drive sensor nodes and wireless products.
• Electric Vehicles (EV): High-power and control PCBA manufacturing process uses thick copper, unique substrate, and optimized thermal management.
• Smart Medical Devices: Multi-layer, flexible PCB assemblies for next-gen wearables.

Choosing the Right PCB Manufacturer or PCBA Services

PCB Assembly Services vs Bare PCB Suppliers

• Bare PCB providers: Offer low-cost PCB, quick-turn, simple RFQs (request for quotes). Suitable for hobby or early R&D.

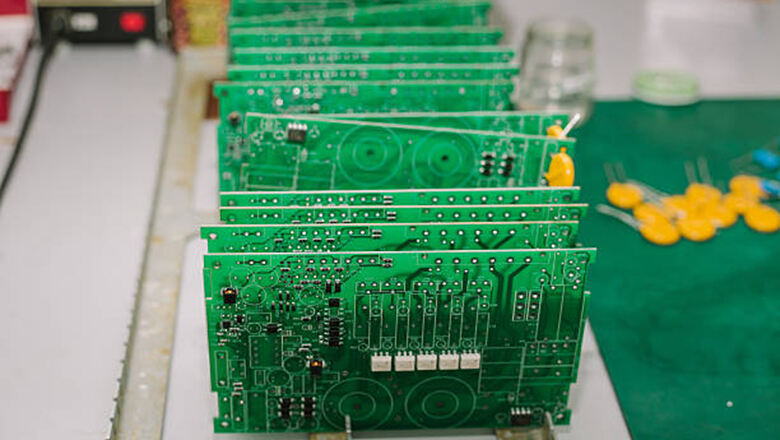

• PCBA services: Provide turnkey PCBA, managing everything from component sourcing, SMT/THT, advanced testing, to packaging and logistics.
• Turnkey PCBA means your supplier handles everything from PCB fabrication to complete circuit board delivery.

Checklist for Quality PCB and Complete Circuit Board Suppliers

• Experience: A good PCB assembly partner should have broad experience—standard PCB to multi-layer PCBA or advanced PCB.
• Certifications: Look for ISO, IPC, and RoHS compliance.
• Manufacturing capability: Can they handle your board type, complexity, and volume?
• DFM/DFA Support: Engineering review before final PCB production is critical.
• Traceability: Ensure all components on the board are genuine and traceable.
• Open Communication: Good PCBA manufacturing partners clarify every step of the assembly process.

FAQs: PCB vs PCBA, Key Differences, and Electronics Manufacturing Process

Q: What is a blank PCB?

A: A blank circuit board without components—it serves no electronic function until assembly.

Q: When should I use complete PCBA instead of a bare PCB?

A: When you want a ready-to-use, tested, reliable board—essential for production or devices shipping to customers.

Q: How do I ensure the PCBA meets quality standards?

A: Work with established PCBA manufacturing suppliers, require AOI/X-ray/ICT, and request IPC/ISO certificates.

Q: What is the relationship between PCB and PCBA?

A: The relationship between PCB and PCBA is sequential and essential. The PCB is a bare circuit board or a blank circuit board made of insulating material, serving as the platform. Only when you complete the pcb assembly process—by mounting components onto the pcb—does it become a complete circuit board, or PCBA. Thus, every PCBA is built from one pcb, but not every PCB becomes a PCBA.

Q: What determines the type of PCB I should use?

A: The type of PCB—single-layer pcb, double-layer pcb, multi-layer pcb, rigid, flexible, or rigid-flex—depends on the complexity of your circuit, your needs for compactness, durability, and the specific requirements of your application such as signal integrity or thermal management. Advanced PCB or multi-layer pcba may be needed for high-frequency or multi-functional electronics.

Q: What are the best practices for the electronics manufacturing process?

A: Always provide detailed design files (Gerber files, BOM), clarify if you want a bare pcb or a fully assembled pcba, partner with an experienced pcb manufacturer or pcb assembly services provider, and demand both testing and traceability in the pcba manufacturing process. Work closely with your supplier during the assembly process, from configuration of pcb pads to final assembly inspection.

Q: Are PCB and PCBA terms in the electronics industry sometimes used interchangeably?

A: Yes, but the distinction between pcb and pcba is essential. PCB refers to the blank, flat board made of insulating material, whereas pcba refers to a complete, functional printed circuit board assembly. Their differences have direct impact on cost, manufacturing process, and success of electronics projects.

Q: Can one PCB be used for different product lines?

A: Yes. A standard pcb or blank pcb can serve as a foundation for multiple assemblies if the pad sizes, traces, and via positions accommodate different BOMs. However, the final pcba must match the required circuit and layout for each product.

Q: What is meant by turnkey pcba?

A: Turnkey PCBA means a single provider manages everything—from pcb fabrication, sourcing components, applying solder paste, conducting the complete pcb assembly (with reflow soldering, quality controls), and shipping the fully assembled pcb directly to your door.

Conclusion: Understanding the Difference Between PCB and PCBA in Modern Electronics

PCB and PCBA are representative of the various aspects of electronic innovation in modern electronics. PCB is a bare circuit board, which is the foundation ofBA. It is a flat plate made of insulating materials and copper, and it has no electrical function of its own.

PCBA, on the other hand, is created precise assembly, where components are assembled onto the PCB, transforming a simple non-electrical board into a fully functional circuit board. As the core of the electronics industry, permeate every aspect of the electronic manufacturing process.

Strict control is required from blank circuit boards to fully assembled PCBAs. It ensures that you get the right product, optimizes cost, speed, and quality, and avoids costly errors. The relationship between PCB and PCBA is the foundation of a complete structure - one is fundamental, and the other has electronic applications.

Whether you are prototyping new IoT devices, ordering a batch of bare PCBs for internal manual assembly, or relying on advanced PCB assembly services to provide turnkey PCBA solutions, it is important to clarify the differences between PCBs and PCBAs at every stage.
