PCB Packaging Solutions: Protecting Your Circuit Boards

From production completion to delivery to the production line or customer, circuit boards require reliable protection at every stage. Our professional PCB packaging services are designed to protect against various risks during transportation and storage. From mechanical impact and static electricity to moisture and dust, we provide a reliable barrier to protect circuit boards, ensuring they remain in pristine condition.

Why is PCB packaging so important?

As precision electronic components, PCBs are fragile and sensitive to the environment: pins bend easily, surfaces are easily scratched, static electricity can damage the chip, and moisture can accelerate solder joint corrosion. Improper packaging can cause even minor damage to the circuit board, directly impacting production yield and product reliability. Proper packaging is key to ensuring zero damage to PCBs from the factory until they are ready for use.

What are the core features of our PCB packaging solutions?

Our packaging designs address the protection needs of different scenarios, encompassing multiple details:

1. Anti-static Protection: Anti-static packaging bags, trays, and transfer boxes utilize conductive materials to dissipate static electricity, preventing irreversible damage to sensitive components such as chips and capacitors caused by electrostatic discharge (ESD). This solution is particularly suitable for transporting delicate PCBs.

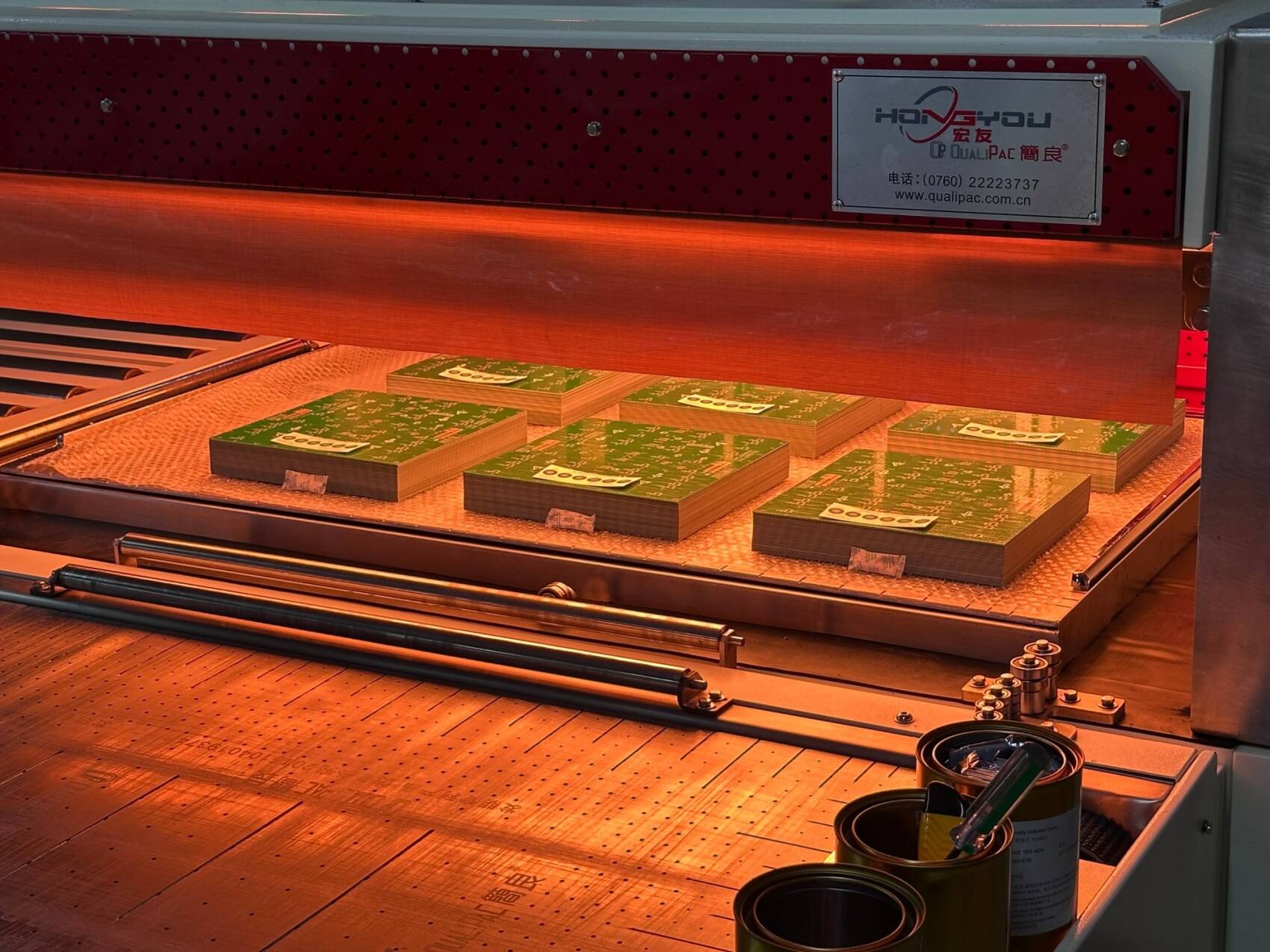

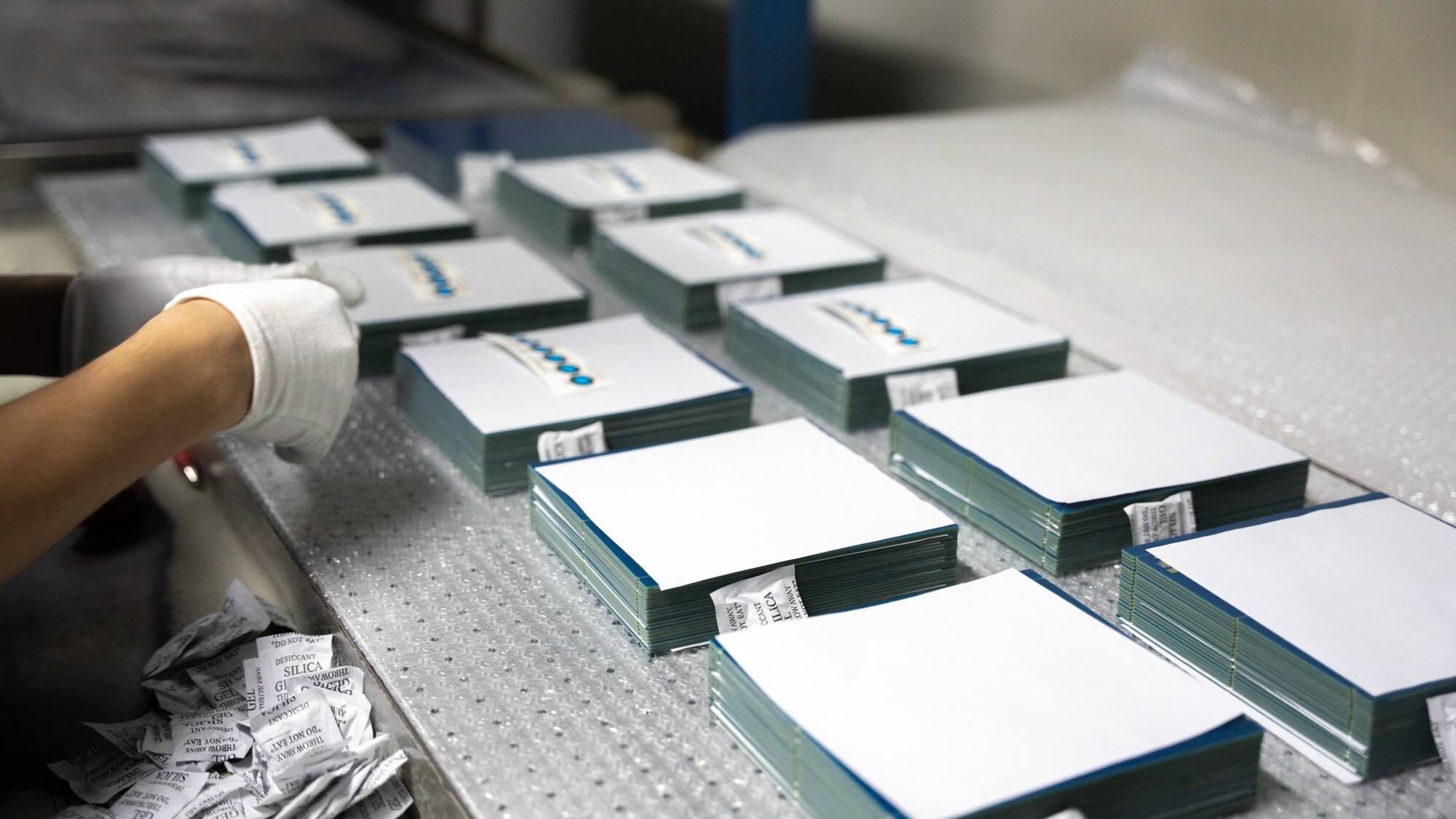

2. Moisture-Proof Design: Sealed bags with desiccant, or vacuum packaging, effectively isolate moisture from the air, reducing the risk of solder joint oxidation and copper foil corrosion. This solution is particularly suitable for high-humidity environments or long-term storage.
3. Shock Absorption: Customized foam padding, pearl cotton interlayers, or positioning slots are used to secure the PCB according to PCB size to absorb impact during bumpy transport and handling, preventing pin bending and board breakage.
4. Clean Packaging Environment: All packaging materials are processed in a dust-free workshop to ensure that the packaging bags and linings are free of oil and dust, preventing contaminants from adhering to the PCB surface and affecting subsequent soldering or use.
5. Clear traceability label: Each batch of packaging is clearly labeled with batch number, specifications, storage conditions and operating instructions to facilitate logistics tracking and warehouse management, reducing the risk of wrong shipment or misplacement.

What practical benefits can choosing our packaging services bring?

• Guaranteed product reliability: Comprehensive protection from factory to delivery ensures the appearance and performance of circuit boards are intact, laying the foundation for subsequent assembly or use.

• Reduced costs: Reduce returns and rework due to improper packaging, avoid batch scrapping caused by partial damage, and indirectly save costs.

• Compliance with industry standards: Our packaging solutions strictly adhere to IPC standards and customer-specific requirements, such as special packaging regulations for medical and automotive electronics, to ensure compliant product delivery.

• Flexible adaptation to needs: Whether shipping small PCBs in bulk or custom packaging for large boards, we can adjust our solutions based on quantity, shipping method, and storage cycle to achieve precise protection.


PCB protection starts with packaging. Choose our professional solutions to ensure every PCB arrives in optimal condition, paving the way for subsequent production or use.

For more information on packaging tailored to your needs, please contact us. We'll meticulously protect your product, ensuring quality is maintained from start to finish.
