Fr4

What is FR4?

FR4 is the most commonly used material for making printed circuit boards (PCBs). Its name "FR4" means "Flame Retardant Grade 4". This material is made of fiberglass cloth dipped in flame-retardant epoxy resin.

The "4" means that it meets specific fire safety standards and is safer to use in many places.

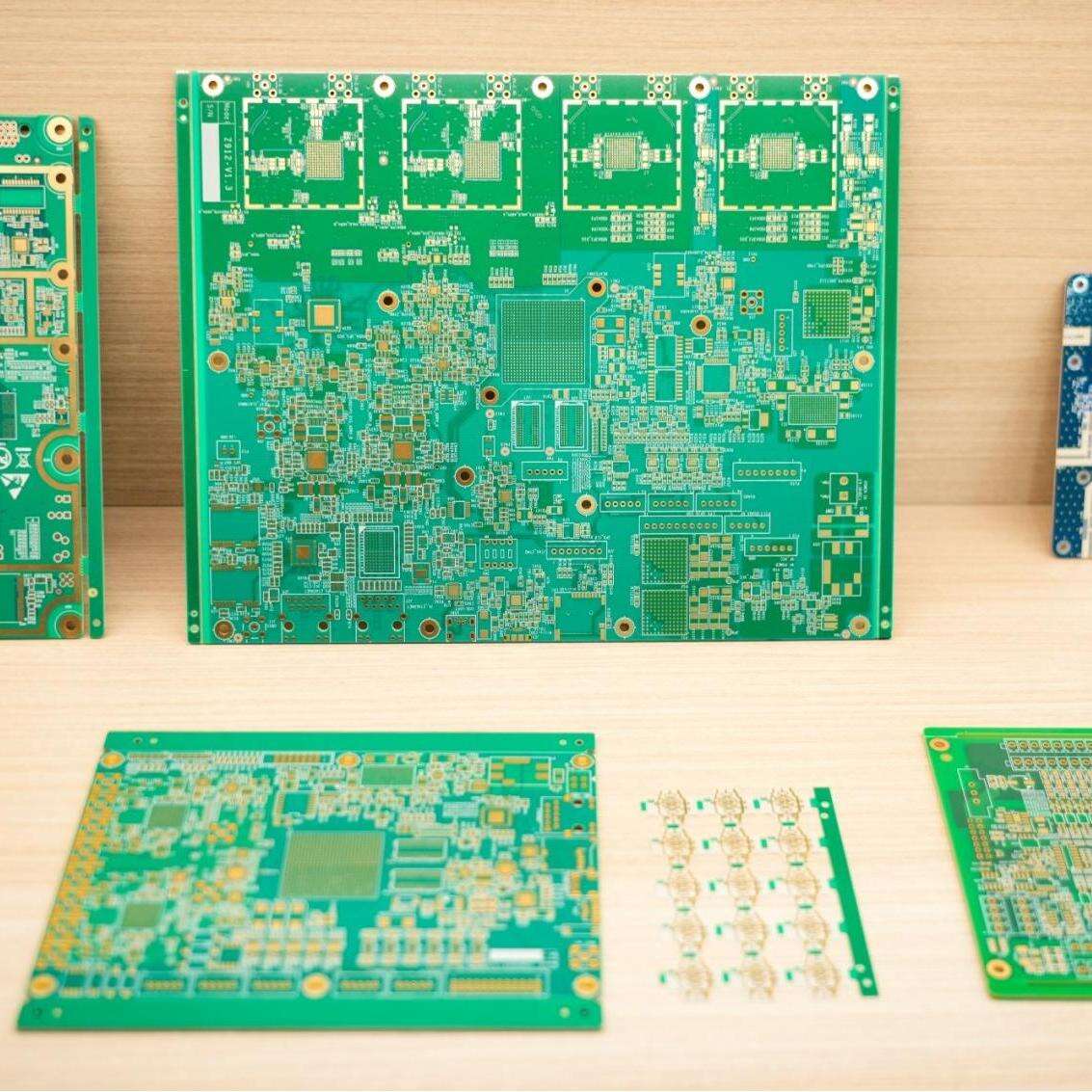

Characteristics of FR4 printed circuit boards

Good flame retardancy: The material itself is fireproof, which is very important for electronic products with high safety requirements.
Strong and durable: Not easy to be bent, damaged or deformed, suitable for use in places with vibration or impact.
Good insulation: Excellent electrical insulation performance, can prevent short circuits between circuits.
Good heat resistance: Not prone to problems during welding or high-temperature operation, longer life.
Dimensional stability: Not easy to expand and contract, can maintain accuracy, suitable for complex circuit design.
Environmentally friendly and compatible: Meets environmental protection requirements (such as RoHS), suitable for lead-free soldering.
Easy to process: Drilling, etching and other production steps are convenient and reduce costs. Global supply and reasonable price.
Flexible design: Can be used to make single-layer, double-layer or multi-layer circuit boards to meet different product needs.

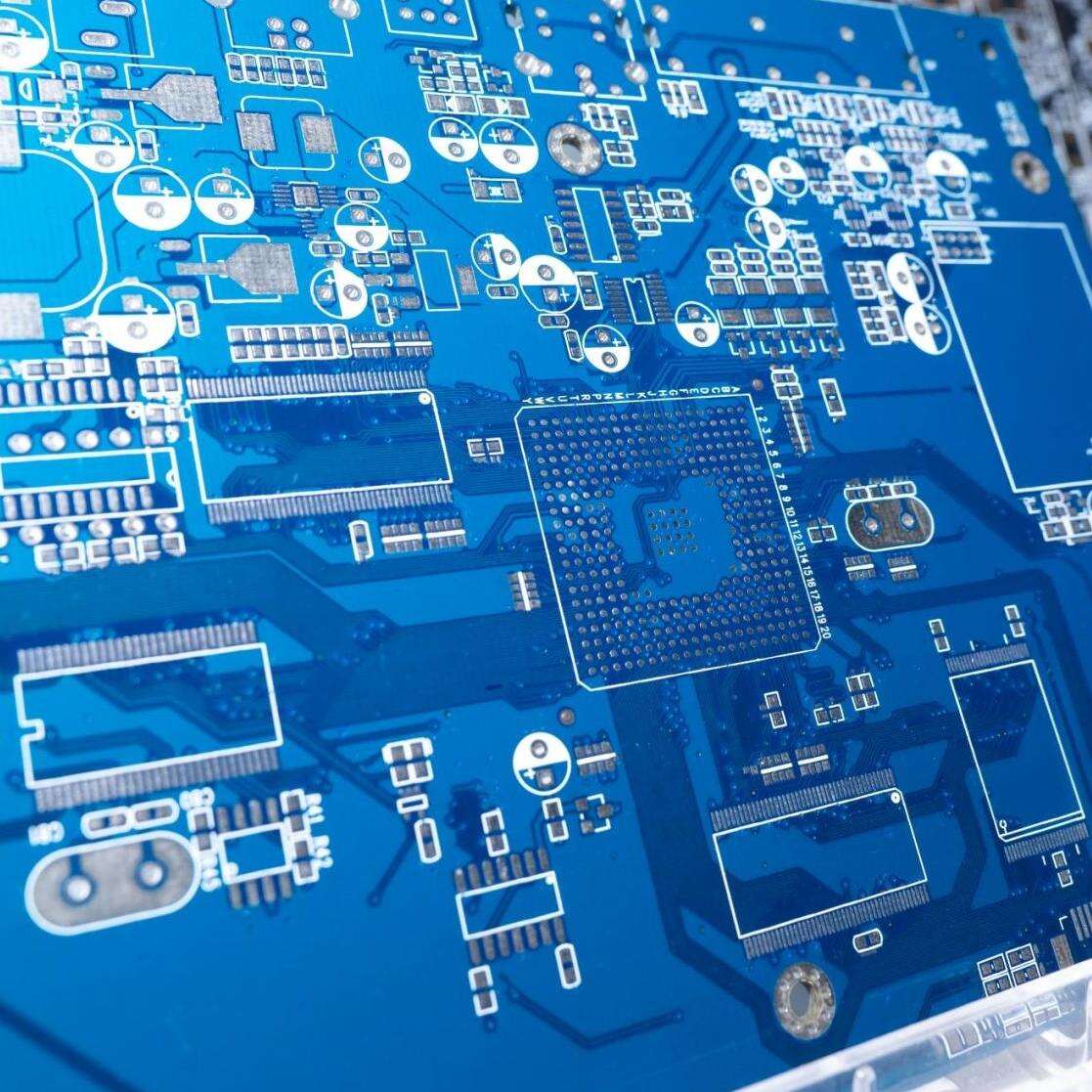

Application fields of FR4 PCB

Communication equipment: routers, switches, modems, antennas, etc.
Automotive electronics: control systems, navigation, entertainment systems, security systems, etc. (can withstand high temperatures and vibrations in the car).
Aerospace and military: aircraft electronic equipment, radar, military communications, etc. (requires high reliability).
Industrial equipment: control systems, motor drives, sensors, robots, instruments, etc.
Energy systems: wind power generation, solar power generation, converters, energy storage systems, power station monitoring, etc.
Security systems: surveillance cameras, access control, alarms, biometric devices, etc.
Consumer electronics: computers, mobile phones, tablets, TVs, home appliances, etc. (low cost, reliable).
Medical equipment: monitors, diagnostic equipment, imaging systems, surgical equipment, etc. (requires precise control).

Why choose LHD as your FR4 PCB supplier?

Experienced: More than 16 years of production experience, serving more than 1,000 customers, trustworthy.
Reasonable price: Provide competitive prices while ensuring high quality.
Quality assurance: Strictly manage quality, in line with international standards such as UL, ISO9001:2015, ISO13485, etc.
Fast delivery: Perfect supply chain and logistics management, with emergency measures to deal with emergencies, to ensure on-time delivery.
