Circuit Board Component Identification: Electronic Component Guide

Introduction

Today's life cannot do without electronic devices, and the core of each electronic device is a printed circuit board (PCB) filled with various circuit board components. The components on PCB - they are the basic units for current flow, information processing, energy storage, loss protection, and realizing the functions we rely on.

Identifying circuit board components, understanding printed circuit board (PCB) component lists, and mastering component connection methods will be of great help in handling these electronic devices, such as designing smart watches, repairing drones, or troubleshooting industrial controller faults. These knowledge are equally essential for following complex circuit designs and dealing with upgraded components in modern systems that can handle higher speeds and power.

What is a Printed Circuit Board and Why are Components Important?

A printed circuit board with components (PCBA) is a PCB where components such as resistors, capacitors, transistors, ICs, and connectors are laid out and interconnected to form electronic circuits.

PCB - conductive traces, solder pads, holes on PCB, and screen printed legends - ensures safe and accurate installation and electrical connections of circuit board components.

The functions required for each device in modern electronic devices, such as charging batteries, wireless connections, and processing sensor data, all rely on reasonable electronic design and assembly. Electronic components on circuit boards not only enable functionality, but also contribute to the ongoing trend of miniaturization, higher density, and more intelligent automation of circuit boards.

Basics of Circuit Board Components

At the most basic level, circuit board components can be seen as the "Lego bricks" of electronic products, with each component playing a different role, complementing and interacting with each other, providing functional assistance to the product. Each category plays a crucial role in circuit design and operation.

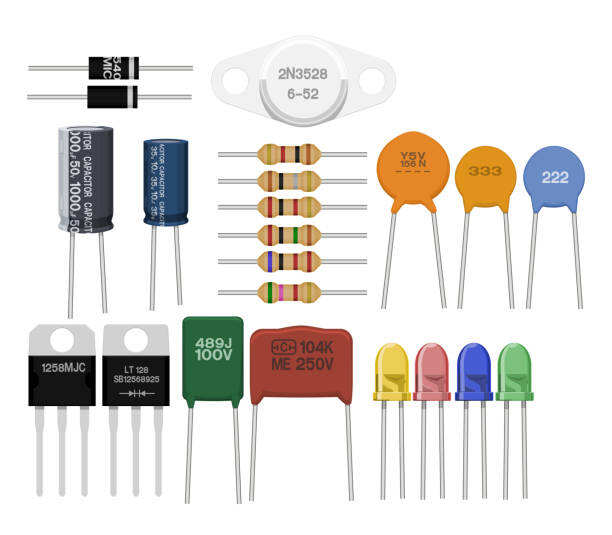

Essential Components You’ll Find on a PCB

• Resistors: Passive components that limit current in a circuit and set operational points. They are the most common circuit board component.
• Capacitors: Store and release electric charge; essential for smoothing voltages and filtering signals.
• Inductors: Passive components that store energy in a magnetic field, used for filtering, energy transfer, and EMI suppression.
• Diodes: Allow current to flow in a single direction; used for protection, rectification, and signal control.
• Transistors: Act as switches or amplifiers—components that work together in logic, amplification, and switching functions.
• Integrated Circuits (ICs): Miniaturized circuits performing functions ranging from simple amplification to complex computation.
• Connectors: Allow different sections or external devices to connect components onto the pcb surface.
• Sensors: Detect changes in the physical environment and convert them into measurable signals.
• Protection Components: Components are essential for safeguarding circuits, e.g., fuses, MOVs, TVS diodes.
• Relays, Switches, and Electromechanical Parts: Interface between the mechanical world and the electronic circuit.
• Oscillators/Crystals: Provide accurate timing control for digital systems.

These components are designed to perform specific roles within the circuit, and their correct selection, placement, and identification define the functionality of the circuit and its robustness.

Types and Categories: Passive, Active, and Electromechanical

Understanding circuit board components begins with their fundamental categories. Identify components in these groups to assist with schematic reading and fault diagnosis on a circuit board.

Passive Components Like Resistors, Capacitors, and Inductors

• Passive components neither amplify nor generate signals.
• Resistors, capacitors, and inductors are passive components that absorb, store, or release energy.
  • Resistors: Convert electrical energy to heat, set voltage/current.
  • Capacitors: Store electrical energy as charge.
  • Inductors: Passive components that store energy in a magnetic field, oppose changes in current.

Active Components

• Active components like transistors and ICs require power, and they control, switch, or amplify electronic signals.
  • Transistors: Serve as amplifiers and switches.
  • ICs: Chips that perform multiple electronic functions, the brain of digital devices.

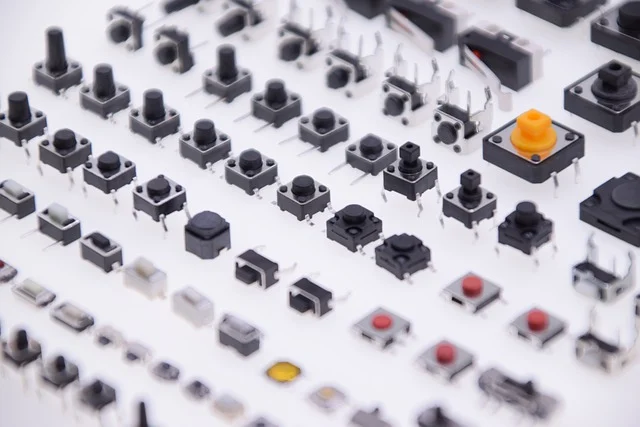

Electromechanical and Interconnect Components

• Switches, relays, and connectors: Provide mechanical and electrical pathway control, components that allow connecting or disconnecting parts of the circuit.
• Connectors: Anchor cables or external modules directly onto the circuit board surface.

Circuit Board Component Identification: Methods and Tools

The ability to identify circuit board components—especially within dense or complex assemblies—is a game-changing skill. Proper pcb components identification ensures correct assembly, repair, testing, and the production of reliable electronics.

Visual Identification: Reference Designators & Silkscreen

• Letter-number labels (R12, C5, Q3, IC2, D7) printed on the surface of the circuit board in white silkscreen.
• Common abbreviations:
  • R = resistor
  • C = capacitor
  • L = inductor
  • Q = transistor
  • U/IC = integrated circuit
  • D = diode/LED
  • F = fuse
  • SW = switch, K = relay

Physical Attributes

• Shape, size, pin count, and color bands for resistors are clues for printed circuit board component identification.
• SMD (Surface Mount Device) and THT (Through-Hole Technology) form factors.

Electrical Testing and Marking Codes

• Use a multimeter or LCR meter to verify suspected values of resistors, capacitors, and inductors—an essential strategy for test circuit board components.
• Many SMD resistors use a 3 or 4-digit code (e.g., “104” for 100kΩ).
• Capacitors may not be marked, requiring schematic cross-reference for accurate identification.

Schematics, BOM, and Parts Database

• Schematic diagrams and the PCB parts list (BOM) are your roadmap for exact information.
• Online tools and databases (e.g., Octopart, smdmark.com) help identify hard-to-decipher SMD markings.

Tools for Accurate Identification

• Magnifier or microscope: Essential for dense SMD boards.
• Gerber viewer: Visualize board layers, confirm footprints, placement, and orientation.
• Component tester: Handy tool to auto-detect basics of circuit board components.

Components Found on Circuit Boards: A Detailed PCB Parts List

Components on circuit boards can number from just a handful in simple LED gadgets to thousands on a high-end smartphone motherboard.

A Comprehensive PCB Parts List

Below is an extensive table highlighting the most common circuit board components—how to identify them, typical part numbers, and their function within a circuit. This components list is indispensable both for beginners learning the basics of circuit board components and for advanced users performing troubleshooting and diagnostics on a circuit board.

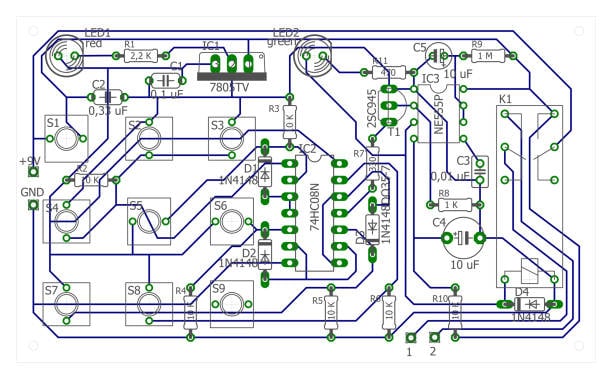

How Components are Connected in a PCB

The components are connected using copper traces on the PCB, which form predefined paths for signals and power. Depending on the assembly method and pcb design, these connections are established in several ways:

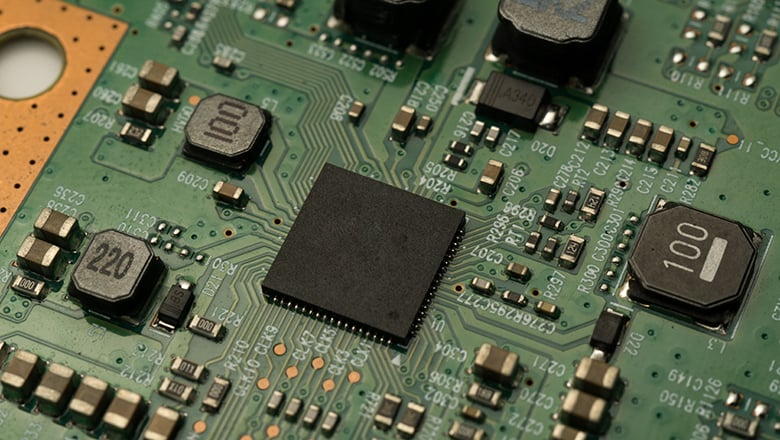

Surface Mount Components and Through-Hole Components

• Surface mount components (SMC/SMD) are soldered directly onto the PCB surface—ideal for high-density layouts in modern electronic devices.
• Through-hole components have leads that go through holes in the PCB and are soldered on the opposite side. They are robust and easy for manual assembly or repair.

Circuit Board Layout Best Practices

• Avoid overlap: Components are placed so their pads and parts do not obstruct other components or interfere with reflow or wave soldering.
• Thermal relief: For power components, use vias and copper planes to dissipate heat.
• Signal integrity: High-speed and analog signals require careful trace width, spacing, and impedance-controlled layout.
• Assembly accessibility: Plan for test points and clearance for tools during repair or inspection.

Examples of Connections Within a Circuit

• Passive components like resistors or capacitors may connect between power and ground to filter signals.
• Active components such as transistors typically connect at signal nodes, acting as switches or amplifiers based on the incoming signal.
• Connectors form the interface between the board and the outer world. In complex circuit designs, connectors are essential for modularity and testability.

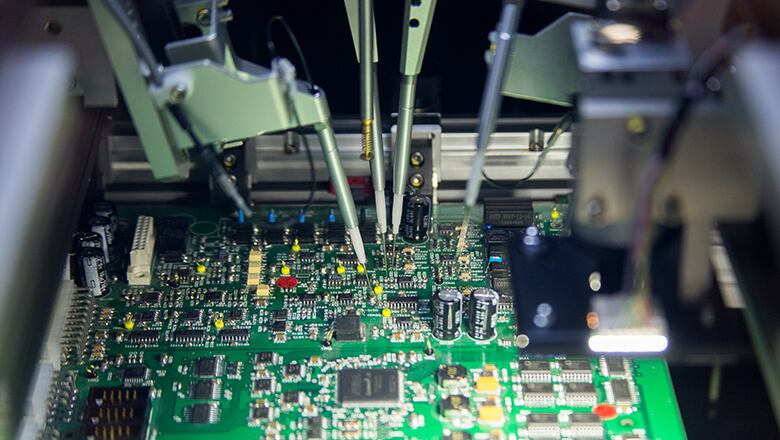

PCB Manufacturing Process and Assembly

The pcb manufacturing process involves PCB fabrication (the physical board with etched copper traces), assembly (placing and soldering components onto the PCB), testing, and quality inspection. Steps include:

• Gerber file generation (pcb parts layout)
• PCB fabrication (layer stackup, via drilling)
• Solder paste application (for SMD)
• Pick-and-place assembly (robotic placement for mass production)
• Reflow/wave soldering
• Inspection and testing

Proper assembly requires a clear pcb parts list and accurate circuit board component identification on both manufacturing and quality control floors.

Importance of Circuit Board Components in Electronic Devices

Printed circuit board components are not just required for creating electronic circuits—they determine every aspect of device operation, cost, durability, maintenance, and upgradability.

Why Circuit Board Components are Essential:

• Enable specific functions (logic, power, sensing, communication)
• Provide safety, isolation, and surge protection for users and devices
• Allow miniaturization and high-performance complex circuit designs
• Impact the ability of devices to operate in unique environments (high temperature, vibration, RF noise)
• Obsolete or faulty component selection can disrupt the entire circuit or cause catastrophic failure

Modern devices rely on improved parts that can handle higher frequencies, power levels, and environmental stresses, which is why accurate and up-to-date PCB components identification is so important.

Fault Diagnosis on a Circuit Board and How to Test Circuit Board Components

Diagnosis on a Circuit Board

Fault diagnosis on a circuit involves finding and fixing issues due to manufacturing errors, aging, environmental factors, or design flaws.

Steps:

• Visual inspection: Look for burnt components, cracked solder joints, or misaligned parts.
• Reference Designator match: Use the silkscreen to match parts with the schematic.
• Functional testing: Use test equipment (multimeter, oscilloscope, signal generator) to check voltages, continuity, and signals.
• Replace suspected faulty component with a known-good part to confirm and fix the problem.

How to Test Circuit Board Components

• Resistors: Check resistance (should match the color code or marking).
• Capacitors: Measure capacitance; electrolytics can be checked with ESR meters for internal resistance.
• Inductors: Meter or signal generator to confirm inductance and Q-factor (important for filters).
• Diodes: Measure forward voltage drop; check for shorts or opens.
• Transistors: Use diode test mode to check base-emitter and base-collector junctions.
• ICs: Test in-circuit voltages, function; replace if suspected.

Best Practices to Identify Components and Ensure Accurate Identification

• Maintain up-to-date schematics and parts lists.
• Use automated identification systems or barcode tracking for large batch assembly.
• Regularly calibrate and maintain testing equipment used for circuit board component identification.
• For rare or obsolete parts, keep original datasheets and sourcing history.
• During PCB prototyping, clearly label all new circuitry and ensure components do not obscure each other—crucial for complex circuit designs.
• Involve the design team in failure analysis meetings to improve future designs based on real-world diagnosis on a circuit board.

Modern Trends in Circuit Board Components & Future Developments

The future of printed circuit boards and their components is bright and rapidly evolving! Here are some exciting future trends in circuit board components:

• Miniaturization: Even smaller SMDs, higher density (HDI), 3D/stacked components for wearables, IoT, and medical implants.
• Improved performance: Components that can handle higher currents, voltages, data rates, or frequencies.
• Embedded passive/active devices: Thin-film and buried components inside the PCB structure.
• Environmentally friendly materials (RoHS, halogen-free PCBs): Compliance drives innovation.
• Smart components: Sensors and microcontrollers with self-diagnostics to warn of faults before failure.
• Advanced modular connectors: For hot-swapping, field updates, mixed signal and power management on compact boards.
• Integrated wireless/RF: More components now include built-in antennas, LNA, and filters for seamless wireless communication.
• AI-aided pcb components identification and test: Using machine vision and AI for faster, error-free inspections and fault diagnosis.

Sustainability and Repackability: The current market trend is gradually towards the specialized use of reusable components, and replacing faulty components is more valuable than purchasing new ones. As electronic waste becomes a global concern, the future trend of circuit board components will be beneficial for extending the lifespan of electronic devices and simplifying the design of scrap disassembly.

Emerging Applications:

• Flexible and stretchable circuits allow electronic components like sensors and conductors to be integrated into clothing or medical patches.
• Advanced PCB parts that can handle higher temperatures and harsh environments are enabling the next generation of automotive, aerospace, and industrial electronics.
• Components on a PCB are now directly assembled with machine-learning-aided pick-and-place systems, ensuring more accurate placement and reducing assembly errors in complex circuit designs.

Conclusion: Key Takeaways on Circuit Board Components

Circuit board components are now the core of modern electronic devices. They are not isolated hardware, but rather interactive pivot points that can jointly create everything from simple alarms to complex supercomputers. Learning how to identify circuit board components, create PCB parts lists, diagnose faulty components, and so on, all work towards the core of electronic device innovation.

• The basics of circuit board components start with identifying resistors, capacitors, and transistors but extend to specialized connectors, protection circuits, and sensors.
• Knowing how components are connected in a PCB—and how to identify components on a circuit—means you can accurately diagnose faults, enhance designs, and improve the reliability of electronic devices.
• Trends in circuit board components, such as miniaturization, integration, and repairability, are shaping the future of printed circuit board assembly and design.
• Keeping up-to-date BOMs, accurate identification tools, and a methodical approach to pcb components identification sets the foundation for robust products that serve users for years.
• The importance of circuit board components can’t be overstated: a single misplaced or misidentified part can disrupt the entire circuit; a well-chosen, perfectly identified component can make a design world-class.

In summary, understanding circuit board components and practicing careful identification and placement is essential, not just for PCB designers or manufacturing engineers, but for anyone seeking to master the art and science of electronics.

FAQ: Identify Components and Circuit Board Electronics

Q1: What is the best way to identify circuit board components on an old or unknown board?

A: Use the reference designators (silkscreen), look for physical clues like color bands or SMD codes, consult datasheets and online databases, and test circuit board components with a multimeter or LCR meter for verification.

Q2: Why is accurate circuit board component identification critical during assembly?

A: Misidentification leads to assembly errors, device failures, regulatory compliance issues, and increased rework costs. Accurate identification of components also prevents obstacles during troubleshooting and future repairs.

Q3: How can one test circuit board components for faults?

A: Check electrical values (resistance, capacitance), verify diode polarity, look for shorts/opens in ICs, and use dedicated IC testers if available. Compare all measurements to the expected values in the pcb parts list or schematic.

Q4: How do components on a circuit board connect with each other?

A: Copper traces, pads, and vias physically connect components within a circuit on the PCB, forming continuous electrical networks that define the functionality of the circuit.

Q5: What are some signs that a component is faulty?

A: Burn marks, swelling, visible cracks, or abnormal measurements (such as infinite resistance on a resistor) all indicate a faulty component. Always confirm with electrical testing.

Q6: What is the future of printed circuit board design?

A: The future will bring even smarter, smaller, denser components, greater integration, machine learning-aided design and assembly, and a focus on environmental sustainability and repairability.

Q7: Why is it important to understand how components are connected in a PCB?

A: Proper understanding enables you to diagnose on a circuit board, perform accurate repairs, and optimize circuit board design for cost, size, and performance.
