PCB Cost Guide: Printed Circuit Boards and Manufacturing

Introduction

Printed circuit boards (PCBs) are the silent mainstay of power supply for all contemporary electronic devices. From consumer electronics and medical devices to automotive controllers and aerospace systems, PCBs are essential for installing, connecting, and reliably operating electronic components. When it comes to PCB costs, many engineers, buyers, and hobbyists find the situation surprisingly complex. The price of printed circuit boards ranges from $0.50 per unit to several hundred dollars, and various factors such as design complexity, materials, assembly options, and order volume can affect it

Accurately estimating the cost of PCB is very important - making prototypes for new products, conducting large-scale production, and building something unique all require precision. Having a clear understanding of the reasons that affect the cost of printed circuit boards can help you optimize circuit performance without compromising quality or exceeding budget.In this comprehensive guide, you'll discover:

• The core drivers of PCB manufacturing cost
• Cost breakdowns (including assembly cost and cost per square inch)
• How to perform a cost estimation for any circuit board project
• Smart tips to reduce PCB cost on printed circuit projects
• How to choose the right manufacturer and leverage online quote tools

What is a Printed Circuit Board and Why Does Cost Vary?

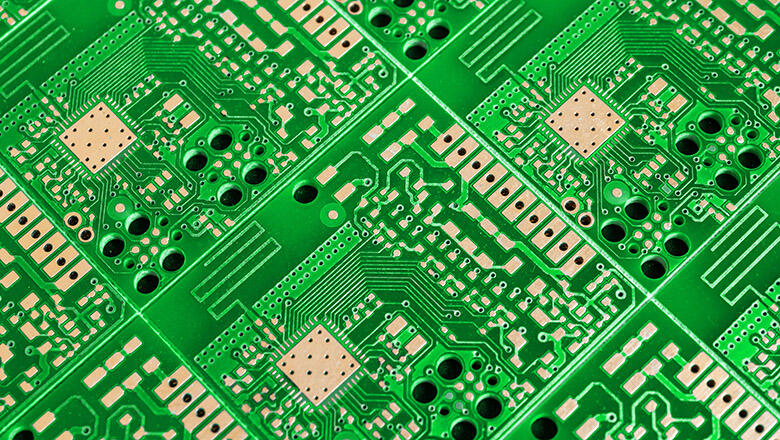

What Is a PCB?

A printed circuit board (PCB) is more like a precisely designed platform for connecting and supporting electronic components. Unlike traditional manual wiring circuits, PCBs utilize etched copper traces on non-conductive substrates, typically made of materials such as FR4 (fiberglass), polyimide (for flexible PCB design), or Rogers (for RF applications). This innovation enables circuit boards to shrink in size, improve reliability, and significantly reduce unit costs.

Common types of PCBs include:

• Single-sided PCBs: One copper layer, low cost, simple gadgets
• Double-sided PCBs: Copper layers on both sides, more routing options
• Multilayer PCBs: 4+ layers for high-density or complex applications
• Flexible PCBs (Flex PCB): Built on polyimide/polyester, bendable
• Rigid-flex PCBs: Combine rigid and flexible for unique circuit layouts
• Aluminum PCBs: For high-power LEDs or heat-sensitive designs
• High-frequency/HDI PCBs: Specialized, demanding applications

Each board type brings different cost considerations—influenced by required materials, stack-up, and the cost of manufacturing using specialized processes.

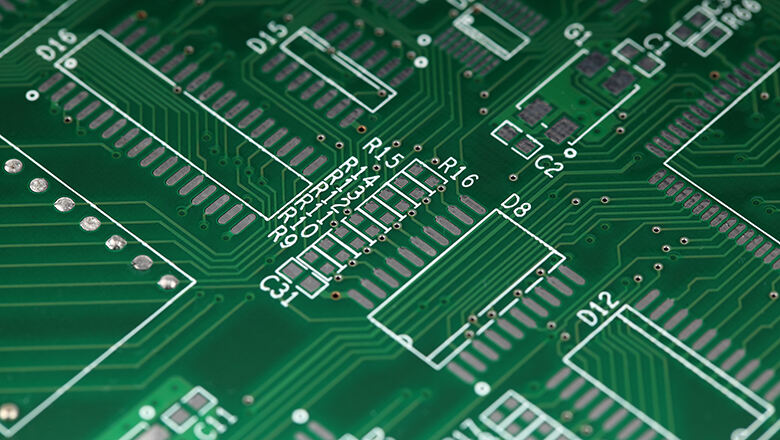

General PCB Cost Range and Influencing Factors

A recurring question: What is the typical price of a printed circuit board? The answer depends on several factors, but in general:

• Simple 2-layer prototype boards: $5–$25 per unit (low volume)
• 4-layer high-density, controlled impedance boards: $30–$100+ per unit (prototype)
• Advanced, aerospace-grade boards: $300–$1,000+ per unit (specialty, low volume)
• Mass production (10,000+ units): As low as $0.50–$3 per PCB, even lower for small, simple boards

The cost per square inch drops dramatically as volume increases, but complexity, materials, and required certifications rapidly lead to cost increases.

Main Factors Affecting PCB Cost

Printed circuit board pricing is dynamic. Several factors influence the cost of PCB manufacturing—from raw materials to layout complexity, assembly, testing, and packaging:

1. PCB Size and Board Dimensions

The larger your PCB board, the higher the board cost, since more substrate and copper is consumed. PCB cost per square inch is a crucial metric often quoted by manufacturers.

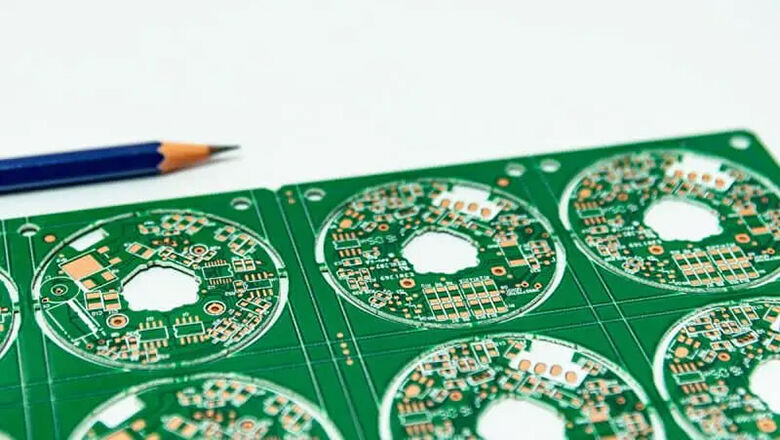

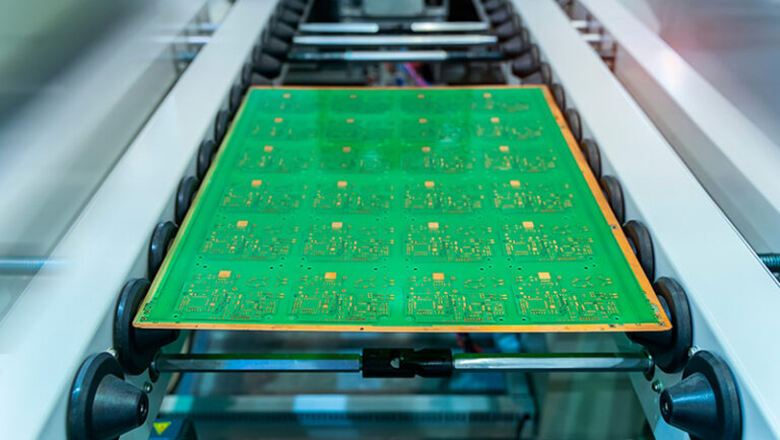

• Panelization: Printing multiple PCBs on a single panel can lower the cost per square inch and make assembly more efficient.
• Non-standard shapes lead to cost increases due to higher scrap rates.

2. Number of Layers

Layer count is a key driver. Each additional pair of layers raises PCB manufacturing cost by 30–40% compared to double-sided boards.

• Prototypes: Typically 2-4 layers, more affordable
• Complex products: 6-12 layers, higher the price due to pressing, lamination, and alignment requirements
• HDI (High Density Interconnect) PCBs or rigid-flex can be especially expensive due to extra process steps

3. Material Types

The cost of PCBs is heavily influenced by material selection:

• FR4 (baseline, most economical)
• Rogers (2–3x FR4 for RF, microwave, or high-speed apps)
• Aluminum, ceramic (1.5–2x FR4; critical for power electronics)
• Polyimide or PET (3–4x FR4 for flex and rigid-flex PCB)

Materials like Rogers are essential for controlled impedance, but raise final cost substantially.

4. Design Complexity

Factors like trace width, spacing, via types (through-hole, blind/buried/microvias), and custom board outlines all increase cost.

• Microvias and HDI boards: Require advanced equipment, raising costs up to 80%
• Gold fingers, edge plating, castellations: Add extra processes, each incremental
• Tight tolerances: Increase scrap rates, leading to cost higher than standard boards

5. Surface Finish & Silkscreen

Surface finishes influence both quality and price:

• HASL (cheapest)
• ENIG (needed for fine-pitch, automation, higher assembly costs)
• OSP, Silver (niche applications, moderate cost increase)

Color and complexity of silkscreen (component labeling) can also affect PCB cost, albeit modestly.

6. Component Population & Assembly Cost

PCB assembly cost includes both labor and machine time:

• Number of components: More parts and higher density raise costs
• Part types: Through-hole (cheaper manual), SMD (faster, lower cost at volume), and BGAs (expensive, require X-ray inspection)
• Turnkey assembly: The supplier sources/places all components, which can lower cost for high volume
• Flex PCB cost: Assembly on flex circuits is generally higher due to complex handling

PCB assembly process efficiency and supply chain robustness have a major impact on final cost.

7. Testing & Certifications

Extensive testing (e.g., ICT, AOI, X-ray) and certifications (RoHS, IPC, IATF 16949) will lead to cost increases but are essential for many sectors.

• Automotive/medical/aerospace circuitry demands the highest standards, leading to higher cost per PCB

8. Lead Time (Turnaround Time)

The faster you need a PCB, the more you pay. Rapid prototyping can multiply costs 2x–4x relative to standard 7–14 day runs.

9. Order Quantity

Order volume matters. Higher production runs lower the cost per unit, as NRE/setup costs are distributed across more boards.

• Prototyping: Highest cost per board
• Mid-volume: Best blend of support and price
• Mass production: Lowest cost per square inch, but higher upfront investment

10. Packaging and Shipping

• Custom packaging and international shipping add additional cost, while inadequate packaging can increase risk of damaged PCBs and hidden expenses.

PCB Cost Estimation: How to Calculate the Price of a Printed Circuit Board

Let’s walk through cost estimation for PCB manufacturing:

Step 1: Prepare Accurate Design Files

• Include your Gerber files, Bill of Materials (BOM), and pick-and-place/assembly drawings.
• Specify material, layers, finish, and any special requirements.

Step 2: Use Online PCB Quote Tools

Most major manufacturers offer instant PCB cost calculators. Input:

• Board size and thickness
• Layer count
• Material (FR4, Rogers, aluminum, flex, etc.)
• Surface finish
• Order quantity and lead time
• Assembly options (do you want assembly cost included?)

Step 3: Review All Cost Components

Breakdowns should include:

• PCB fabrication only (bare board cost)
• PCB assembly (component mounting, soldering, inspection)
• Stencils, additional setup/NRE
• Shipping, packaging, component sourcing

Step 4: Compare Suppliers, Lead Times, and Service

Running "what-if" scenarios (e.g., changing materials or order size) helps optimize cost without compromising on quality.

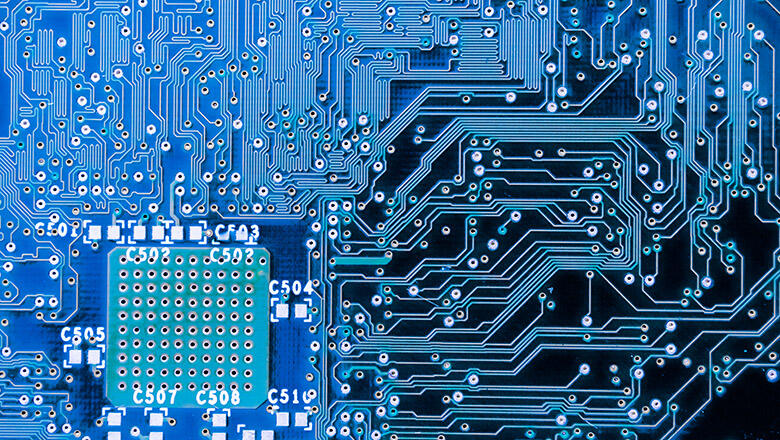

Custom PCB Cost Per Unit: From Prototype to Production

Prototypes vs Mass Production

Several factors influence cost at each stage, but volume is the primary driver of price.

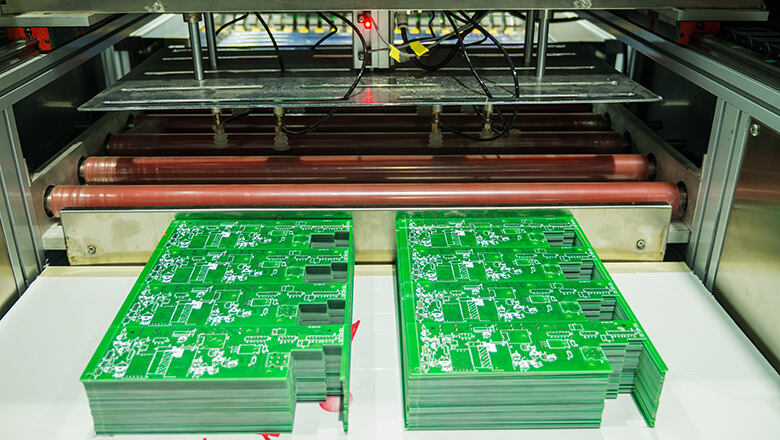

The Relationship Between Cost and Volume in PCB Manufacturing

When scaling up, the cost per square inch for each printed circuit board drops sharply. This is because mass production allows for:

• Bulk purchasing of materials, reducing the manufacturing price.
• Spread-out NRE (Non-Recurring Engineering) and setup cost over thousands of units rather than just a handful.
• More efficient panelization, lowering both wastage and total cost per PCB board.
• Streamlined PCB assembly process with higher machine utilization and reduced labor per board.

However, while mass orders can deliver a significantly lower cost per PCB, it’s critical to ensure your design has passed DFM (Design for Manufacturability) checks to avoid costly errors being multiplied across thousands of units.

How Different PCB Types Affect Cost

Standard Rigid PCB vs. Flexible PCB (Flex PCB)

• Standard FR4 Rigid PCB: Widely used and most affordable for basic circuits. Lean manufacturing and high-volume production can push pcb cost per square inch to the lowest levels.
• Flexible PCB (Flex PCB): Uses polyimide or PET for flexibility. Highly valuable for wearables and devices with moving parts, but comes at a higher cost due to specialty materials and processes.
• Flex PCB:Cost often includes higher setup fees, more expensive lamination, and precise laser cutting. Assembly is also more complex, so expect higher assembly costs compared to rigid boards.
• Rigid-Flex PCB: Combines the best of both worlds but is the most expensive option, reserved for unique engineering applications.

High-Density, Advanced PCB

HDI (High-Density Interconnect) and advanced PCB designs—featuring microvias, buried or blind vias, and fine lines—can significantly raise manufacturing cost. Design intricacies mean:

• Greater risk of fabrication errors, requiring stricter quality controls.
• Advanced material options often needed, such as materials like Rogers for RF and microwave frequencies, which come at a substantial premium.
• More expensive testing and inspection methods (like X-ray and advanced AOI).

Advanced PCB projects can see their cost per board rise well above conventional designs, especially at low volume.

Cost-Reduction Strategies for Printed Circuit Boards

Controlling the price of a printed circuit board requires an intentional approach from the earliest design stages all the way to the choice of manufacturer. Here are proven strategies to reduce PCB cost on printed circuit projects:

1. Optimize Design for Manufacturability

• Minimize layer count: Only use as many layers as needed for your circuit’s performance.
• Standardize board shapes: Use rectangular, panel-friendly outlines to minimize waste and per-unit cost.
• DFM analysis: Collaborate with your chosen PCB manufacturing partner, who can often spot ways to save via a DFM Gerber review.

2. Select the Right Materials and Surface Finish

• Default to FR4 unless your product’s specs demand otherwise. Materials like Rogers or aluminum should be chosen only when performance justifies the additional cost.
• Opt for HASL finish if longevity and fine-pitch SMD are not required.
• Be conservative with decorative features—multiple soldermask colors or custom silkscreens add incremental cost.

3. Streamline Assembly

• Utilize SMD (Surface Mount Devices) instead of through-hole when possible. SMDs are easier, faster, and cheaper to assemble at scale.
• Avoid specifying exotic or rare components—limited availability can lead to cost spikes and long lead times for assembly.
• Use certified modules or reference designs to skip certain costly approvals.

4. Leverage Volume and Lead Time

• Order in higher volume: The more boards you request, the lower the cost per square inch and per board.
• Take advantage of flexible lead times. Allowing an extra week for production can unlock meaningful discounts.
• If you need a quick turnaround, be aware this can double or triple your PCB cost.

5. Carefully Source Components

• Choose standard, readily available components to avoid supply chain delays and additional cost from expedited or custom orders.
• Specify clear preferred and alternate part numbers in your BOM for seamless procurement.

How to Select the Best PCB Manufacturer

The right manufacturing partner can lower cost, reduce lead time, and improve yield without trade-offs in quality.

What to Look for in a Supplier

• Transparent, detailed quote breakdowns (fabrication, assembly, testing, shipping).
• Adherence to IPC-A-600, IPC-6012, IATF 16949, and RoHS compliance.
• Reliable, fast support, including DFM checks at no extra cost.
• Ability to get a free quote online and run cost comparisons easily.

Frequently Asked Questions: PCB Cost

Q: How can I get a PCB for $1 or less?

A: Many manufacturers like JLCPCB, PCBWay, and ALLPCB offer promo pricing for basic 2-layer PCBs within size limits (usually 100 x 100 mm), sometimes with free shipping.

Q: Why does the number of PCBs ordered influence price so much?

A: Setup (NRE) and machine costs are fixed, whether for 1 or 10,000 boards. Higher orders divide this cost across each unit, resulting in lower cost per PCB.

Q: What causes the price increase with more complex designs?

A: Added layers, controlled impedance, gold finishes, and HDI via types all require extra steps, materials, and manual inspection—directly raising both board and assembly cost.

Q: How do I reduce PCB cost on printed circuit projects without cutting quality?

A: Focus on good DFM, order in higher volume, stick to standard materials and finishes, and avoid non-critical decorative or specialty features.

Final Tips: Maximizing PCB Value While Keeping Costs Low

• Advance planning: It is not feasible to start optimizing the layout after the prototype is completed, it needs to be done at the beginning.
• Support standardization: If your application really needs something more advanced, you can choose some special materials. Otherwise, sticking to common materials, thicknesses, and surface treatments is the best choice.
• Panelization is king: maximizing the use of circuit boards on each panel - wasting panel space is wasting money.
• Collaborate with reliable manufacturers: Choose suppliers with strong support, transparent pricing, and free or low-cost DFM reviews.
• Use cost estimation tools: Do not conduct large-scale operations, including with and without assembly/flexibility options, until you have identified the factors that affect the cost per unit PCB.

Conclusion

Understanding and controlling PCB costs is a key skill in electronic design, engineering, and procurement. The price of printed circuit boards depends on materials, size, complexity, assembly options, delivery time, and order quantity - every decision made in this process will increase or decrease your overall manufacturing costs.

By being mindful of these cost drivers and leveraging proven strategies:

• Optimize circuit design for manufacturability.
• Choose appropriate, not excessive, materials.
• Order in volume where possible.
• And use instant quote tools for transparent, competitive pricing.
