What is an Open Circuit? Ultimate Guide to Open Circuits in Electrical Systems

2025-11-12

Introduction

Open circuit is the core for both advanced engineering and basic situations. For example, if one day your light cannot be turned on, or you want to improve the reliability of the electrical system for your product, or troubleshoot the PCB, after understanding the concept of open circuit, you will know the general direction and find the cause and solution from this direction. Understanding how circuits can malfunction due to open circuits, as well as how to prevent and manage such situations, can help you understand their safety and reliability from small living rooms to large power plants.

What is an Open Circuit? Understanding Open Circuits in Electrical Systems

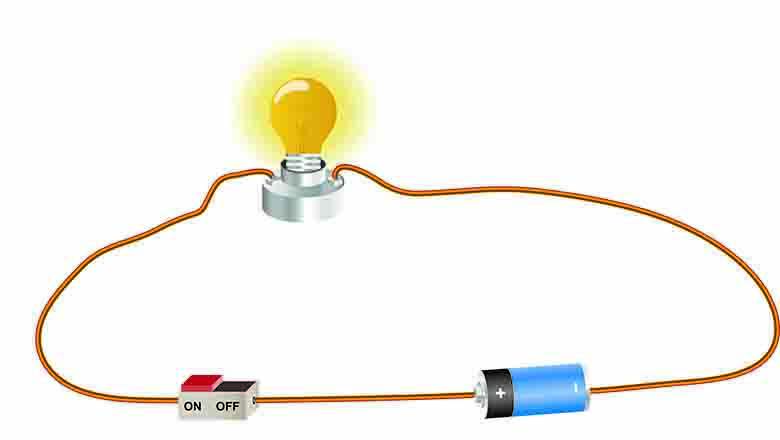

To describe and analyze fundamentally, an open circuit is essentially an incomplete circuit. In all modern technology capable circuits, there is a continuous and uninterrupted path for the flow of current, which allows electrons to pass from a power source through the circuit, through circuit components, and then back. When a circuit break occurs, it can occur, such as a broken wire, a blown fuse, or a disconnected switch, which prevents the flow of current in the circuit.

In a functioning series circuit, each component is connected to ground one by one. If any device or connection experiences an open circuit (such as a burnt out light bulb), the current in the circuit will completely stop. On the other hand, due to the multiple paths of current, parallel circuits can usually continue to operate even if one branch is opened.

Open circuit refers to a circuit in which current cannot fully pass through - this can be intentional (switches, fuses, or circuit breakers) or accidental (component failure or disconnection).

Concepts of Open Circuits: Circuit, Voltage, and Resistance


What is a Circuit?

A circuit refers to an electrical circuit created by connecting two or more components with conducting wires and a power source to form a complete path for electrical current flow.

Open Circuit and Voltage

In an open circuit scenario, when a break in the circuit is present, the potential difference between two points in the circuit can still be measured. This potential difference is called the open circuit voltage. The open circuit voltage is the voltage that appears across the open points, such as the terminals of a disconnected battery or across the contacts of an open switch.

Resistance in the Circuit: When a circuit is open, the resistance of the circuit at the break is considered infinite. According to Ohm’s Law:

[ I = \frac{V}{R} ]
Where

  • ( I ) is the current flowing through the circuit
  • ( V ) is the voltage
  • ( R ) is the resistance

If ( R \to \infty ) (as in an open circuit), then ( I \to 0 ), meaning no current flows.

How an Open Circuit Occurs

Causes of Open Circuits

  • Manual Switch: Intentionally opening a switch acts as an open in the circuit.
  • Blown Fuses or Circuit Breakers: Designed to open when current is too high, protecting the rest of the system.
  • Component Failure: Burnt bulbs, broken resistors, or failed relays all can create an open within the circuit.
  • Wire Breakage: Mechanical strain, vibration, or rodents may sever connections and lead to open circuits.
  • Loose Connections: Poorly assembled terminals often lead to an open circuit or cause intermittent faults.
  • Corrosion or Oxidation: Particularly in harsh environments, these degrade metal connections until continuity is lost.

When a circuit break occurs, the circuit we designed will disconnect at that location. This action will render electronic devices ineffective.

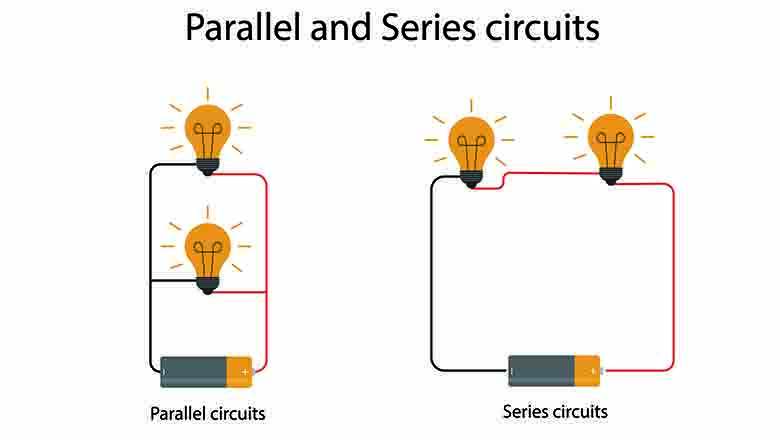

Open Circuit in a Series Circuit vs. Parallel Circuit


Understanding how open circuits affect different configurations is vital in both electrical engineering and practical troubleshooting.

Open Circuit in a Series Circuit

A circuit in a series circuit has all elements connected end-to-end. When an open circuit in a series occurs (e.g., one device fails open):

  • Current in the circuit stops everywhere.
  • No device receives power.
  • The total resistance of the circuit becomes infinite.

Open Circuit in a Parallel Circuit

In a parallel circuit, branches allow multiple paths. When a branch is open:

  • Other branches can still flow in the circuit.
  • The circuit is characterized by continued operation elsewhere.
  • Only the open branch loses function.

Open Circuit Effects in Series vs Parallel Circuits

Circuit Type

Device Fails Open

Effect on System

Series Circuit

One lamp fails open

All lamps off (current stops)

Parallel

One lamp fails open

Only that lamp off, others work

If there is an open circuit in a series circuit, the entire system will suffer damage, but in a parallel circuit, only the branches will be affected.

Open Circuit Voltage: What Appears Across the Open?

Open circuit voltage is a key measurement, especially for diagnosing faults and understanding circuit potential.

  • What is open circuit voltage?

It’s the potential difference between two points of a device or circuit when no current flows (the circuit is open).

  • Where is it measured?

Across open terminals: a battery not connected to a load, or the two points of an open switch.

  • Why is it important?

It tells you whether the power source is healthy or if there is a break downstream.


Common Causes of Open Circuits in Electrical Systems

Understanding what can lead to open circuits is critical for both proactive design and repair.

  • Mechanical Stress: Constant flexing, vibration in vehicles or machinery.
  • Environmental Factors: Moisture, temperature extremes, and corrosive atmospheres degrade conductors.
  • Human Error: Mis-wiring, loose terminals.
  • Aging: Materials fatigue over time; solder joints crack.
  • Manufacturing Defects: Faulty solder joints, via failures, trace cracks on PCBs.

Circuit Protection: Fuses and Circuit Breakers

Circuit breakers are not without preventive measures. Fuses and circuit breakers can provide good protection, preventing circuit breakers in the event of high current danger, preventing equipment damage or even fires.

Identifying Open Circuits: Diagnosis and Testing


How to correctly diagnose and test circuits is the first step in understanding how to eliminate open circuit faults in power systems.

For power failures, our goal is to know where the problem lies, especially with accuracy, in order to effectively repair the problem.

Visual Inspection and Tactile Checks

  • Look for breaks in the circuit: Examine wires, PCB traces, and component leads for visible gaps, burn marks, discoloration, or hairline cracks.
  • Feel for loose connections: Gently tug terminals, connectors, and soldered joints. Any movement may indicate a weak connection likely to become or already be an open.
  • Component assessment: Inspect components like fuses and resistors for obvious signs of damage, such as burn marks or melted bodies.

Electrical Testing

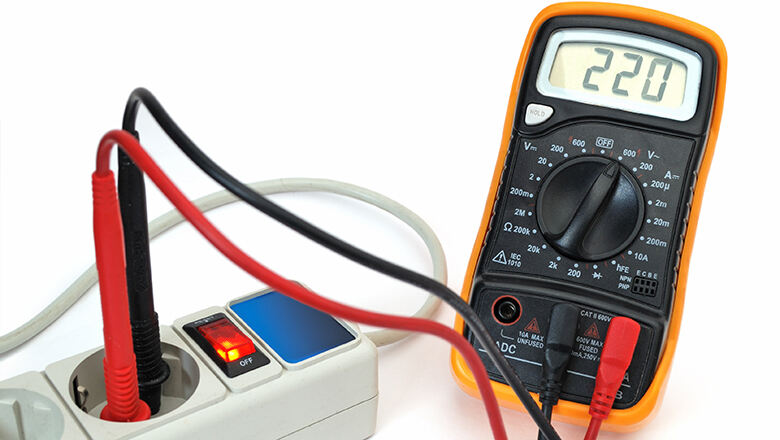

  • Multimeter continuity test: Set your meter to continuity mode. Probe both sides of the suspected open; a lack of a “beep” indicates an open circuit. This is one of the most effective ways of identifying open circuits at two points in the circuit.
  • Resistance measurement: An infinite or exceedingly high reading indicates the presence of an open circuit.
  • Open circuit voltage test: Check for voltage across the open points. For instance, if you measure the full source voltage across the terminals of a component but it isn’t operating, it likely indicates an open circuit at that component.

Advanced PCB and System Analysis

  • In-circuit testing and flying probe: Automated tools for PCBs can quickly find where a circuit is open or closed between two points of the circuit.
  • Automatic Optical Inspection (AOI): AOI machines scan for physical defects that often lead to open circuits in manufacturing.
  • X-ray and Time Domain Reflectometry (TDR): For complex boards and cables, X-ray can spot hidden breaks, while TDR pinpoints the exact location of an open or short.

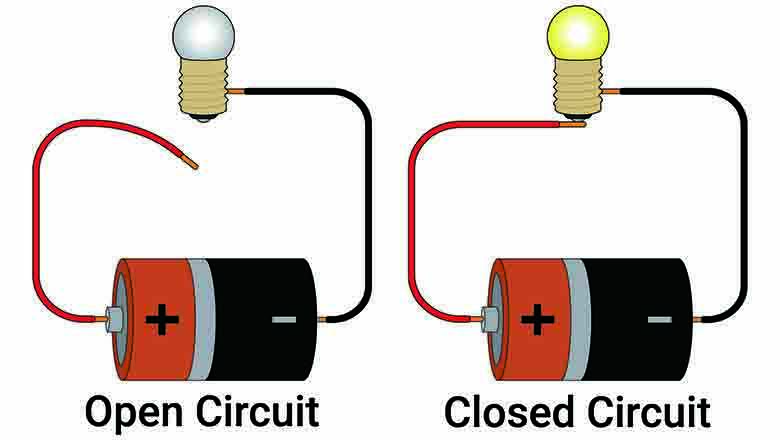

Open Circuit vs Short Circuit vs Closed Circuit: Key Differences

Understanding the differences between open circuit and other circuit conditions such as short circuits and closed circuits is foundational in troubleshooting and electrical engineering.

Type

Current

Resistance

Voltage Across Open

Example

Open circuit

No current flows

Infinite

Source voltage

Burnt bulb, blown fuse, open switch

Closed circuit

Current flows as designed

Load resistance

Nearly zero

Working light, electronics powered on

Short circuit

High current

Nearly zero

Very low (due to wiring resistance)

Wire across battery, failed insulation

Open Circuit

  • Open circuit refers to an electrical circuit where current cannot flow because the circuit is not complete.
  • Identifying open circuits is crucial for safety, as an open can mean anything from a harmless switch-off to a dangerous loss of protection.

Short Circuit

  • A short circuit is a circuit condition where a low-resistance path bypasses the intended load, causing high current flow. Unlike an open, a short is very dangerous—short circuits represent one of the greatest electrical hazards.

Closed Circuit

  • A closed circuit is a complete circuit with no breaks; current will always flow if there is a voltage source.

Differences Between Open Circuit and Short Circuit

Parameter

Open Circuit

Short Circuit

Continuity

None; circuit is broken

Complete, but direct (no load)

Current

Zero

Extremely high

Resistance

Infinite

Almost zero

Open circuit voltage

Equal to source (appears across the open)

Very low (voltage drop mostly lost over wire)

Examples

Off switch, blown fuse, disconnected wire

Screwdriver across outlet terminals, frayed wire touching metal

Circuit safety impact

Usually safe; system just stops

Dangerous: heat, fire, equipment risk

Knowing the differences between open circuit and short circuit conditions helps prevent electrical fires, damage to devices, and accidental power loss.

Role of Open Circuits in Electrical Safety and Reliability

The role of open circuits transcends just faults; understanding both the intentional and unintentional role of opens is crucial for managing the safety and reliability of electrical systems.

Circuit Protection

  • Fuses and circuit breakers are designed to lead to an open circuit if too much current is detected, stopping the flow of electricity and preventing overheating, fires, or further faults.
  • Switches act as controlled opens; they allow for safe circuit control and system shutdowns in both emergency and routine operations.

System Malfunctions and Reliability

An unexpected system failure can result in your project having to pay a painful driving fee. For example, in hospitals and aviation, it can endanger human life safety, or in data centers, you may have to pay a painful driving fee due to a single failure.

Monitoring and Redundancy

Many circuit designers have two rows of circuits for output, and even if one of them is short circuited, it does not affect its use.

Intelligent diagnosis: It can be equipped with intelligent detection relays or PLCs, and can detect short circuits by itself.

Prevention and Management of Open Circuits

Proper prevention and management should be taken before operation, which can ensure the safe and stable operation of the electrical system. At the same time, it can minimize short circuits or even circuit breaks, and prevent driving accidents caused by downtime caused by these times.

Preventive Design

  • Ensure correct circuit layout: In a series circuit, a single open disables the whole branch. Use parallel circuit design when possible to increase system resilience.
  • High quality components can increase various environmental pressures that may exist in electrical systems.

Assembly and Testing

  • Implement rigorous manufacturing standards and inspection, including AOI and continuity checks for all assemblies.
  • After installation, test all segments—ensure there are no hidden opens before energizing the system.

Maintenance and Monitoring

As the time of use of the equipment increases, vibration will occur, and the heat of temperature will gradually loosen the product. Therefore, it is necessary to regularly inspect all equipment. If repair and replacement can be carried out, it can prevent many dangers from occurring.

The use of a multimeter is also very important. Using it to test equipment and maintain it with other tools can help identify problems and solve them in advance, especially in situations where important circuits or usage scenarios are very severe.

FAQ: Open Circuits in Electrical Engineering

Q: What is the difference between an open circuit and a closed circuit?

A: An open circuit can cause the flow of current to stop, stopping the circuit flow in one line of the system, but a closed circuit is complete and its design allows power to flow between two points.

Q: How do you identify open circuits in series and parallel circuits?

A:In a series circuit configuration, if the circuit is disconnected at any time, all devices will stop working. However, in a parallel circuit, only the open circuit branch at a certain point will be affected, while other branches will continue to work.

Q: What appears across the open points of an open circuit?

A: The open circuit voltage applies—the source voltage appears across the break.

Q: How do fuses and circuit breakers increase safety in electrical systems?

A: The function of fuses is to interrupt the circuit when the current exceeds its own load, preventing damage and danger caused by the load in advance.

Q: What are the most common causes of open circuits?

A: The most common causes of short circuits are: loose connections, stress effects caused by mechanical vibrations, corrosion, temperature induced burnout, and poor wiring.

Conclusion: Why Understanding Open Circuits is CrucialOpen

Circuit is a fundamental concept that may exist in every electrical system and is crucial - it is a circuit state that represents the inability of current to be transmitted due to interruption, flow, and the need to distinguish between open and short circuits. This is the foundation of all safety, functionality, and electrical design, from identifying open circuits at home to managing industrial factories or designing the next generation of electronic products.

These principles require a deep understanding

  • The differences between open circuit and short circuit dictate approaches to troubleshooting, prevention, and repair.
  • Open circuits typically present zero current and full source voltage across the break—valuable for diagnosis.
  • Both open circuit and a closed circuit states are normal in controlled settings (like switches); when unintended, they demand prompt attention for the safety and reliability of electrical systems.
  • Proactive measures, smart circuit design, and regular maintenance all contribute to managing open and short circuits for maximum uptime and safety.
