How Surface Mount Technology (SMT) is Transforming Modern Electronics

Introduction to Surface Mount Technology (SMT)

Surface Mount Technology (SMT) forms the fundamental framework of modern electronics manufacturing. This technology is reshaping the production systems of electronic devices, altering product design methodologies, and expanding end-use application scenarios. Disassembling various consumer electronics reveals the core role of SMT, medical equipment internally relies on this technology, while communication base stations and industrial control devices also employ SMT processes. Traditional through-hole technology requires component leads to pass through circuit board drill holes, whereas Surface Mount Technology directly solders components onto PCB surfaces. This assembly approach drives continuous miniaturization of electronic devices, enabling modern electronics to achieve higher integration levels. Smartphones maintain their slim profiles through this technology, and medical implant devices utilize it to achieve precise circuit layouts.

Surface Mount Technology has significantly reduced manufacturing costs for electronic products. This technology has substantially improved circuit board assembly efficiency. It has also enhanced the overall performance of electronic devices. The current market continues to demand smaller device sizes while integrating more functions. Under this development trend, Surface Mount Technology demonstrates critical value. This technology is becoming a core force driving the upgrading of the electronics industry.

What is Surface Mount Technology (SMT) and How Does it Work?

Surface Mount Technology employs an innovative component assembly solution. Conventional techniques require drilling holes for component lead insertion. This new method directly mounts surface mount devices onto the front side of printed circuit boards. This approach significantly reduces electronic component dimensions, enabling circuit boards to accommodate more components. Consequently, device volume achieves substantial reduction. Modern electronic products thus gain expanded design possibilities. Manufacturers can integrate complex functionalities within limited space. This technology forms the foundation for developing slim and lightweight modern electronic products.

The SMT assembly process consists of several precise, automated stages:

• Solder Paste Application: Solder paste is printed onto the PCB using a stencil. This paste will hold and electrically connect the SMT components during reflow soldering.

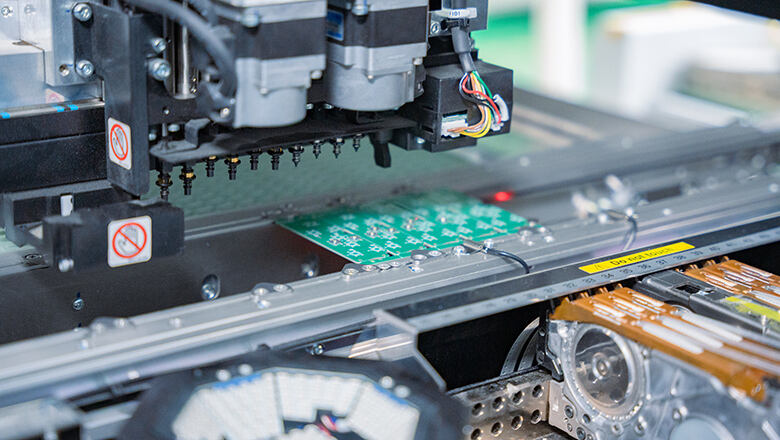

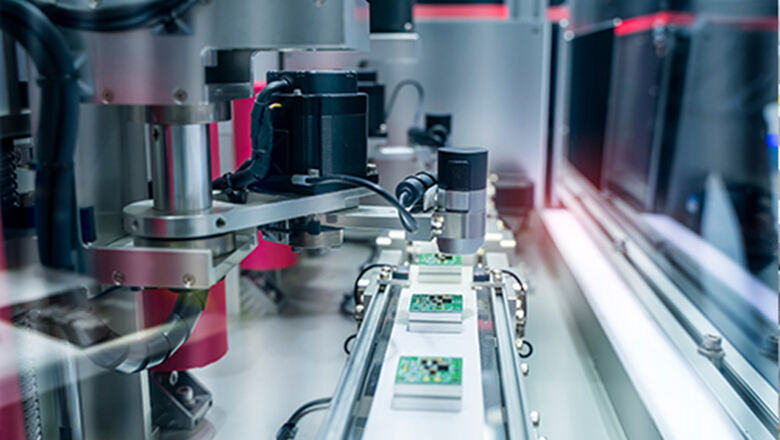

• Component Placement: Highly automated pick-and-place machines mount the components directly onto the surface of the PCB, following the exact positions dictated by advanced PCB design tools.

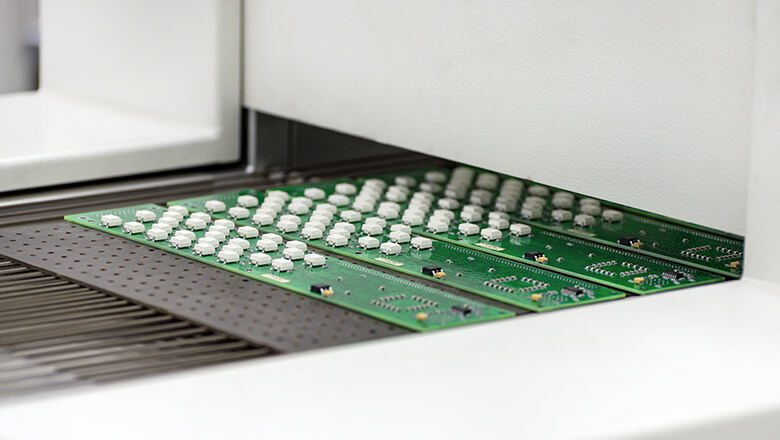

• Reflow Soldering: The entire board is passed through a reflow oven, which melts the solder paste and secures the SMT components onto the surface of the printed circuit.
• Inspection and Testing: After soldering, the boards undergo automated optical inspection (AOI) and sometimes X-ray analysis to spot defects in component placement or solder joints.

The automation of Surface Mount Technology delivers multiple benefits. Manufacturers have substantially reduced product assembly cycles. Automated systems ensure precise control over production processes. Production lines can consistently output products with stable quality. These technological advancements collectively strengthen the electronics manufacturing system. The modern electronics industry has thereby established a more solid foundation for development.

SMT vs. Traditional Through-Hole Technology

Traditional Through-Hole Technology

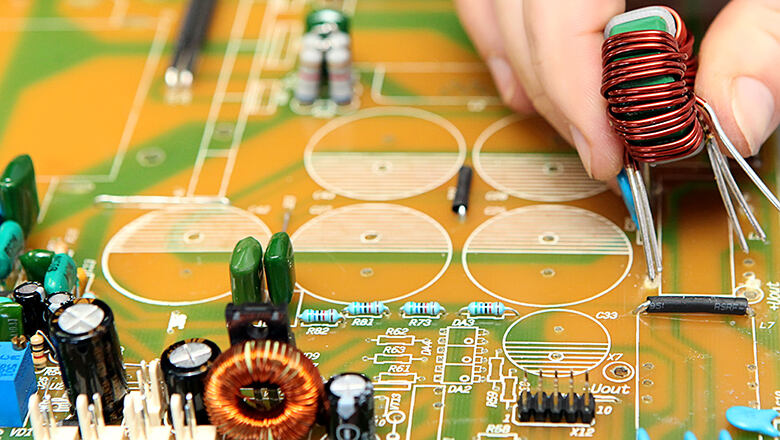

The fundamental principle of through-hole technology lies in inserting component leads through drilled PCB holes and completing the solder connection on the reverse side. This method offers distinct advantages - particularly exceptional mechanical stability - while presenting clear limitations: higher labor costs, greater wiring space requirements, and constraints on product integration density. Given these characteristics, the technology now finds its primary application in large components, critical high-stress locations, and specific scenarios where structural robustness is prioritized over miniaturization.

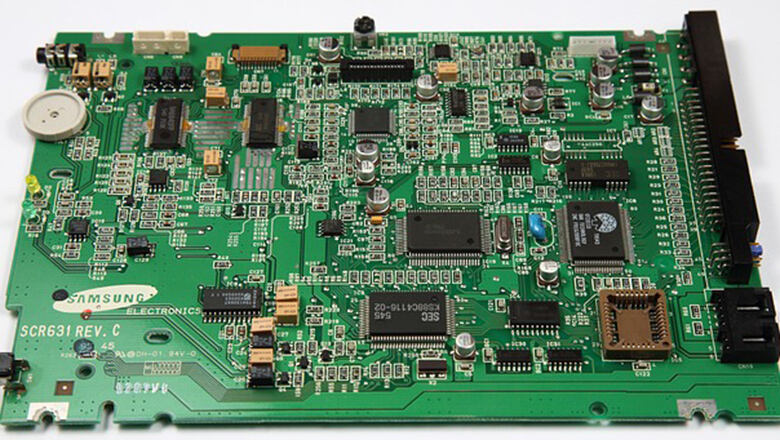

Surface Mount Technology

The key advantage of Surface Mount Technology (SMT) lies in its direct mounting of components onto the PCB surface. This breakthrough in electronic manufacturing manifests in the following critical aspects:

1.Higher Density: SMT allows for more components to be packed onto both sides of the PCB—this is essential for compact consumer electronics.

2.Smaller Size: SMT components are smaller than their through-hole counterparts, enabling miniaturized electronics.

3.Faster Assembly: SMT assembly lines employ automation for quick, precise placement, reducing labor and manufacturing costs.

4.Improved Signal Integrity: Shorter leads mean lower inductance and capacitance, which is critical for high-frequency and high-speed circuits.

SMT vs. Traditional Through-Hole Technology

Key SMT Components and Packages in Modern Electronics

Surface mount devices exhibit diverse packaging forms and dimensional specifications. Engineers refine designs according to the characteristics of different assembly processes and application scenarios. Each packaging solution undergoes thorough verification. Every size specification achieves optimal performance matching.

Common SMD Packages

The SMT Assembly Process: From Solder Paste to Reflow Soldering

The SMT assembly process employs a fully automated production model. This model is designed to increase manufacturing speed for electronic products, enhance production line reliability, and ensure manufacturing precision meets standard requirements. This technological system comprises the following key processes:

• Solder Paste Printing: Solder paste is precisely applied to PCB pads through a stencil. This material serves to temporarily secure components. Simultaneously, it forms permanent connections during reflow soldering, thereby ensuring electrical conductivity between components and the circuit board.The uniformity of solder paste application directly affects the outcome of the technology assembly.

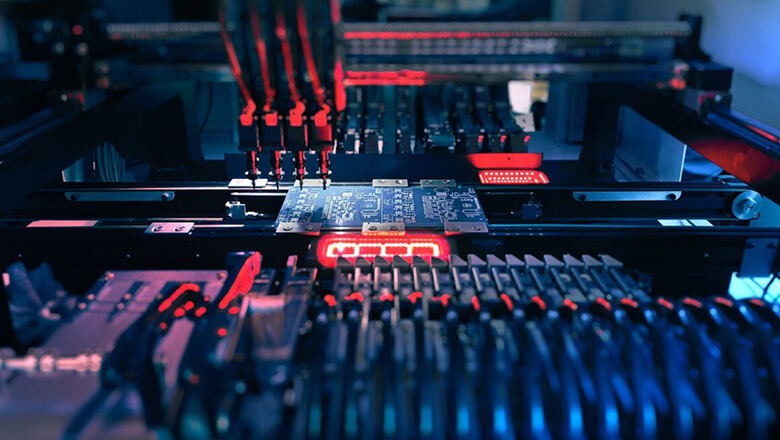

• Automated Component Placement: Modern chip mounters possess high-speed assembly capabilities. This equipment can install dozens of electronic components per second. All components are precisely fixed at designated positions on the circuit board. High-speed vision systems detect component orientation to ensure accurate placement of each element. Process control systems continuously monitor production phases to maintain consistent product quality.

• Reflow Soldering: Printed circuit boards enter the reflow oven to complete the soldering process. The equipment executes precisely controlled temperature profiles. These profiles include preheating, soaking, reflow, and cooling stages. The connections provide both electrical conductivity and mechanical fixation. Proper reflow soldering processes reduce product defects while ensuring signal transmission quality.

• Inspection and Testing: Automated Optical Inspection (AOI), X-ray imaging, and in-circuit testing collectively verify component placement and soldering quality. These inspection methods jointly ensure product reliability. Strict process control is particularly crucial for specialized fields. Medical devices and engine control units are prime examples.

Advantages of Surface Mount Technology in Modern Electronics Manufacturing

Surface Mount Technology demonstrates multifaceted technical advantages. These advantages significantly surpass traditional through-hole mounting methods, making SMT the core process in electronics manufacturing. Modern electronic product production relies on this technology. Its main technical characteristics encompass the following aspects:

• Miniaturization and Density: SMT allows components to be mounted closely together on both sides of the PCB. This miniaturization is why modern electronic devices pack more power and features into smaller spaces than ever before.
• Lower Manufacturing Costs: By automating every stage of the SMT assembly process, costs are driven down, supporting high-volume and low-cost product strategies.
• Superior Electrical Performance: Because SMT components are smaller and have short leads, issues with inductance and capacitance are reduced, making them ideal for RF, high-speed, and signal-critical circuits.
• Versatility: SMT supports a wide variety of electronic products, from large automotive modules to ultra-compact wearables.
• Rapid Prototyping: Faster assembly means design iterations can be tested more quickly, enabling shorter product development cycles.

Addressing Challenges and Limitations in SMT Manufacturing

While SMT is essential for transforming modern electronics, there are unique challenges:

• Thermal Management: Increased density means careful design is needed to manage heat. Use thermal vias, copper pours, and heat sinks in PCB design.

• Repairability: Fine-pitch SMDs and BGAs are challenging to repair. Complex electronic assembly projects must address repairability requirements. Engineers may opt for socket connection solutions. Prototype development phases recommend using larger-sized components. Hybrid assembly approaches can reconcile differing technical needs. This design methodology balances miniaturization objectives. Simultaneously maintains equipment serviceability.

• Mechanical Stress: Surface mount components possess distinct physical characteristics. These components generally have smaller dimensions. They lack the structural support provided by through-hole connections, making them more susceptible to damage in vibration environments. For high mechanical stress scenarios and automotive electronics applications, engineers need to implement targeted reinforcement measures. Structural reliability is enhanced through optimized PCB layout design, underfill encapsulation processes, and selective adoption of through-hole technology.

• Inspection and Testing: Surface mount technology extensively utilizes concealed solder joints such as BGA. These solder joints are situated beneath components and remain invisible. High-end circuit boards must incorporate dedicated test points to ensure reliability in complex assemblies.

Emerging Trends and Automation in SMT

The impact on modern electronics manufacturing from advancing SMT processes and automation cannot be overstated. SMT continues to push the envelope through:

• Increased Automation: Today’s SMT assembly lines use intelligent robotics and process control systems that manage everything from component reels to the finished PCB using adaptive AI for defect reduction and real-time analytics.
• Miniaturization: The size of SMT components keeps shrinking—0201 and even 01005 packages are now standard in wearable, IoT, and mobile electronics.
• 3D Assembly: Innovations like laser direct structuring (LDS) and system-in-package (SiP) allow circuits to be placed not just on the flat surface of the PCB, but also on contoured 3D surfaces and stacked layers. This enhances density and opens new form factors in ultra-compact medical devices and compact communication modules.
• Eco-Friendly Manufacturing: Advanced PCB assembly embraces lead-free solder, recyclable materials, and energy-efficient ovens, aligning modern electronics manufacturing with global sustainability initiatives.

SMT’s Impact on Modern Electronics: Applications & Case Studies

The nature of SMT has revolutionized the electronics industry and everyday electronics manufacturing processes. It has enabled the mass production of:

• Consumer Electronics: Smartphones, tablets, and wearables that fit thousands of SMT components into the palm of your hand—redefining what is possible in personal technology.
• Medical Devices: Miniaturized wireless pacemakers, diagnostic health sensors, telemedicine adapters—all assembled using SMT to deliver life-changing applications with minimal size and weight.
• Automotive & Industrial: From robust control modules to smart sensors and infotainment systems, SMT ensures advanced performance, low manufacturing costs, and high reliability.

Choosing the Right SMT Partner for Modern Electronics Manufacturing

To maximize the benefits SMT offers in modern electronics, it’s vital to select a PCB assembly partner equipped with the latest SMT assembly technologies and process control systems.

Checklist for Selecting an SMT Partner

• Certifications: Choose partners with ISO, IATF, or relevant industry standards.
• Automation Capabilities: Ensure access to state-of-the-art pick and place, reflow ovens, AOI, and X-ray inspection.
• Engineering Expertise: Your partner should assist in design for manufacturability (DFM), rapid prototyping, and advanced surface mount technology assembly.
• Scalability: Look for proven capacity in both prototype and high-volume production.
• Transparency: Demand full process visibility, analytics, and access to production and test data.

How to Stay Ahead with SMT Technologies and Best Practices

In a rapidly changing industry, ongoing education and process refinement are key.

Best Practices:

• Attend Industry Events: Conferences like IPC APEX Expo or Productronica reveal the latest in smt manufacturing, automation, and materials.
• Invest in Training: Continuous process control and technology training for your staff will minimize downtime and errors.
• Embrace Simulation: Use powerful pcb design and simulation tools for signal integrity, thermal management, and DFM analysis.
• Evaluate Process Control: Routinely benchmark your SMT assembly lines’ yield and defect rates against industry standards. Invest in process analytics to detect trends before they become production problems.

Conclusion: The Lasting Impact of SMT on Modern Electronics Manufacturing

Surface mount technology (SMT) isn’t just an assembly process—it is the beating heart of modern electronics manufacturing and the main enabler behind our most innovative electronic products. Every advancement in miniaturization, signal integrity, automation, and even eco-friendly electronics traces back to the ability to reliably mount thousands of components directly onto the surface of printed circuit boards.

SMT allows for faster assembly, flexible PCB designs, and new product categories. The smt assembly process will remain fundamental for next-generation electronics manufacturing, whether building cost-effective high-volume consumer gadgets or mission-critical medical and industrial equipment.
