Flying Probe Test for Circuit Board and PCB Assemblies

Introduction

These days, pcb assemblies are basically the heart and soul of all kinds of advanced electronics. But as circuit boards get more complex and packed with components, manufacturers are running into new challenges when it comes to checking product quality and performance.That’s where the flying probe tester comes in. It’s this really advanced, flexible testing system that’s totally changing how pcb testing is done. The coolest part? It gives you really high test coverage without needing any custom test fixtures.

When use of flying probes in PCB testing prototypes, both small production runs, and even some larger-scale manufacturing. A lot of manufacturers rely on it because it’s accurate, fast, and can easily keep up with design changes.

That said, just like any high-tech equipment, you’ve gotta stay on top of maintenance and repairs to keep it running smoothly.

In this guide, we’ll break down how flying probe testing for PCBs improves product quality, what makes up a flying probe system, how to maintain it properly, and how it stacks up against other testing methodologies like in-circuit test (ICT). Whether you're looking into a new testing setup or trying to optimize what you’ve already got, this guide will give you practical tips to make your circuit board more reliable.

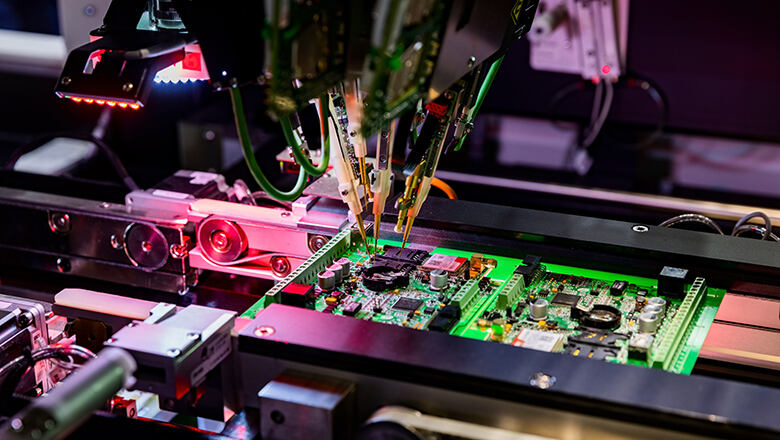

What is a Flying Probe Test?

So, what's a flying probe test? Think of it as a really smart, non-invasive testing method for electronic assemblies especially for printed circuit boards (PCBs).

Here's the basic idea: instead of using those big, clunky in-circuit test machines that need a custom "bed of nails" fixture, flying probe testers use these cool robotic needles that move around on their own. They zip across the board, contact with specific test points to take electrical measurements.

Basically, you've got several of these super-precise probes. They're all independently controlled, so they can each go to different spots on the PCB based on the pcb design files and what needs testing. This testing methodology makes it perfect for new prototypes, small production runs, or any board that gets updated a lot. The biggest advantage? You don't have to build a expensive, dedicated test fixture every single time.

Key features:

• Flying probes access test move around and touch specific test points or vias on the PCB to make electrical contact.
• They run all kinds of checks – looking for opens and shorts, measuring if components are the right value, checking if they're oriented correctly, and even running more advanced functional tests.
• The cool part is, you can use it at pretty much any stage – on a bare board, a partially loaded one, or a fully assembled PCB.
• All the test data gets logged automatically, which is super helpful for quality control and meeting industry standards.

Why Use Flying Probe Testing?

• Fast setup for new designs. You just upload your design files and bill of materials – that's it.
• No need for custom test fixtures. This means you skip the whole waiting and cost for a dedicated test fixture.
• It gets into tight spots. The probes can reach almost anywhere on the board, giving you high test coverage, even in areas that are tough for traditional testers.

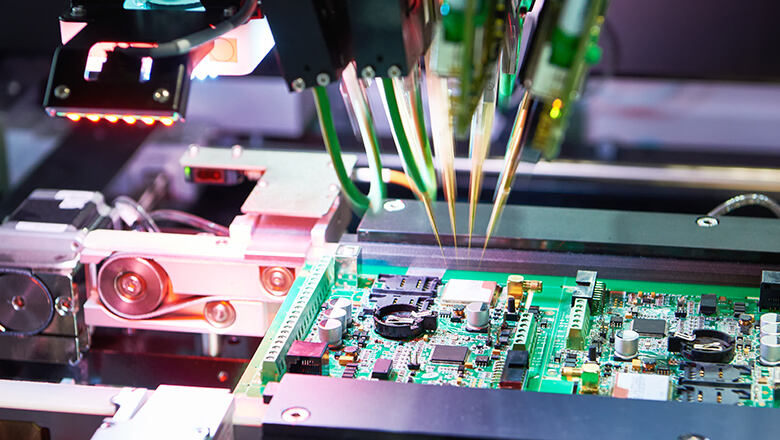

How Flying Probe Testers Work

So, how does a flying probe tester actually run a test? It's all about a carefully choreographed dance of movements and measurements. Here's the typical process:

• First, the import test program – that means loading the latest CAD files, component lists, and circuit layout data into the system.
• Then, the system automatically figures out the best paths for the test probes to automatic probe routing specific spots on the PCB – we're talking pads, vias, and dedicated test points.
• Next, each probe makes gentle but precise contact with its assigned test point. They'll check things like continuity, resistance, capacitance, and voltage to make electrical contact– whatever measurements are needed.
• But it's not just about static measurements. These testers can also do functional testing – they can inject signals, check how the board responds, and even run power-on sequences, similar to what you'd do on dedicated functional test equipment.
• Finally, Test Data Collection - the system automatically collects and stores all the test data for each board. This makes it really easy to track down any issues and verify that everything meets quality standards.

Components of Flying Probe Test System

Types of Flying Probe Test and Test Methods

Flying probe test systems are widely used —they can run all sorts of checks depending on what your board needs and where it is in the production process.

Common types of flying probe test routines include:

• Open/short test: This is the basic one—it finds broken circuits or accidental shorts.
• In-circuit test (ICT):Flying probes can do a lot of the same checks as a traditional ICT system, but with way more flexibility since there's no fixed fixture.
• Functional test: It can actually simulate how the device works, sending signals to different parts of the board to see if it performs correctly.
• Boundary scan:This works with JTAG to do more advanced testing, especially on complex digital boards.
• High voltage insulation test: It applies a high voltage to seek out tiny, hard-to-find shorts or current leaks.
• Component orientation and value test: It verifies that parts like resistors and capacitors are the right type, value, and placed in the correct orientation.
• Power-on test: This powers up the board to see how it behaves under real operating conditions.

Although flying probe testing is extremely flexible, choosing the right test method is determined by the target product, production volume, specific test requirements, and overall manufacturing process.

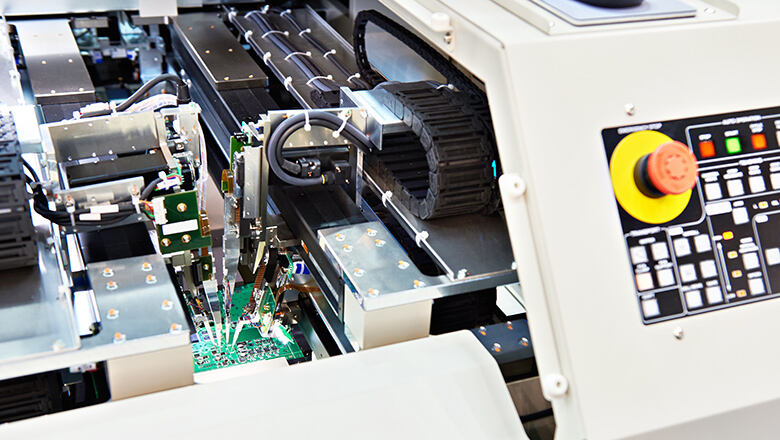

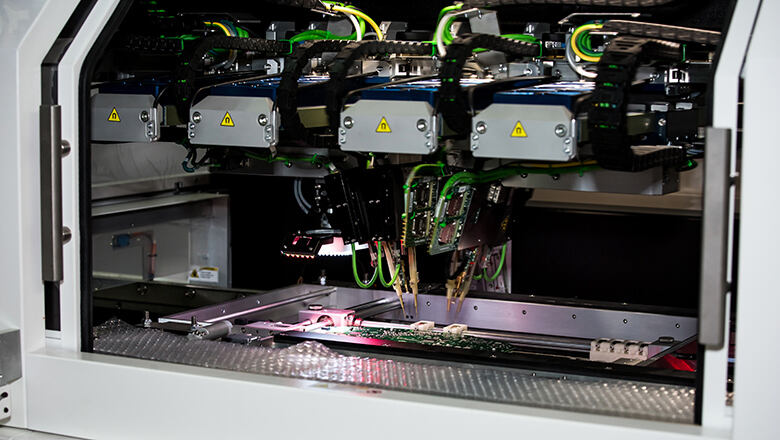

Components of a Flying Probe Test System

Let’s walk through into the main components of flying probe test equipment and explain their roles in detail:

• Probes: These are the super-precise, durable needles that actually touch your board. They have springy or flexible tips to make sure the contact is consistent and doesn't scratch the PCB.
• Probe drive mechanism: This is the machinery—the precision actuators—that drives the probes. They can move each probe independently in 3D space, so they can reach test points even on the most crowded or awkwardly placed parts of the board.
• Control system: This is the combo of software and hardware that runs the whole show. It controls the test sequence, tells the probes where to move, collects all the data, and gives you a screen to interact with.
• Test fixture (when required): The whole point is usually to not need a fixture. But for oddly shaped or flexible boards, you might use a simple, adjustable holder just to keep everything perfectly aligned.
• Measurement subsystem: This is all the internal electronics that do the actual electrical testing—like built-in power supplies, multimeters, and scopes. It's all seamlessly tied into the test program.

Applications of Flying Probe Test

So, where do you actually find flying probe test systems are widely used in all over the place! Their flexibility, great coverage, and quick setup make them a go-to in a bunch of fields.

• Prototyping and NPI: They're perfect for this. You can test a new design almost immediately and easily keep up with all those early design changes.
• Low to medium-volume production: If you're not making millions of units, investing in a custom test fixture often doesn't pay off. Flying probes give you great test coverage without that huge upfront cost.
• HDI and complex boards: They can get into tiny test pads and super-fine-pitch components that a traditional "bed of nails" fixture simply can't touch without costing a fortune.
• Repair/Rework/Field Analysis: Whether it's a failed board from the production line or a unit returned from the field, flying probes are an ideal diagnostic tool. You get accurate testing right away, with no fixture needed.
• Regulated sectors: Sectors like medical, aerospace, and automotive love them because they provide the detailed data and traceability that quality standards demand.

Basically, as products get smarter and lifecycles get faster, the use for this kind of agile testing just keeps growing.so need Applications of flying probe testing continue to expand.

Advantages of Flying Probe Testing

So, why the advantages of flying probe testing are pronounced, especially for modern electronics manufacturing and PCB quality assurance:

• No Need for Custom Test Fixtures: This is the huge one. You skip the expensive, custom-made "bed of nails" fixture. That means you save a ton of money upfront, can start testing way faster, and can tweak your board design without any hassle.
• High Test Coverage:Flying probe test systems are widely used for their incredibly small, dense areas on a board—think tiny vias or closely packed components—that are just impossible for traditional testers to reach.
• Adaptability for Prototypes and Small Batches: It's the go-to solution for new products and small batches where designs are still changing and you need to get to market quickly.
• Contact with Specific Test Points: The probes can move to any testable point on the board, allowing for a really thorough electrical check from one end to the other.
• Reduced Lead Time: Since there's no fixture to build and wait for, you can deploy your test program almost instantly.
• Efficient Testing: The software uses clever pathfinding to move the probes in the quickest way possible, speeding up the whole process without losing accuracy.
• Accurate Test Measurements: Making direct contact with the board means you get clean signals and really trustworthy data.
• Gentle on Assemblies: The probes have a soft touch, which prevents damage and leaves little to no marks, even on delicate components.
• Flexible Test Methods: A single system can often run a mix of different tests—like functional, in-circuit, and boundary scan—saving you from needing multiple dedicated machines.
• Support for Special PCB Types: It works brilliantly with advanced boards like HDI, rigid-flex, or any unusual shapes that would be a nightmare for a standard fixture.

Flying Probe vs In-Circuit Test (ICT) and Dedicated Test Fixtures

Comparing flying probe testers to in-circuit test (ICT) machines and custom test fixtures helps clarify why probe test systems have become so popular.

When to Use Flying Probe Testing

• If you're working with prototype testing, new product introductions, or boards that change a lot, flying probe testing is your best bet. It’s built for flexibility.
• But if you’re running a really very high volume production where all the test points are easy to reach, ICT might still be the way to go—it’s just faster when you’re testing board after board.
• And honestly, a lot of manufacturers don’t even choose—they use both. That way, you get the best of both worlds: the flexibility of flying probe and in-circuit.

Best Practices for Flying Probe Testing and Maintenance

To get the most best practices from your flying probe system and keep your board quality high, here are some practical tips to follow:

Best Practices for Flying Probe

• Regular Maintenance and Calibration: Don't just wait for something to break. Regularly clean, calibrate, and check the probes and the system itself.
• Optimize Probe Paths: Use the software to optimize the paths the probes take. Shorter travel means faster test times.
• Verify Probe Contact: Keep an eye on contact resistance. If a probe is worn out, it won't make good contact, and your readings will be off.
• Document Test Changes: Any time you update a test program or fix the machine, document it. Good records save headaches later.
• Environmental Controls: Keep the area clean and the temperature/humidity stable. This prevents the machine from getting finicky and giving you drift in your measurements.
• Operator Training: Make sure everyone operating the system knows how to use it safely, set up tests properly, and handle basic troubleshooting to minimize downtime.
• Golden Board/Reference Board: Always have a known-good board on hand to verify that the tester is still taking accurate measurements. It's a quick way to spot probe wear or alignment issues.
• Review Test Data:Don't just collect test results—analyze them. Look for patterns of failure or slow shifts in measurements that might indicate a future problem.
• Design for Testing: When laying out your PCB, make sure to include easy-to-reach test points. It makes everyone's job, and every test method, much easier.

Conclusion

So, at the end of the day, flying probe testers have really become the go-to solution for modern electronics makers. They're just so adaptable and accurate.

Whether you're building a first prototype or moving into full production, their biggest perks—no custom fixtures, easy updates, and great test coverage—let you test efficiently, even when your board designs keep changing.

To maximize your investment in flying probe test systems,just remember the basics: keep up with maintenance and calibration, use your test data to spot trends and improve your process, and get professional help for repairs when you need it.

Bottom line? Compared to the old ways that needed expensive fixtures and long setup times, flying probe testing is a clear win—especially for prototypes, small batches, and today's complex, high-density boards.

Frequently Asked Questions (FAQ)

Q: How does flying probe testing ensure complete test coverage for modern PCBs?

A: Basically, since the probes can move to any accessible spot—including tiny vias and micro-pads—they can reach almost every test point on the board. This is super useful for dense HDI designs, where traditional test fixtures just can’t reach everywhere they need to.

Q: Are flying probe testers efficient for high-volume production?

A:It’s true that flying probe testing is generally slower per board than ICT. But you can always run multiple systems in parallel to boost throughput. For really huge volumes with stable designs, many companies still prefer ICT—but they’ll often use flying probes first for prototyping and early validation.

Q: What regular maintenance is essential for probe test systems?

A: The basics: clean and check the probes regularly, keep the measurement system calibrated, stay on top of software updates, and don’t skip those scheduled mechanical check-ups. A solid maintenance routine is key to keeping everything running smoothly.

Q: What are the best practices for flying probe-based PCB testing?

A:Definitely. Always keep a “golden board” on hand to verify accuracy, fine-tune your test programs for efficiency, keep an eye on probe wear, log every repair and calibration, train your operators well, and make sure to run regular system and environmental checks.
