PCBA: A Guide to Printed Circuit Board Assembly of Circuit Boards

Introduction

The assembly and design upgrades and changes of printed circuit boards (PCBs) have led to the increasing advancement of modern technology. Every modern electronic device - smartphones, medical displays, automotive ECUs, etc. - has the presence of PCBA, which enables various technological ideas to be realized. The step of truly transforming a bare PCB into a functional electronic device is called PCBA (Printed Circuit Board Assembly). This complex process involves placing and soldering various electronic components onto a printed circuit board, ensuring that every function promised by your design can be accurately and reliably achieved.

In this article, we will provide a detailed introduction to PCBA technology, custom PCB assembly, basic design techniques, as well as all aspects of inspection, troubleshooting, and selecting suitable PCBA partners. Entrepreneurs, product managers, electronic engineers, and other professions who can master all the details and knowledge of PCBA can ensure that your project develops stronger.

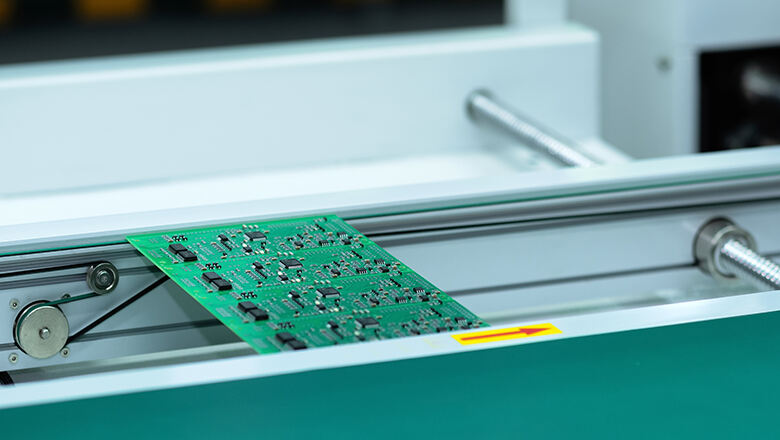

What is PCBA? Understanding Printed Circuit Board Assembly

PCBA Explained

• Printed Circuit Board Assembly (PCBA) refers to the assembly of electronic components onto a bare board using the tag numbers provided by the designer. After completion, most PCBAs are the core of technology, and producers connect microchips, resistors, capacitors, and connectors according to design schematics.

• PCBA involves several precise stages:
  • Placing components directly onto a printed circuit board using automated or manual assembly equipment
  • Applying solder paste to the PCB pads using a stencil, ensuring secure electronic and mechanical connection
  • Heating the board in a reflow oven to solidify connections
  • Inspecting and testing the final product

PCBA vs. PCB: Key Differences

Understanding the distinction between PCB (Printed Circuit Board) and PCBA (Printed Circuit Board Assembly) is foundational:

PCB assembly involves soldering electronic components such as resistors, capacitors, surface mount ICs, and connectors onto the designated positions designed by the designer, turning the exposed PCB into a PCB with components, also known as PCBA. The core of technology products lies in this crucial step in manufacturing; Poor assembly can make product usage extremely harsh, with broken contacts, short circuits, and so on. High quality assembly can make your product worry free in future use.

Types of PCBA

When developing custom pcb assembly solutions, your application determines which type of printed circuit board assembly makes sense.

1. Single-Sided PCBA

• Components on one side of the board only
• Simple assembly process, easy to repair, lowest cost
• Controls, sensors, remote controls

2. Double-Sided PCBA

• Assembly of components on both sides of the board
• More complex process but doubles component density
• Used in modems, industrial electronics, basic communications

3. Multilayer PCBA

• Multiple PCB layers; enables dense, high-speed, or EMI-sensitive electronic circuit design
• Ideal for smartphones, servers, advanced medical and automotive systems

4. Flexible and Rigid-Flex PCBA

• Polyimide or combined FR4 and flex; supports dynamic shapes
• Critical for wearables, aerospace, or medical probes

5. Metal Core and Ceramic PCBA

• Excellent for heat management or extreme environmental needs
• Used in high-power LEDs, automotive modules, radar, and RF devices

Why Printed Circuit Board Assembly is Crucial

Printed circuit board assembly enables designers to implement various ideas. This synthesizes bare PCB into PCBA with components, perfectly achieving various functions desired by designers and providing various technologies.

Key Reasons for PCBA’s Importance

• Enables High-Density Functionality: SMT and HDI PCBA allows enormous complexity in tiny spaces.
• Drive Cost-Efficient, Scalable Production: Automated assembly process lines can handle thousands of assembled boards daily with repeatable quality.
• Supports Customization for Specialized Devices: Custom PCBA enables tailored solutions for unique environments or performance requirements.
• Ensures Reliability and Compliance: Proper process of soldering and automated inspection ensure your PCB assembly meets standards in medical, automotive, and industrial markets.

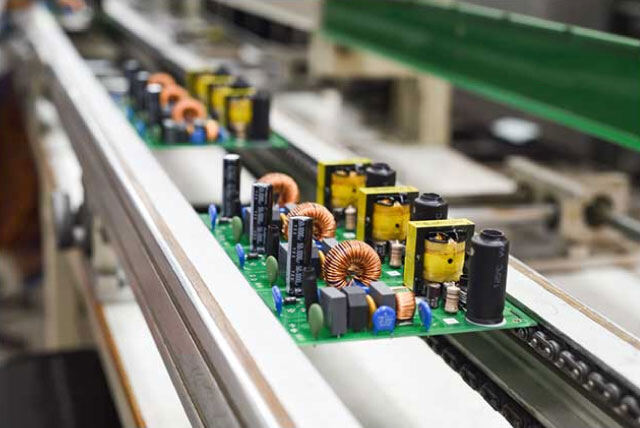

How to Get a Custom PCBA – Step-by-Step Process

The path to a robust, custom PCBA involves more than just design. Here are core steps along with essential tips and best practices.

1. PCB Design and File Preparation

• Use professional CAD tools for circuit design and layout
• Confirm your design for manufacturing (DFM)—run electrical and design rule checks
• Organize Gerber files, detailed BOM (Bill of Materials), and Pick-and-Place files

2. Supplier Quotation and DFM Review

• Submit files to your shortlisted PCBA partner for quoting
• Look for suppliers providing a free DFM/DFT review (for catching PCB holes, pad misalignment, test point coverage, etc.)
• Discuss whether you’ll use turnkey (supplier sources all parts) or consigned (you provide some/all parts)

3. PCBA Prototyping

• Order a small run/prototype to validate assembly process and functionality
• Ensure AOI and functional tests are performed even at the prototype stage

4. Assembly Process and Batch Production

• Finalize design to production: approve any prototypes/changes from your assembler
• Communicate test, QC, and traceability needs—these steps make auditing and later maintenance simpler
• For critical or regulated assemblies (e.g., medical), schedule a first article inspection (FAI)

5. Testing, Inspection, Delivery

The final stage before printed circuit boards leave the assembly facility is rigorous testing and inspection. This ensures your product assembly will deliver reliable performance right out of the gate.

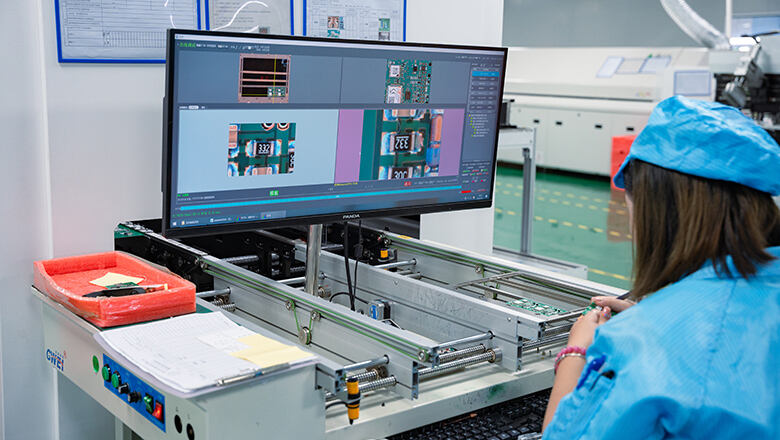

• Automated Optical Inspection (AOI): Every assembled board is scanned—detecting missing, misplaced, or misoriented electronic components, solder bridges, and insufficient solder. AOI is the backbone of quality in modern pcb assembly process lines, catching errors earlier than manual checks.
• X-Ray Inspection (especially for BGAs and HDI pcbs): This technology peers through solder to inspect hidden joints under chips or high-density parts. X-ray inspection is vital for reliable pcb assembly, especially if your design uses advanced surface-mount components.
• Functional Testing (ICT and Power-on): The final product is powered up and subjected to in-circuit test (ICT), checking voltage, current, continuity, and primary communication.
• Burn-In and Environmental Testing: For mission-critical or automotive/industrial PCBA, boards may be run through temperature, vibration, humidity, or thermal cycling to uncover latent defects.

PCBA Manufacturing and Assembly Technologies

Optimized assembly technologies are the key to achieving cost-effective, high-quality pcb assembly projects.

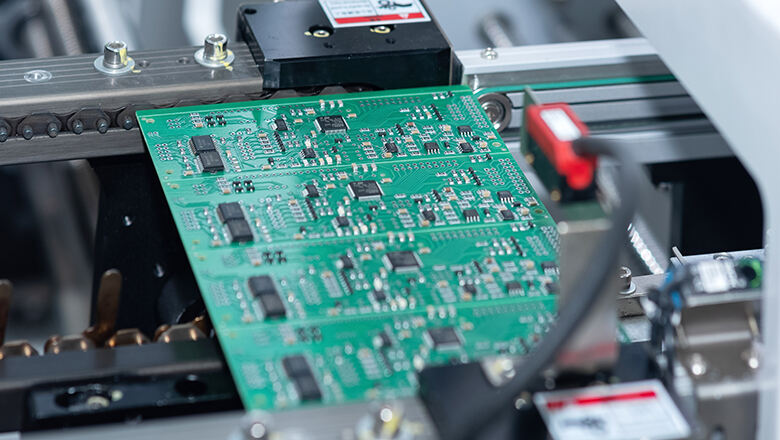

Surface Mount Technology (SMT)

SMT is the cornerstone of nearly all modern pcb assembly:

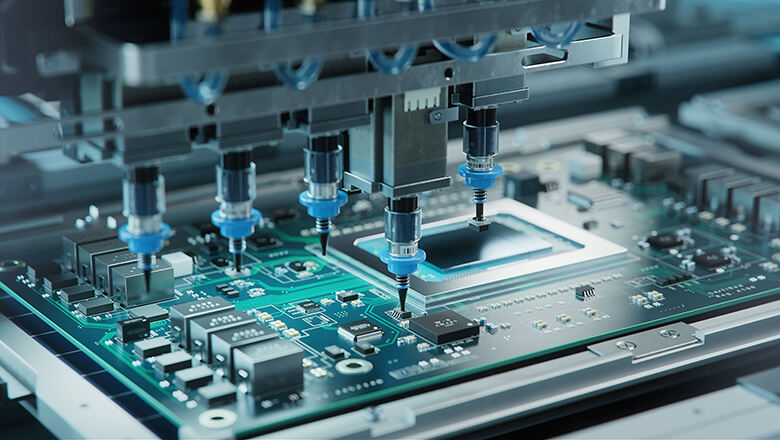

• Electronic components are placed directly onto the pcb surface pads using pick-and-place equipment.
• Solder paste is applied to the pcb using a stencil, and after components are in place, the board is passed through a reflow oven—solidifying joints with high precision.
• SMT enables incredibly dense circuit boards, ideal for smartphones, tablets, small IoT sensors, and medical devices.

Through-Hole Technology (THT) & PTH Assembly

THT involves placing through-hole components into drilled holes in the PCB. The process of soldering or assembling through-hole components is:

• Best for connectors, heavy or heat-dissipating parts
• Critical for military, industrial, and automotive electronics where mechanical stress or vibration is common
• Soldering is traditionally done via wave soldering or selective soldering (for boards with mixed SMT/THT assemblies)

Mixed and Advanced Technologies

• Mixed SMT/THT: Combining the best of both assembly types, common for complex automotive, industrial, or medical devices.
• HDI PCB Assembly: For advanced electronic device applications demanding fine-pitch, multi-layer pcbs.
• Rigid-Flex and Flex Assembly: For non-planar installs, dynamic uses, or extreme ruggedness (e.g., satellites, wearables).
• Metal Core Assembly: Essential in high-power LED, EV charger, or thermal management applications.
• Box-Build Assembly: Incorporating the pcba into enclosures or complete product assemblies, with added subassemblies or wiring.

Key PCBA Process Steps – From Design to Final Product

The pcba process includes key phases that transform a bare PCB into a working electronic circuit:

PCBA Inspections and Quality Control

The intricacies of pcb assembly demand rigorous testing and inspection to ensure the final product meets industry standards and customer expectations:

• SPI (Solder Paste Inspection): Before pick-and-place, SPI systems ensure the solder paste is applied to the pcb surface pads using a stencil at the correct volume/geometry across all pcbs.
• Automated Optical Inspection (AOI): Used after surface-mount components are soldered, ensuring each component is in the correct location, at the right orientation, and properly soldered.
• X-Ray Inspection: Especially vital for BGAs, QFNs, and multilayer/cavity boards where joints are not visually accessible.
• In-Circuit and Functional Tests: These simulate the device’s operation, ensuring the assembled board is fully functional and safe.
• Thermal and Burn-In: For assemblies used in demanding or mission-critical applications, a controlled temperature or power cycle can reveal latent faults.

After PCBA: Cleaning, Coating, and Testing

Proper post-processing safeguards your investment in each pcba assembly:

Cleaning

• Removes all flux residues or ionic/organic contaminants that might damage sensitive circuits over time.
• Especially vital in assemblies intended for high-reliability sectors.

Drying

• Ensures boards are fully moisture-free, protecting against latent failures that can occur after “conformal coating” or in humid environments.

Coating

• Conformal coating or potting is applied for EMI, moisture, vibration, and chemical resistance (as seen in automotive, aerospace, and industrial controls).

Final Testing

• Every batch should include formal documentation (test results, process reports, photos)—essential for track-and-trace, warranty, and compliance needs.

PCBA Design Choices: Processes and Board Types

The type of printed circuit boards, assembly process, and electronic components used must align with your product and industry needs:

• Single/Double Sided Boards: Ideal for low-complexity, repairable, cost-sensitive applications.
• Multilayer HDI Boards: Enable high-frequency, dense, and shielded designs for communications, servers, and mobile electronics.
• Rigid vs. Flex/Rigid-Flex Boards: Rigid PCB is best for robust, stationary use; flex/rigid-flex is necessary for 3D packaging, dynamic, or compact designs.
• Metal Core and Ceramic Boards: Excellent for high-power, high-temp, or RF environments.

Common Challenges in PCB Assembly

No pcb assembly project is without obstacles. Here’s how to prepare:

Component Sourcing Shortages: Always provide approved alternates in your BOM. Select a PCBA partner with global supply chain access and inventory management expertise.

Process Defects (Soldering Issues): Insist on solder paste inspection (SPI) and reflow profiling. Use facility tours or audits—especially if you’ve had issues with solder bridges, insufficient joints, or tombstoning.

PCB Warpage & Layer Alignment: Choose board thickness and copper balancing carefully. PCBs for automotive, aerospace, or industrial must withstand assembly heat and environmental stress without shifting.

Signal Integrity & EMI: High-speed designs and multi-layer pcb assembly demand proper ground plane, shielding, and test point placement from pcb design to final assembly.

Thermal Management in PCBA Manufacturing: For thermal-heavy assemblies (LEDs, power, motor control), specify heat sinks, metal core, or ceramic boards early in the design process.

Quality Documentation & Traceability: Require serialization, full process logs, and first article inspection (FAI) for critical or regulated industries.

Selecting the Right PCBA Partner

When you need to launch a new product or switch to a high-quality PCBA assembly supplier, choosing the right supplier can make your product more efficient. High quality assembly can extend the lifespan of your product while also receiving praise from customers. The partner you choose to handle printed circuit board assembly - from prototyping to mass production - directly affects product quality, time to market, and support throughout the entire product lifecycle.

What to Look for in a Trusted PCBA Partner

Certifications & Compliance

Ensure your PCBA partner holds relevant certifications including ISO 9001, IPC-A-610 (for reliable pcb assembly), and RoHS.

For medical, automotive, and aerospace electronic manufacturing, look for sector-specific credentials (ISO 13485, IATF 16949, AS9100).

Assembly Capabilities & Flexibility

Can your provider reliably handle both SMT and THT assembly processes, as well as rigid, flexible, metal core, and rigid-flex circuit boards?

Are they equipped for both prototype PCB production and high-volume, cost-effective assembly?

Quality Control & Inspection

Does their facility feature advanced inspection (AOI, X-ray, functional testing) and traceability at every step in the assembly process?

Can they demonstrate control of the entire pcba process—from design for manufacturing to product assembly and final board test reports?

BOM and Component Sourcing Strength

Great PCBA partners minimize project delays by sourcing electronic components globally, keeping you informed about EOL/obsolescence, and offering inventory management and component alternates for risk mitigation.

Experienced Engineering Support

A top PCBA partner offers DFM/DFT review, can help optimize your pcba design for manufacturability, and suggests improvements to reduce risk or cost.

Communication, Transparency, and Track Record

Clear communication, real-time project updates, and open analytics on yield, defects, and rework rates are essential.

Ask for case studies on circuit boards or electronic devices similar to your own, and be wary of providers who are vague, slow to respond, or shy away from transparency regarding their assembly process.

Applications of PCBA in Electronic Devices

PCBA transforms the design to final product landscape in nearly all modern sectors. Understanding how PCBA enables growth and innovation in each domain is critical for design and procurement teams.

1. Industrial Electronics Manufacturing

• IoT Gateways, Controllers, Sensors: Rigid and rigid-flex circuit boards, HDI PCBs, surface-mount components (SMDs), and full functional testing enable highly reliable field equipment.
• Power Electronics: Metal core printed circuit boards for efficient heat dissipation in motor controllers, power inverters, and drives.

2. Medical Device PCBA

• Wearables and Implants: Ultra-miniaturized, high-reliability custom PCBA with medical-grade test and coating procedures.
• Diagnostic Equipment: Multilayer pcbs, shielded design, and rigorous inspection ensure accuracy and compliance in life-critical use.

3. Automotive Electronic Assembly

• Engine and Powertrain Modules: Through-hole assembly for ruggedness, mixed SMT/THT for compact but robust control modules, all temperature/burn-in tested.
• LED Lighting & Infotainment: Metal core PCBs and HDI for advanced illumination or cockpit/telematics devices.

4. Aerospace and Military Devices

• Avionics, Telemetry, Radar: Class 3 rigid/flex assembly process, high-speed and shielded signal production, full environmental and thermal stress validation.
• Satellite Modules: Lightweight flexible and ceramic circuit boards passing vacuum and outgassing requirements.

5. Consumer Electronics

• Smartphones, Tablets, Wearables: Multilayer HDI assembly, advanced automated optical inspection, and dense component placement for slim, powerful consumer devices.
• Gaming and Audio Controllers: Reliable PCB assembly for durability and high-performance connectivity.

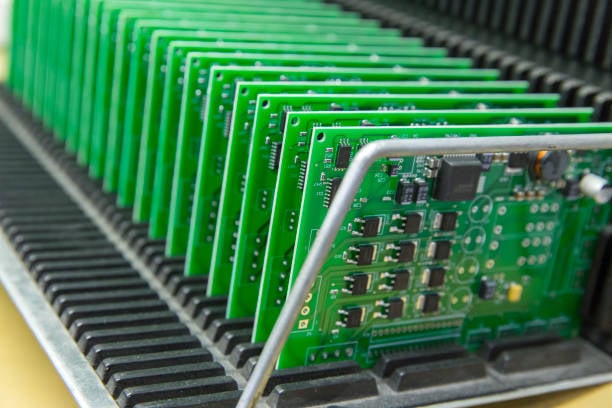

PCBA Use Across Industries

FAQs: All About PCB Assembly

Q: What is the difference between PCBA and PCB?

A: A PCB, or printed circuit board, is an unpopulated board made of substrate and copper traces only. PCBA—printed circuit board assembly—refers to mounting electronic components (like capacitors, resistors, microcontrollers) onto the PCB, creating a fully functional electronic circuit.

Q: Why does the assembly process matter so much for reliability?

A: Faulty solder, placement errors, or incorrect component orientation can mean latent field failures, costly returns, or safety issues. Reliable PCB assembly, with DFM review, AOI/X-ray inspection, and rigorous testing, ensures a robust final product.

Q: Do I always need both SMT and THT?

A: No—many modern boards are assembled entirely with SMT. But THT or mixed-technology assemblies are ideal for products needing mechanical durability, like industrial controls, automotive modules, and some power supplies.

Q: How do you ensure quality for custom PCBA orders?

A: Request DFM review, require AOI, X-ray, first article samples, and insist on traceable documentation for every assembly batch. Good PCBA partners will be happy to provide these.

Q: What’s the key to a cost-effective, high-yield pcb assembly project?

A: Smart design for manufacturing, clear communication with your PCBA partner, fast feedback/iteration loops, and batch functional test—always invest in prototyping to catch issues before large-scale production.

Conclusion

Printed circuit board assembly (PCBA) is the bridge of all current modern technologies, with high-quality PCBA for internal functional output. Design, production, and PCBA processes involve the use of advanced SMT, THT, or hybrid technologies to place various electronic components on printed circuits, with high-quality management to ensure proper soldering, inspection, and functional testing. The transformative innovation of designers can be perfectly met by PCBA, and high-quality PCBA suppliers can ensure the quality, regulatory compliance, and scalability of any electronic device.

PCB assembly - from PCB design, component assembly, soldering process, to testing and inspection - transforms bare PCBs into functional, durable, and high-performance products.

By collaborating with experienced PCBA manufacturers, your products can withstand future tests, extend their lifespan, shorten their time to market, and increase their market share

If you need expert support for your next PCB assembly project, or to discuss the complexity of PCB assembly for your unique product, please contact us immediately for customized consultation.
