Understanding PCB Transistors: Bipolar & PCB Assembly Guide

Introduction: The Heart of Modern Electronics

In the fast-moving world of modern electronics, the transistor remains the undisputed king of all fundamental building blocks. When you examine any electronic device—whether it’s a smartphone, a radio, or an industrial controller—you’re certain to find scores or even billions of transistors integrated into its circuit board. Nowhere is this more apparent than in functions like amplification, signal control, and digital logic, where the transistor’s ability to control the flow of electrical energy has utterly transformed the way we interact with technology.

In the field of PCB design, the core operating principles and wide-ranging applications of transistors represent a key subject of intensive study for many professionals.How do these components demonstrate their core value in various applications such as complete circuit implementation, signal amplification, and switching control? These questions warrant thorough exploration. This guide will provide detailed elaboration on the theoretical foundations, testing methodologies, assembly processes, and practical applications of PCB transistors.

Understanding PCB and Its Components

What Is a PCB?

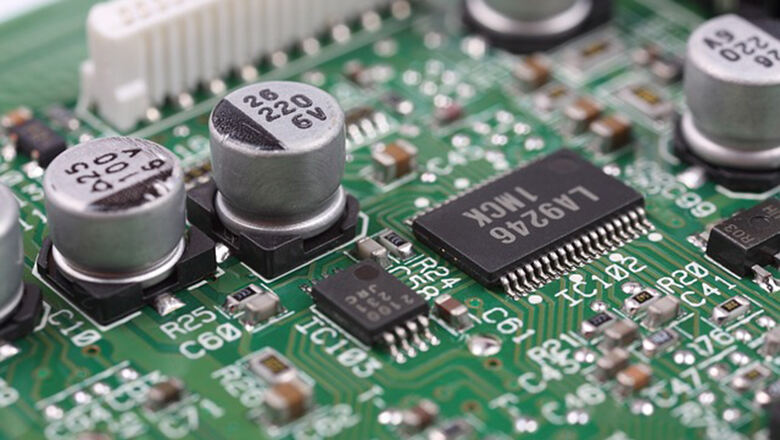

In modern electronic devices, the core function of a Printed Circuit Board (PCB) lies in system integration. It acts as both the "skeletal framework" and "neural network" of the device: on one hand, it serves as the mounting foundation supporting all key components such as resistors, capacitors, transistors, and integrated circuits; on the other hand, it interconnects these components through precisely designed copper traces to form a complete circuit system. This highly integrated architecture ensures stable execution of complex logical operations and efficient processing of data tasks.

Active vs. Passive Components in the PCB Industry

• Active Components: These include transistors (like BJTs and MOSFETs), ICs, and diodes. They require energy to function and can control other flows of current or electrical signals.
• Passive Components: Resistors, capacitors, and inductors do not amplify signals but are crucial in defining the behavior of any electronic circuit.

Transistor Theory: The Foundation of Signal Control

What Makes a Transistor?

The transistor, at its core, is a three-terminal electronic component. Its structure is predominantly made of silicon—a classic semiconductor material—with occasional use of germanium. Thanks to the distinctive physical properties of semiconductors, this compact device possesses the remarkable ability to manipulate electrical signals. Acting as an "intelligent control unit" in the electronic world, it captures typically weak input signals and precisely regulates stronger signals or currents within a complete circuit.

Transistors are mainly divided into two major categories, which are Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs) respectively. The characteristics of BJTs determine their application directions. Their specific application scenarios further highlight their advantageous values. The unique properties of FETs enable them to play a role in other fields. These fields complement the application fields of BJTs, and together they support the design and operation of various complex circuits. Both BJTs and FETs are important components in the transistor family, and the existence of each provides more possibilities for circuit design.

Why Are Transistors Essential in Electronic Circuits?

• Amplification: The ability to amplify weak signals makes the transistor invaluable in radios, audio systems, and sensing applications. In these contexts, transistors function as amplifiers, boosting signals for further processing.
• Switching: In the digital domain, transistors act as switches, toggling circuits on and off—forming the basis for all digital circuits and microprocessors.
• Integration: Billions of transistors are embedded in integrated circuits found in computers, memory modules, and processors.

Types of PCB Transistors: BJT, MOSFET, and More

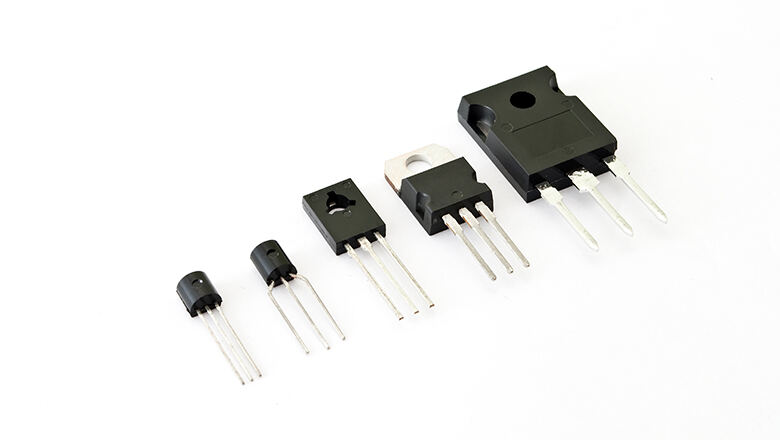

Understanding Different Types of Transistors

In electronic engineering practice, transistor selection is critical and requires accurate judgment based on specific application scenarios. Here are several commonly used transistor types in PCB design and their typical application scenarios:

• Bipolar Junction Transistor (BJT): An older but widely used type for amplifying or switching signals, available in npn and pnp variants.
• MOSFET Transistors: Ideal for fast-switching and low-power control; these dominate the modern PCB industry—especially in integrated circuits and microprocessors.
• JFETs (Junction Field Effect Transistor): Known for extremely high input impedance and stable amplification in analog circuitry.
• Power Transistors: Designed for high current and voltage; common types include both BJT and MOSFET power transistors.

Common Types of PCB Transistors

Bipolar Junction Transistors (BJTs): Structure and Function

In various circuit application scenarios, Bipolar Junction Transistors (BJTs) have always been fundamental and indispensable components on Printed Circuit Boards (PCBs). BJTs possess a stable application status, which is reflected in the core role they play on PCBs. PCBs serve as key carriers for various electronic devices, and BJTs perform irreplaceable basic functions on these carriers. When designers engage in the design of switching circuits or analog circuits, they often give priority to selecting BJTs. This choice is based on sufficient grounds, which lie in the reliability and applicability of BJTs in these fields. Such reliability and applicability have been verified through long-term practical experience. The unique properties of Field-Effect Transistors (FETs) enable them to function in other fields. These fields complement the application fields of BJTs, and together they support the design and operation of various complex circuits. Both BJTs and FETs are important components of the transistor family, and the existence of each provides more possibilities for circuit design.

BJT Structure

• Three terminals: Emitter, Base, Collector.
• Charge carriers: Both electrons (negative charge) and holes (positive charge) control the device (thus "bipolar").

BJT types:

• NPN transistor: When the base is made positive relative to the emitter, current flows from collector to emitter.
• PNP transistor: The opposite—here, current flows from emitter to collector when the base is negative.

How BJTs Work

• In a bipolar junction transistor, a small current at the base permits a much larger current to flow from collector to emitter.
  • In an NPN transistor: current flows from the emitter to the collector when the base is positive.
  • In a PNP transistor: current flows from emitter to collector when the base is negative.

BJTs as Amplifiers and Switches

• Amplification: Small changes in base current result in large collector-emitter current changes, allowing the transistor to amplify signals—central to audio electronics and sensor circuits.
• Switching: When the base is forward biased, the device turns "on" (saturation); when reverse biased, it turns "off" (cutoff)—critical in digital circuits.

MOSFET Transistors and Their Roles

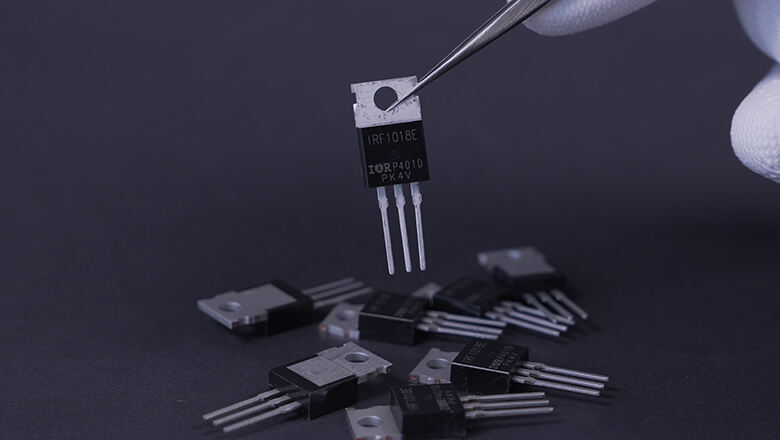

What are MOSFETs?

In the field of circuit design, the Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) provides engineers with an ideal solution. This transistor operates on a voltage-controlled mechanism, requiring negligible drive current during operation while achieving high-speed signal switching capabilities.

Structure

• Source, Gate, Drain: Gate controls conductivity between source and drain via electrostatic potential.
• Excellent in switching supply rails, pulse width modulation (PWM), and high-frequency applications.

Types:

• N-channel (NMOS): Most common for switching grounds and loads in PCBs.
• P-channel (PMOS): Useful for switching positive rails.

Why Use MOSFETs?

• Digital Circuit Dominance: MOSFETs are central to integrated circuits, microprocessors, and RAM because millions can be packed into a single chip, switching rapidly with minimal power loss.
• Power Efficiency: In switching power supplies and battery-powered devices, MOSFETs’ low on-resistance ensures less heat and higher efficiency—a mainstay in modern electronics and power management.
• Versatility: Suitable for high-frequency applications, pulse circuits, and logic-level switching, making them one of the most common types of transistors in pcb assembly.

Other Types of PCB Transistors: PNP, NPN, and Power Transistors

Apart from the classic bipolar and MOSFET families, let’s look at several different types of transistors utilized on circuit boards.

NPN and PNP Transistors

• NPN Transistor: Used for “low-side” switching; widely deployed where the emitter is linked to ground.
• PNP Transistor: Used for “high-side” switching, emitter connects to positive rail; triggered by pulling base voltage below emitter.

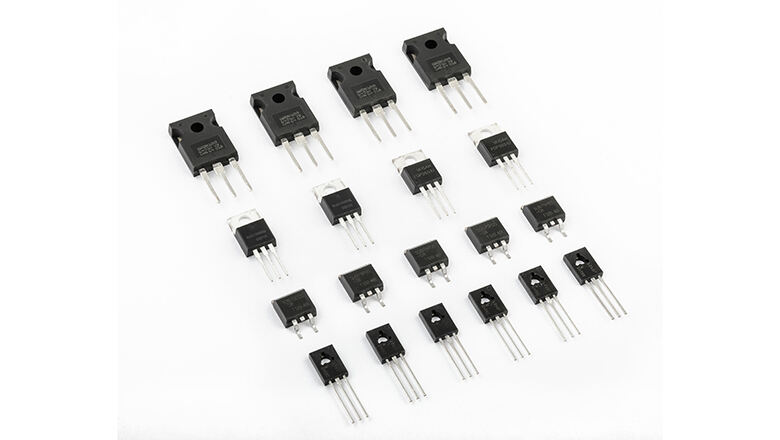

Power Transistors

• Role: Designed to handle significant current and voltage, dissipate heat, and amplify or switch loads like motors and power LEDs.
• Packages: TO-220, TO-247 through-hole, or large format SMD.
• Materials and Mounting: Not just silicon—sometimes, special semiconductor material like silicon carbide (SiC) is used for high temp/power designs.

Other Specialized Transistor Types

• Darlington Transistors: Pair two BJTs in one package for extremely high current gain.
• IGBT (Insulated-Gate Bipolar Transistor): Hybrid of MOSFET and BJT—used in industrial inverters, welding machines, and induction cookers.

Comparison at a Glance

Transistor Function in Electronic Circuits

Transistors literally enable all the logic, memory, and amplification in a complete circuit or integrated circuit chip. Let’s break down the essential roles:

As Amplifiers

• In audio equipment, BJTs and JFETs are used to amplify signals from microphones, guitars, and even small sensors.
• In analog front ends for data acquisition, transistors function as low-noise preamplifiers, ensuring signals are strong and clear before digitization.

As Switches

• MOSFETs and BJTs turn on/off current to LEDs, motors, or any output device, executing commands from a microcontroller in a digital circuit.
• In circuit protection, transistors quickly disconnect loads when overcurrent conditions are detected by smart controllers.

For Signal Conditioning

• Removing noise, buffering between high- and low-impedance circuit stages, and controlling frequency response in filters and oscillators.

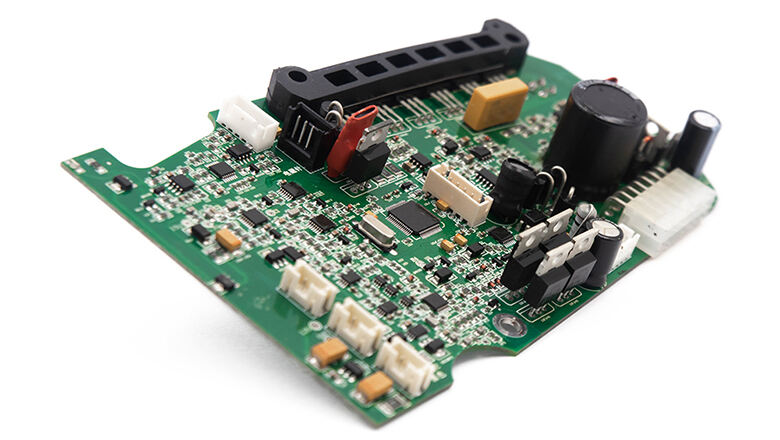

PCB Design and Assembly: Integrating Transistors Effectively

PCB Design Considerations

• Correct Placement: High-current transistors should be near their loads and power sources with thick traces or large copper pours to dissipate heat.
• Thermal Management: Use heat sinks, thermal vias, or copper fill zones under the package for power transistors.
• Signal Integrity: Shield sensitive nodes (gate/base terminals) from noisy digital signals in mixed-signal PCBs.

PCB Assembly Best Practices

• Solder Quality: SMD and through-hole transistors both demand perfect joints. Avoid cold solder or lifted pads, which can create intermittent faults.
• Orientation: Pay attention to the specific transistor’s pinout (B/E/C or G/D/S) and always compare with the silkscreen and datasheet before soldering.
• Breadboarding: During prototyping, use sockets or header pins for easy swapping during circuit testing.

Testing PCB Transistors: Methods and Best Practices

Thorough testing of PCB transistors is crucial for robust designs.

In-Circuit Testing

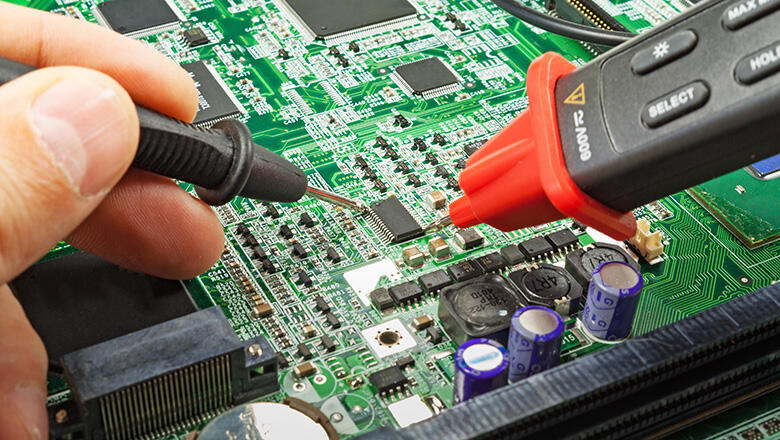

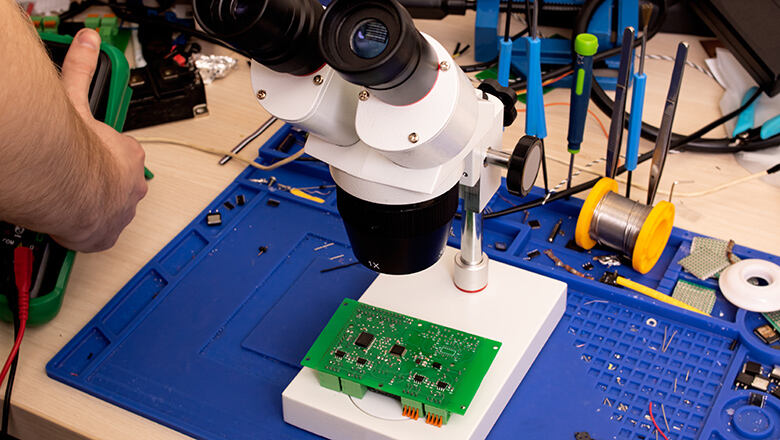

• Multimeter Testing: Use diode mode to check the junctions in a BJT; expect about 0.6-0.7V drop base-emitter and base-collector for a healthy transistor.
• Verify With Surrounding Circuit: Sometimes, resistors or parallel paths affect results; lifting a leg off the board or using a dedicated tester may be necessary for ambiguous cases.

Out-of-Circuit Testing

• Curve Tracer: Provides full I-V curves to analyze every part of the transistor theory curves for health and consistency.
• Transistor Tester: Automatically detects type, pinout, and whether your part is an NPN, PNP, MOSFET, or unknown.

PCB-Level Diagnostics

• Thermal Camera: Spotting a hot transistor during running conditions points to excess power or improper control.
• Oscilloscope: Visualize how signals change at the transistor terminals in real time, confirming proper switching/amplification.

Best Practices

• Always document specific transistor failures for trend analysis (are several failing in the same zone? Is there a layout or power supply issue?).
• Include test points for key transistor pins—this streamlines maintenance, especially in fielded products.

PCB Manufacturing and the Role of Transistors

In the printed circuit board manufacturing process, transistor assembly, soldering, and inspection processes are crucial for quality control, and their execution level directly affects the reliability of the final product.

Steps Involving Transistors

• Placement: Pick-and-place machines accurately seat SMD transistors; THT units are manually inserted or robotically handled in high-volume.
• Soldering: Reflow ovens (SMT) or wave soldering (THT) solidify connections, ensuring stable electrical and thermal flow.
• Inspection: Automated inspection checks for correct orientation, full solder coverage, and part markings.

Quality Control

• AOI machines read transistor model numbers and cross-check for exact part placement.
• Functional Testing applies known signals and voltages to confirm correct amplification and switching behavior.
• Final Test ensures the complete circuit functions as designed, with emphasis on the different types of transistors deployed for unique roles.

Common Issues and Solutions with PCB Transistors

Common Failure Modes

• Thermal Overload: Solution: Improve copper pour, heat sinking, use higher-rated transistors, and optimize layout.
• Incorrect Placement/Polarity: Solution: Double-check orientation, match to silkscreen and datasheet.
• Poor Solder Joints: Solution: Rework solder, inspect with magnification.
• Parameter Drift (Aging): Solution: Proactive maintenance and regular testing PCB transistors.

Conclusion: Future Trends in the PCB Industry

The global society is increasingly reliant on advanced electronic technologies. The deepening of this reliance constitutes a prominent trend. This trend exerts a direct influence on transistors, rendering them more and more important. Transistors are key components of electronic devices and also indispensable elements on every Printed Circuit Board (PCB). The various characteristics of transistors themselves play a decisive role. These characteristics directly determine the operational efficiency of the Printed Circuit Board and also directly determine the overall performance of the electronic device.

Bipolar Junction Transistors (BJTs) are fundamental components in circuit systems. Bipolar Junction Transistors play a crucial role in numerous specialized technical fields, including the communication field, measurement and control field, and medical electronics field. Bipolar Junction Transistors possess a great many unique properties. These unique properties not only make Bipolar Junction Transistors indispensable components in various circuit designs, but also make them the ideal choice in the eyes of designers.

• Integration: Modern ICs now incorporate both BJTs and MOSFETs for optimized performance, merging the best traits of both types of pcb transistors within a single integrated circuit.
• Efficiency: Emphasis on low-loss, high-switching-speed, and low-leakage devices is key as portable electronics and IoT sensor nodes become ubiquitous.
• Testing and Reliability: Rigorous approaches to testing pcb transistors—including automation, AI-driven test algorithms, and predictive fault analysis—are setting new PCB manufacturing standards.
• Advanced Materials: Wider-bandgap semiconductors like SiC and GaN are finding their way into high-power pcb assembly, revolutionizing everything from power supplies to RF and automotive applications.
• Design Automation: Cutting-edge pcb design tools now assist in real-time simulation of transistors function, signal integrity, and thermal profiles, improving reliability and reducing time to market.
