Understanding PCB Rulers: Your Ultimate Guide to Precision and Productivity

Introduction

In the world of electronics, everyone's chasing the same goal: making things smaller, faster, and more efficient. It doesn't matter if you're a professional engineer building mission-critical gear or a hobbyist—you need to be precise. And that's where the humble PCB ruler comes in. It might look simple, but this little tool is a secret weapon for anyone designing or building circuit boards in the PCB design and assembly process.

So, what makes it so special? Well, a PCB ruler isn't your average ruler. it’ just an ultimate guide. Sure, it measures length, but it's really a reference data. It's covered in essential info: standard component sizes, trace width guides, resistor color codes, and more. It lets you do quick checks, make sure your designs meet industry specs, and decide on component placement in a snap—all while sitting right there on your desk.

In this ultimate guide, we're going to break down everything about the PCB ruler. We'll show you all its cool features, how it can make your projects better, and why it absolutely deserves a spot in engineer and hobbyist’s toolbox. Ready to see how this simple tool can speed up your workflow like it canquickly demonstrate the pcb ruler features and measurements, cut down on mistakes, and just make your life easier—whether you're bread boarding your first idea or managing a full production run?

Let's dive in

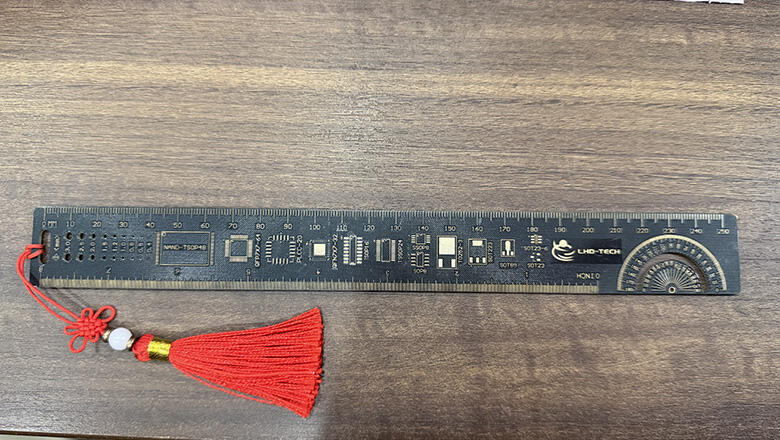

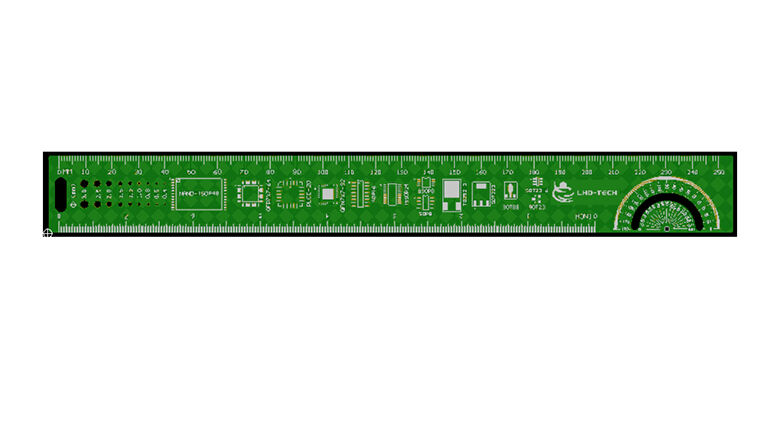

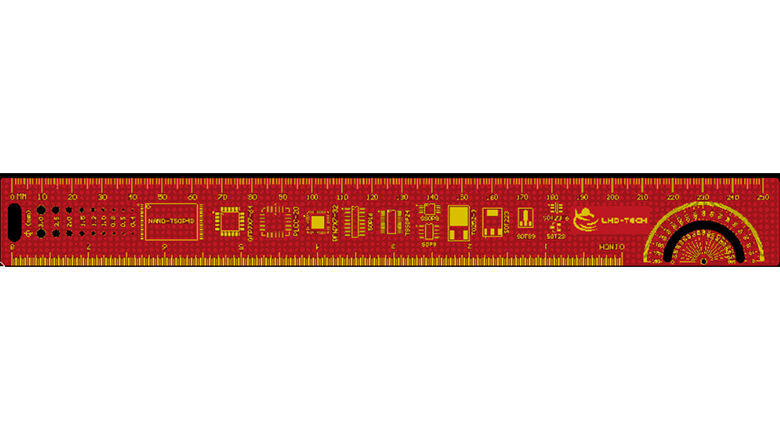

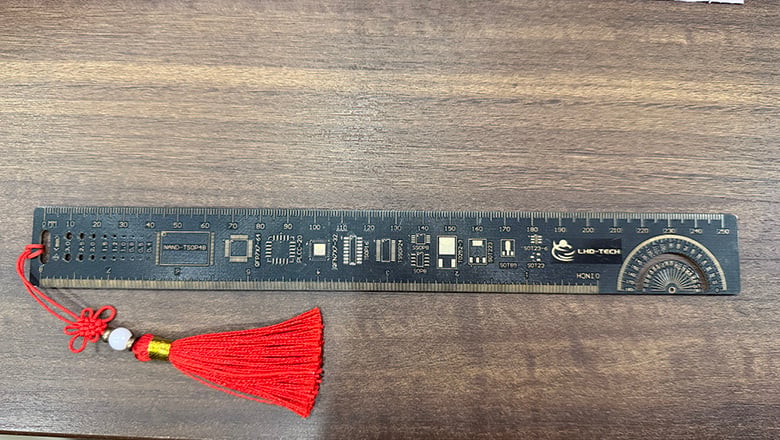

What Is a PCB Ruler?

So, a PCB ruler – it's not your average school supply. This is a specialized measuring tool made specifically PCB design and manufacturing.Think of it as a multi-tool for electronics. Unlike regular or plastic rulers, a PCB ruler packs in all the essential reference charts you need for designing and building printed circuit boards (PCBs) right onto its surface.

Defining the PCB Ruler: More Than a Measuring Tool

PCB rulers typically is a way more than just inches and centimeters. It's like having a cheat sheet in your hand, featuring:

• Footprints of common electronic components: so you can visually check if a surface-mount or through-hole component will fit.
• Resistor color codes: On-ruler reference charts for decoding resistors on the fly.
• Trace width guidelines:which tells you how thick a copper line needs to be to handle a certain amount of current without burning up.
• Drill and via size charts: To make sure your design doesn't use a hole size that's impossible or too expensive to manufacture.
• Key standards and formulas: Like current carrying capacity, pad sizes, or component clearance.

Features and Benefits at a Glance:

• This thing lets you check component measurements and placements right away.
• It's built with industry standards, so you naturally start designing the right way.
• Saves you from jumping between screens or digging through data sheets all the time.
• It’s like an all-in-one reference—makes your whole workspace way more efficient.

Most high-quality PCB rulers are made from FR4—that’s the same fiberglass material used in actual circuit boards. So they’re tough, heat-resistant, and feel just like the real thing.You might also find some made from aluminum or sturdy plastic—those are usually more budget-friendly, great for students or starter kits.

PCB Ruler vs. Ordinary Rulers

Think about a regular ruler—it's a one-size-fits-all tool. A PCB ruler, though, is engineered for total accuracy. It's packed with precise markings, outlines of components, and handy features that just make the workflow smoother for engineers and hobbyists building circuits.Like, check this out: a PCB ruler has things like...

• Guides to help you alignIC pin and SMD pads.
• Visual hints for component placement design correctly.
• Measurements that are spot-on with PCB industry standards.

Why Every Engineer and Hobbyist Needs a PCB Ruler

In the world of PCBs, engineers and hobbyists they are all aiming for the same goal: boards that are made right, on time, and without breaking the bank. That's why nailing the details at every step is so crucial. Whether you're a seasoned pro or just getting started, a PCB ruler is one of those tools you really don't want to skip.

At all event you need to consider how optimize your designs and the manufacturing process:

• It stops mistakes early. By giving you precise measurements, it helps you Measurement accuracy before you even send the design off. That can save you from expensive do-overs later.
• It keeps your board on spec. It ensures your design fits all the necessary electrical and physical rules—things like the size of SMD pads, trace width, and the spacing between them.
• It helps with placement. The built-in guides make it easy to position ICs and connectors perfectly every time.

Reference Data at Your Fingertips

When seconds count and clarity is everything, using a PCB ruler means you can:

• You can quickly measure parts, verify component libraries footprints, and make sure your solder pads are the right size.
• It gives you instant access to all the essential charts, standards, and formulas you need for designing and assembling boards. It's a huge time-saver—way faster than stopping to look everything up online or in a book.

Features and Benefits for Every Project

• It helps you figure out how wide your traces need to be to handle different amounts of current, check your circuits electrical current without overheat.
• It's like a physical checklist to make sure your design follows industry rules, like the IPC-2221 industry standards.
• It works for any project, from simple single-layer boards to complex multi-layer ones.

Optimize for Workspace and Efficiency

The PCB ruler is an all-in-one tool that cleans up your desk. It puts all the essential info right at your fingertips, so you can stop digging through charts and just focus on your design.

Cost-Effective and Reliable

Factory mistakes cost a fortune. Spending a few bucks on a PCB ruler saves you a ton by catching errors early, making sure more of your boards work the first time, and guaranteeing your design is both functional and easy to produce.

PCB Ruler Features and Measurements: The Ultimate Guide

Don't let the name fool you—PCB ruler features are packed with that go way beyond simple measurements. Here's a look at what makes it so useful:

Comprehensive Measurement Scales

• Metric (centimeter, mm) & Imperial: It's got you covered with both metric (cm, mm) and imperial units, so it doesn't matter where you're from or what standard you're working with.
• Fine-pitch guides: For tricky SMD and IC chips, it has specialized guides for super small pitches like 0.5mm and 0.65mm. It's a real game-changer for detailed work.

Physical Reference Data

• Real-size component placement patterns: See exactly how your SMD and through-hole parts will look and fit before you even place them in your design.
• Alignment guides: Tackle complex components like BGAs, connectors, and power devices with confidence using the etched-on guides.
• Common pad & via sizes: Quickly reference standard diameters to speed up your layout and make spot-checking in reviews super fast.

Essential Reference Charts

• Resistor color codes:Quickly decipher resistor values, even if the printed numbers are unreadable.
• Current carrying capacity: Instantly see your trace width need to be to handle different amounts of current.
• Drill/via charts:Never guess again—it has all the standard hole sizes listed in both mm and inches.
• Resistor color codes: Some high-end models even include QR codes or links to download ready-made CAD footprints.

PCB Ruler Features for Design in Gerber

• Gerber format files: It helps you preview what your manufacturer will see in your Gerber files, catching mistakes early.
• Alignment Grids & Marks: Use the printed grids and fiducials to precisely align elements in your design software.

Durable Materials and Readability

• Tough Materials: Made from durable FR4, aluminum, or clear acrylic for long-term use.
• Permanent Markings: Silkscreen or etchings resist wear, chemicals, and won't fade.
• Crystal Clear: High-contrast labels are easy to read, even in poor lighting.

Multi-Purpose Functionality

• Soldering practice pads: Includes pads perfect for beginners or anyone improving their skills.
• Test trace channels: Features test traces to practice continuity checks with a multimeter.
• Custom sections:Advanced models can be branded with company info or quick-access support codes.

How to Choose a PCB Ruler

With so many options on the market, designers and manufacturers need to consider several factors to select the perfect PCB ruler:

Need to Consider

• Material: FR4 gives you the real feel of an actual circuit board. Aluminum is a tough but lighter option, while plastic is great if you're on a budget or teaching a classroom.
• Features and Benefits: Don't just get a measurer—get a multitasker. The really useful ones pack in trace width tables, component footprints, angle guides, and even practice solder pads. These are the features that will save you time every day.
• Readability: This is key. Make sure the numbers and markings are bold, clear, and won't rub off. If you can't read it easily, it's not worth your money.
• Size/Workspace Fit: Be practical. Grab a ruler that fits comfortably in your hand and on your desk alongside your projects. The common sizes are 10cm, 15cm, and 30cm—think about what you'll use most.
• Durable Materials: Your ruler should be tough. It needs to handle the daily grind—heat from your soldering iron, the occasional chemical splash, and just being knocked around. For High-quality professional use, you can't go wrong with FR4 or anodized aluminum. For lighter use or teaching, acrylic or plastic will do the job just fine.

Determine the Appropriate Features for Your Workflow

When looking to choose a PCB ruler, evaluate:

• Reference Data: Does it have the stuff you'll actually use, like trace width tables or common footprints?
• Component Placement: Are the most common part sizes, like 0603, 0805, or DIP packages, printed on it?
• PCB Design and Assembly: Does it include handy charts for current capacity, resistor codes, and standard pad sizes?
• IC Pin and Alignment Guides: Does it have guides to help you place and measure IC pins accurately?
• Workspace Suitability: Is it a convenient size for your workbench and the kind of boards you usually design?
• Readability: Can you easily read the markings in your workshop lighting?
• Design in Gerber: Are there any features that help you double-check what your final exported design files will look like?

Checklist for PCB Ruler Features

Using a PCB Ruler: Practical Examples and Best Practices

Engineers and Hobbyists: Everyday Scenarios

Basically, everyone from big tech companies to hobbyists at home can get their projects done faster and with fewer mistakes using a PCB ruler.

For Engineers

• Run a design review: Before you send your design off to be made, you can use the ruler to quickly see if your board layout fits the manufacturer's panel requirements.
• Prototype optimization: Lay the ruler right over a printout of your design files. This lets you double-check that the physical size and spacing of connectors, switches, and other parts are actually correct.
• Minimize DFM-related delays: Use the rules and data printed on the ruler to spot basic design mistakes yourself. Catching these early saves you from the cost and hassle of having the factory reject your files.

For Hobbyists

• Surface-mount soldering practice: Use the SMD pads on the ruler to hone your surface-mount soldering skills and see how good your technique really is.
• Measure component size: Place real components like resistors or chips right onto the printed footprints to instantly verify their size and orientation.
• Plan Power Lines: Before adding a new power-hungry part, quickly check the ruler’s current chart to pick a trace width that won’t overheat or damage your board.
• resistor color codes: Use the built-in color code chart to identify resistors on the spot—no need to fumble with your phone.

Best Practice: Overlay Method

Printed Circuit Board designers often print their board layouts at actual size and then lay the PCB ruler on top. This lets you visually check if your footprints, pads, and traces match what you expected. It’s super helpful for complex, crowded designs or when switching manufacturers, making it easy to confirm you’ve met their specific size rules.

Designing a Custom PCB Ruler

Custom PCB rulers are an exciting way for companies, educators, and makerspaces to reinforce standards, branding, or educational value.

Steps to Develop Your Custom One

• Determine the Appropriate Reference Data:

Start by asking: what do my users look up all the time? Focus on the most common footprints, charts, and measurement guides they actually need.

• Select Durable Materials:

FR4 is the go-to for a realistic feel and it can handle heat.

Aluminum is tough and light, perfect for a tool that gets thrown in a bag.

Plastic is the most cost-effective, ideal for freebies or conference swag.

• Optimize for Readability and Functionality:

Use bold, high-contrast printing that's easy to read. Group related features together logically so finding what you need is quick and intuitive.

• Incorporate Company Logos or Custom Branding:

Great for giveaways at conferences or as part of in-house quality kits.

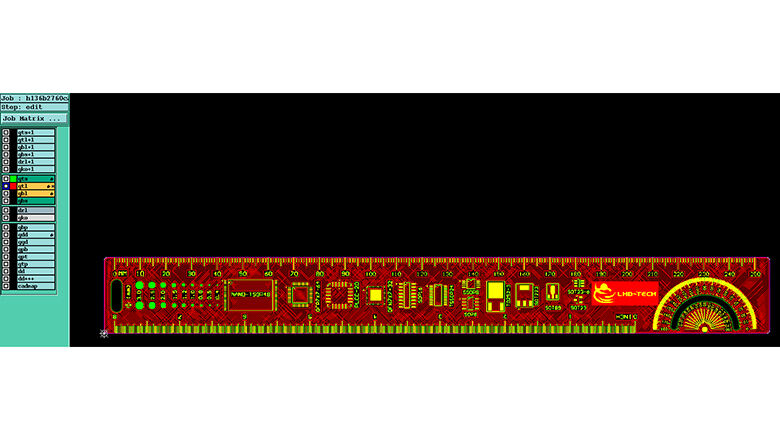

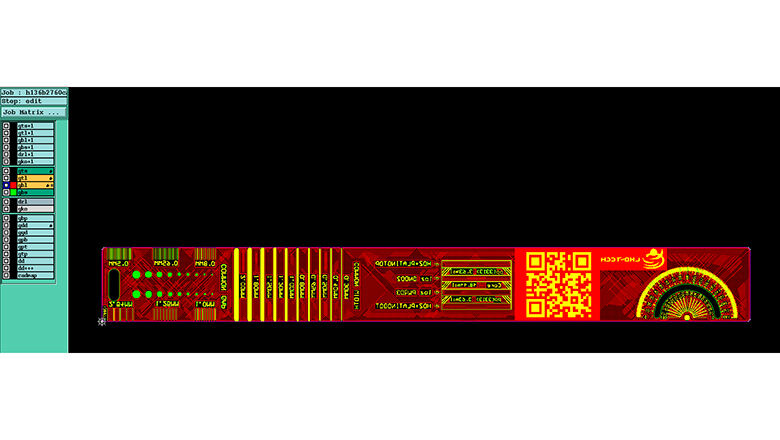

• Design Your Ruler in CAD, Export in Gerber:

Create your ruler using the same CAD software you use for actual boards (like KiCad or Altium), and then export the design files in Gerber format for manufacturing.

• Quality Control and Iteration:

When you get the first prototype, the most important step is to check it for accuracy. Measure it against a known standard to make sure the scales are perfect before you place a big order.

Trends and Innovations in the PCB Industry

PCB rulers reflect broader industry innovations:

• Modular/Expandable Ruler Kits: Imagine rulers you can snap together like LEGO®. Perfect for a classroom or team, letting you build a custom reference tool with just the footprints and data you need.
• Eco-Friendly Materials: We're seeing a move towards greener materials, like recycled FR4, biodegradable plastics, and inks that are better for the planet.
• Hybrid Digital Tools: What if your ruler could talk to your computer? By adding a simple QR code, NFC chip, or Bluetooth, you could instantly link the physical tool to online calculators, component libraries, or your design software.
• PCB Ruler Business Cards: Forget paper cards. The ultimate tech networking move is a functional PCB business card. It's a mini-ruler with key references and your logo, giving a potential client something truly useful to remember you by.

Conclusion

This ultimate guide demonstrates that a PCB ruler is much more than a simple measuring tool. It's a compact, hardworking tool that gives you precision, reference data, and workflow support—all in one durable piece.

By packing in must-have features like footprints, trace guides, and cheat sheets, it helps anyone—from students to experts—design and assemble boards faster and with fewer mistakes. It’s not just about getting the job done—it’s about building better habits and better boards.

No matter which ruler you use—classic FR4 or a custom branded one—it all comes down to this: having the right tool at hand saves time, cuts down on errors, and makes sure your PCB is truly ready for the real world.
